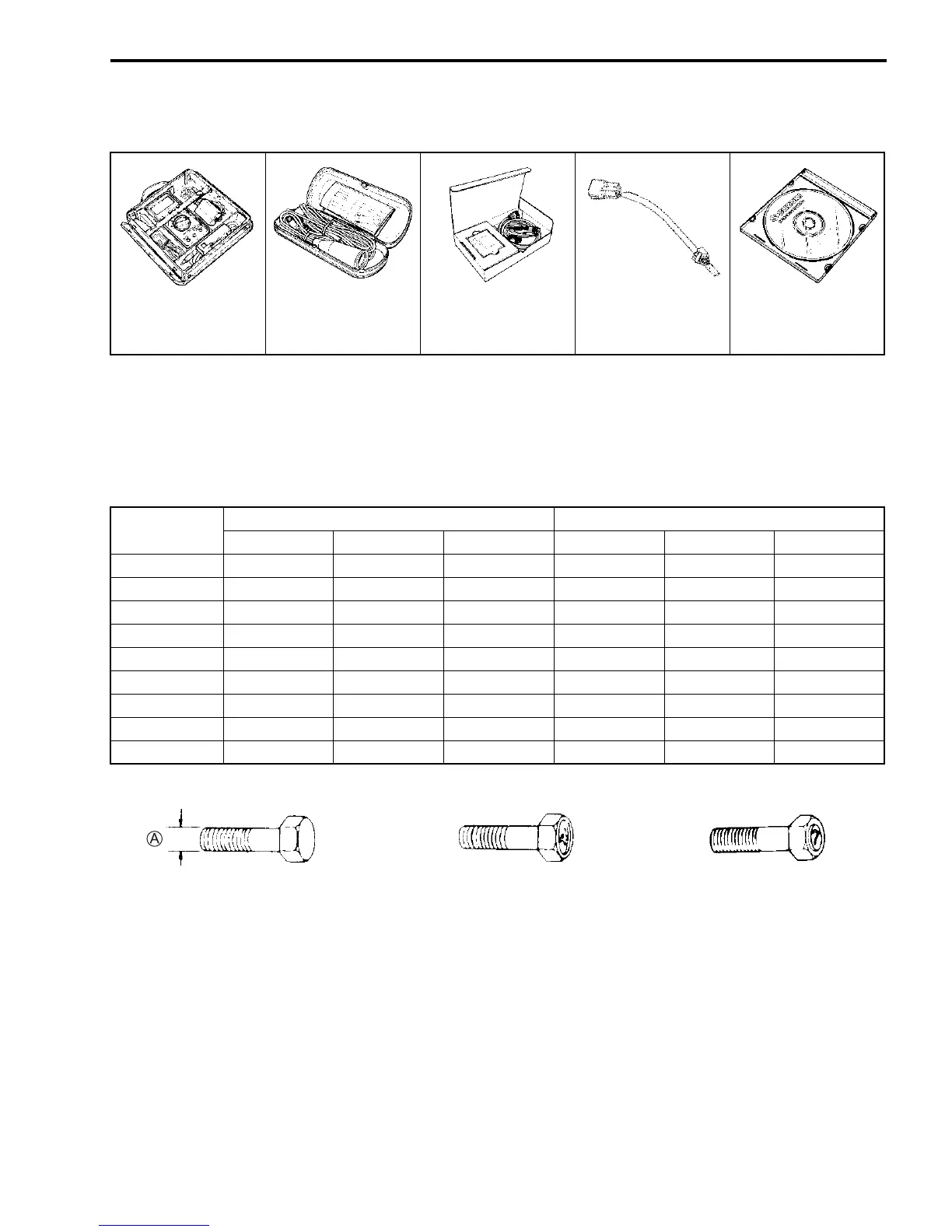

AN650/AK7 (’07-MODEL) 35
SPECIAL TOOLS
NOTE:
When order the special tool, please confirm whether it is available or not.
TIGHTENING TORQUE CHART
For other nuts and bolts not listed in the preceding page, refer to this chart:
09900-25008
Multi-circuit tester
set
09900-25009
Needle pointed
probe set
09904-41010
SDS set tool
09930-82720
Mode select switch
99565-01010-010
CD-ROM Ver. 10
Bolt Diameter
A (mm)
Conventional or “4” marked bolt “7” marked bolt
N·m kgf-m lb-ft N·m kgf-m lb-ft
4 1.5 0.15 1.0 2.3 0.23 1.5
5 3 0.3 2.0 4.5 0.45 3.0
6 5.5 0.55 4.0 10 1.0 7.0
8 131.39.5232.316.5
10 29 2.9 21.0 50 5.0 36.0
12 45 4.5 32.5 85 8.5 61.5
14 65 6.5 47.0 135 13.5 97.5
16 105 10.5 76.0 210 21.0 152.0
18 160 16.0 115.5 240 24.0 173.5
Conventional bolt “4” marked bolt “7” marked bolt
SAMPLE
To Next Page
