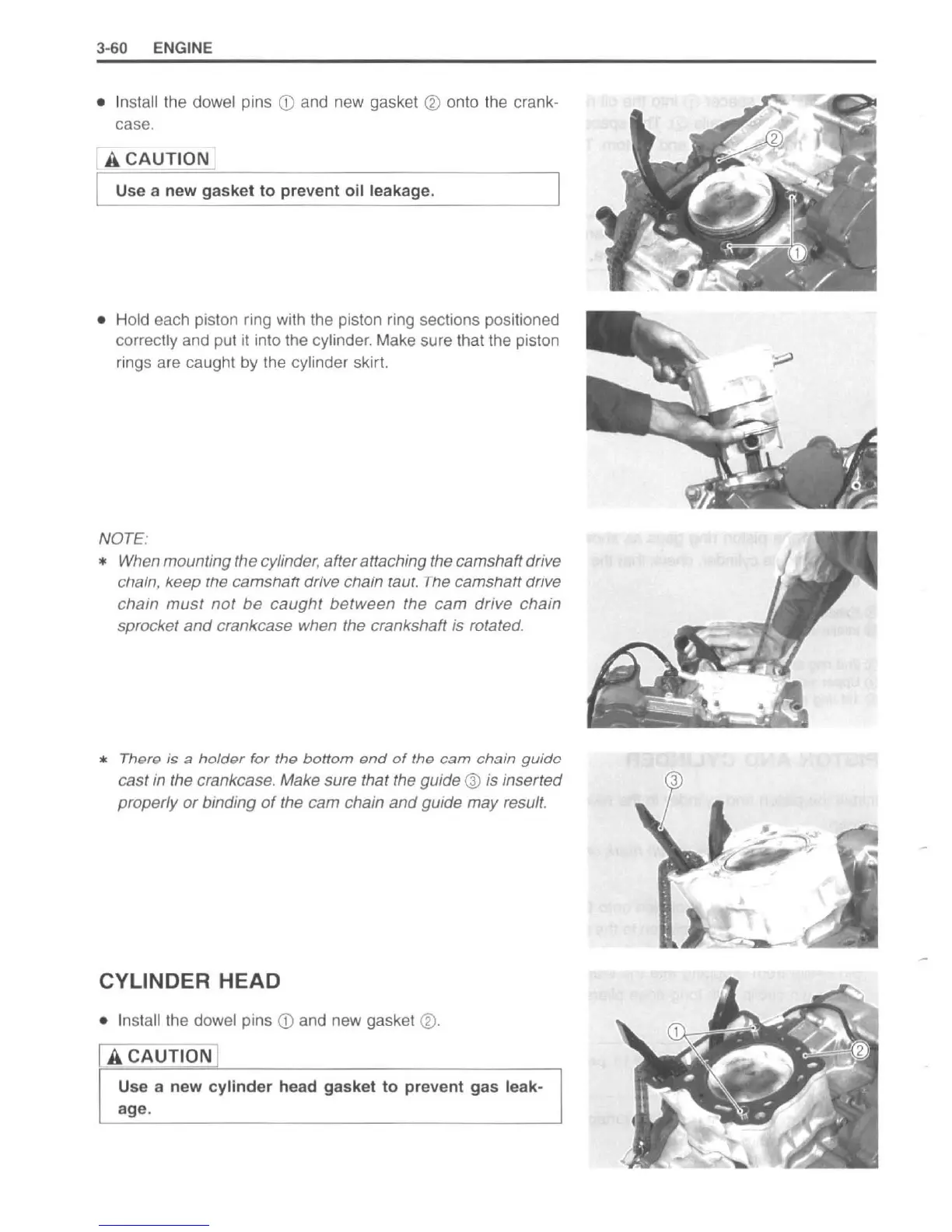

3-60 ENGINE
• Install the dowel pins
CD
and new gasket @ onto the crank-
case.
LA CAUTION ,
I Use a new
gasket
to
prevent
oil
leakage.
• Hold each piston ring with the piston ring sections positioned
correctly and put it into the cylinder. Make sure that the piston
rings are caught by the cylinder skirt.
NOTE:
* When mounting the cylinder, after attaching the camshaft drive
chain, keep me camSharr orlve chain taut.
Ihe
camshaft
Onve
chain
must
not
be
caught
between
the
cam
drive
chain
sprocket
and
crankcase when the crankshaft
is
rotated.
•
There
is a holdEN for
th9
bottom
6nd
of
the
cam
chain
guide
cast in the crankcase. Make sure that the guide @ is inserted
properly
or
binding
of
the cam chain
and
guide may result.
CYLINDER HEAD
• Install the dowel pins
CD
and new gasket
@.
[
ACAUT
iON]
Use a
new
cylinder
head
gasket
to
prevent
gas
leak-
age.
