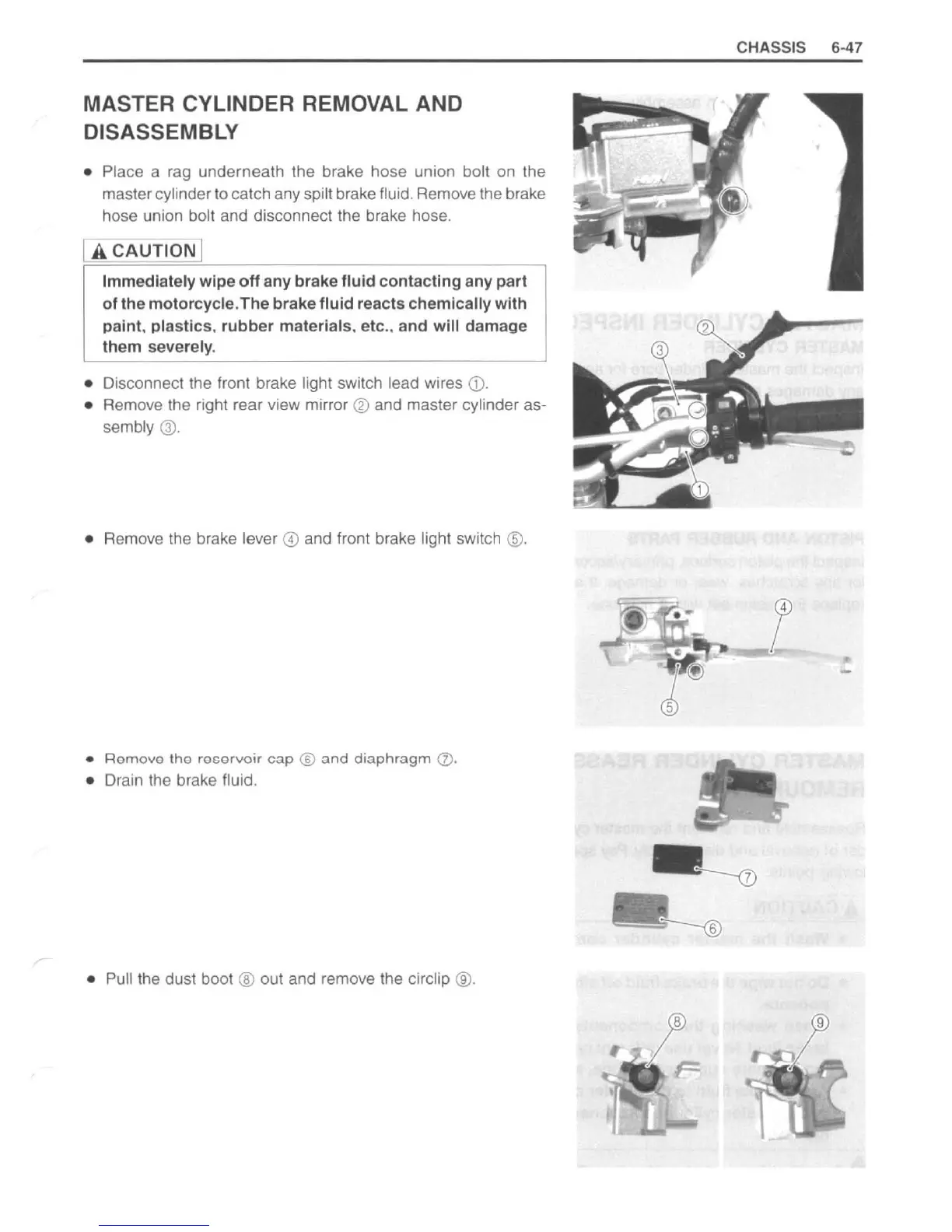

MASTER CYLINDER REMOVAL AND
DISASSEMBLY
• Place a rag underneath the brake hose union bolt on the
master cylinder
to
catch any spilt brake fluid. Remove the brake
hose union
bolt and disconnect the brake hose.
[]t.
CAUTiON]
Immediately wipe off any brake fluid contacting any part
of the motorcycle. The brake fluid reacts chemically with
paint. plastics. rubber materials. etc
..
and will damage
them severely.
• Disconnect the front brake light switch lead wires
CD.
• Remove the right rear view mirror ® and master cylinder as-
sembly
Q).
• Remove the brake lever 0 and front brake light switch @.
•
Romov
e the reservoir
cap
®
and
diaphragm
0.
• Drain the brake fluid.
•
Pull
the dust boot ® out and remove the circlip
@.
CHASSIS 6-47
