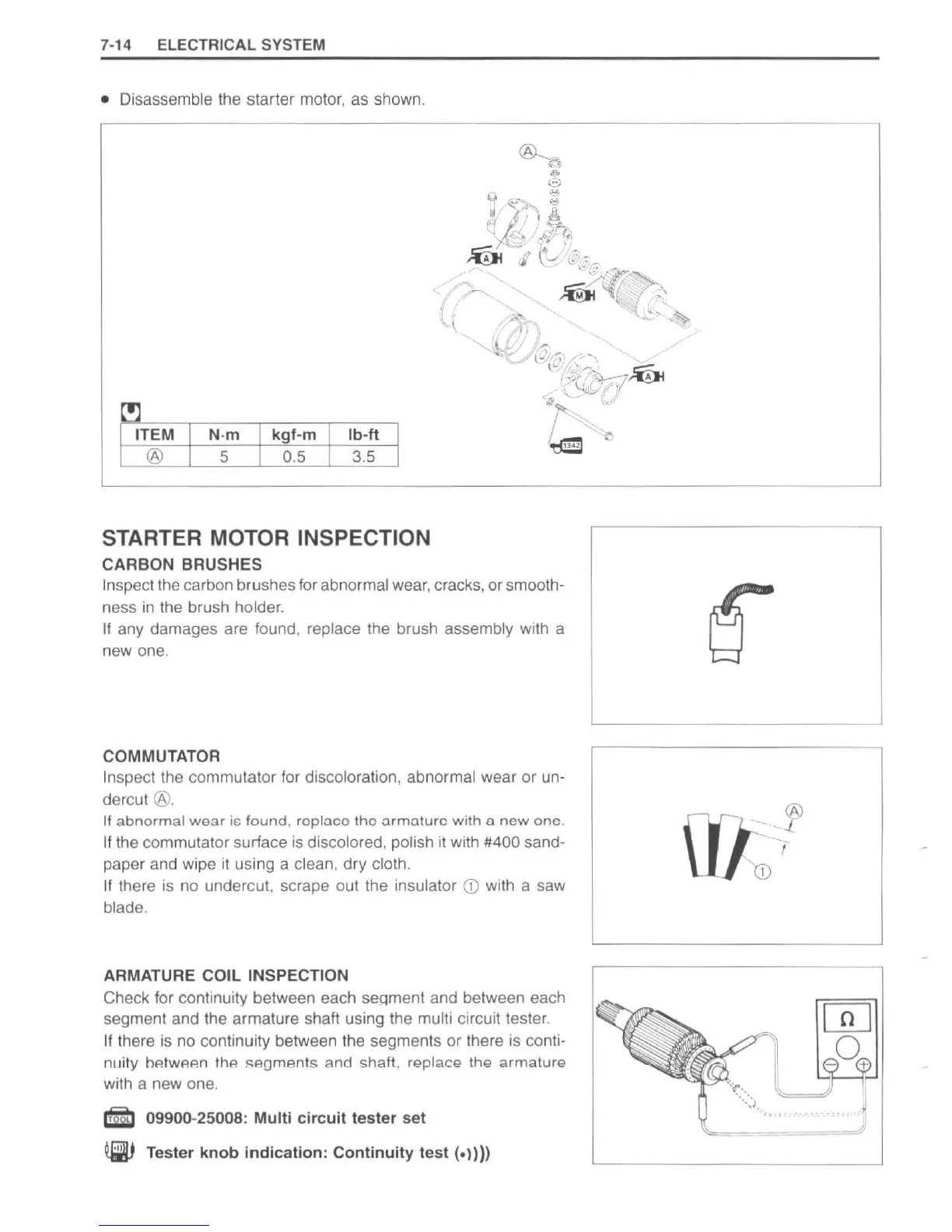

7- 14 ELECTRICAL SYSTEM
• Disassemble the starter motor, as shown.
(!]
ITEM N·m
kgf-m Ib - f1
®
5 0.5
3.5
STARTER MOTOR INSPECTION
CARBON BRUSHES
Inspect the carbon brushes for abnormal wear, cracks, or smooth-
ness in the brush holder.
11 any damages are found, replace the brush assembly with a
new one.
COMMUTATOR
Inspect
the commutator for discoloration, abnormal wear or un-
dercut ®.
If abnormal wear is found, replace the armature with a new one .
If the commutator surface is discolored, polish it with #400 sand-
paper and wipe it using a clean, dry cloth.
If
there is no undercut, scrape out the insulator CD with a saw
blade.
ARMATURE COIL INSPECTION
Check for continuity between each seqment and between each
segment and the armature shaft using the
multi circuit tester.
If there is no continuity between the segments or there is conti-
n ll ity hp. t wp.p.n thp. ''''oments and shaft, replace the armature
with a new one,
S 09900-25008: Multi circuit tester set
~ Tester knob indication: Continuity test (.1)))
" .
