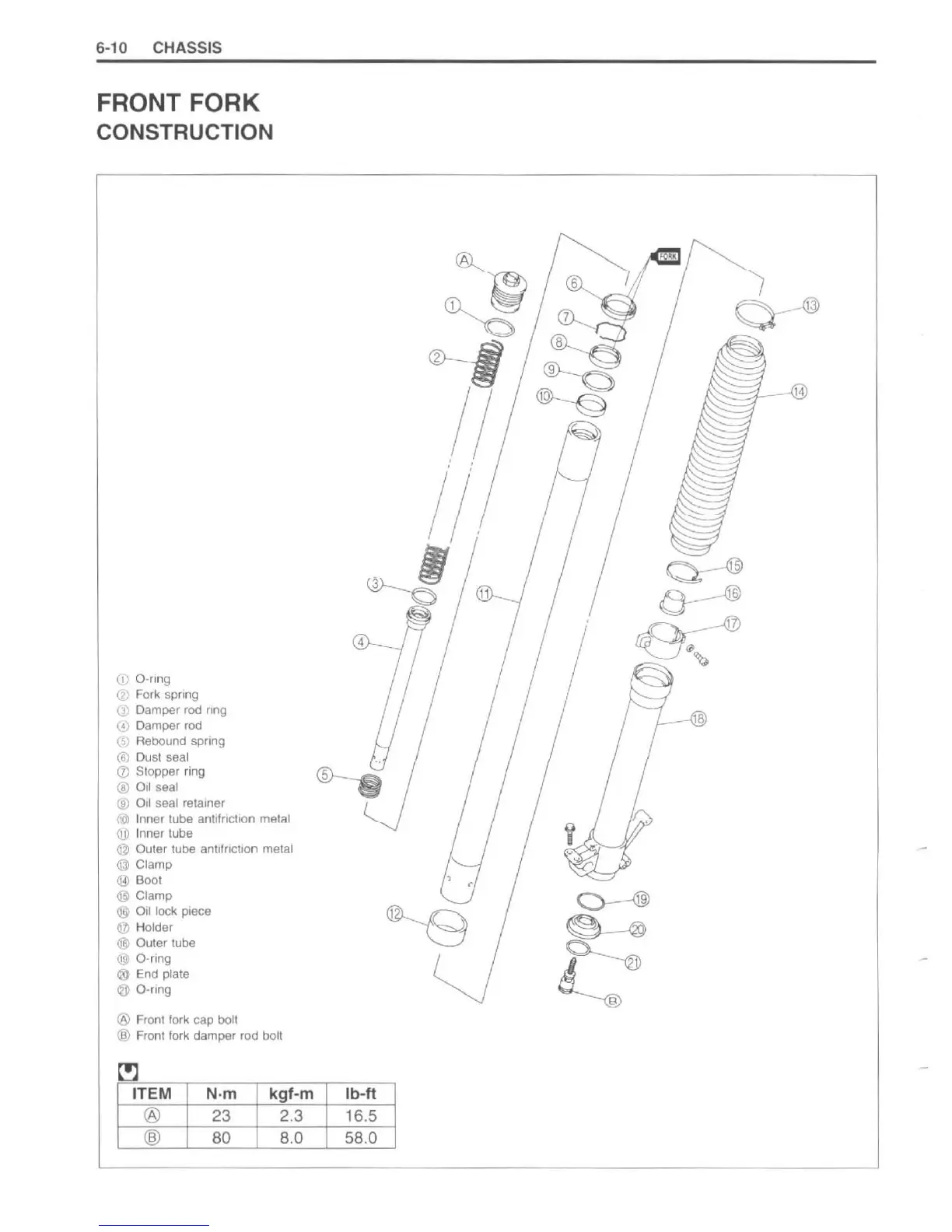

6-10 CHASSIS
FRONT FORK
CONSTRUCTION
CD a -nng
® Fork spring
(j) Damper rod ring
@ Damper rod
0; Rebound spring
® Dust seal
CD Siopper ring
® 0,1 seal
® 011 seal retainer
(0 Inner tube anllfnctlOn metal
® Inner tube
@ Out er tube antifrichOn metal
@ Clamp
@ Bool
@ Clamp
@ Oil lock piece
@ Holder
@ Outer tube
@) O-ring
~ End plale
<3 O-flng
® Front fork cap bolt
® Front fork damper rod bolt
ITEM
N·m kgf-m
®
23 2.3
®
80 8.0
~
~
II
~
Ib - ft
16.5
58.0
