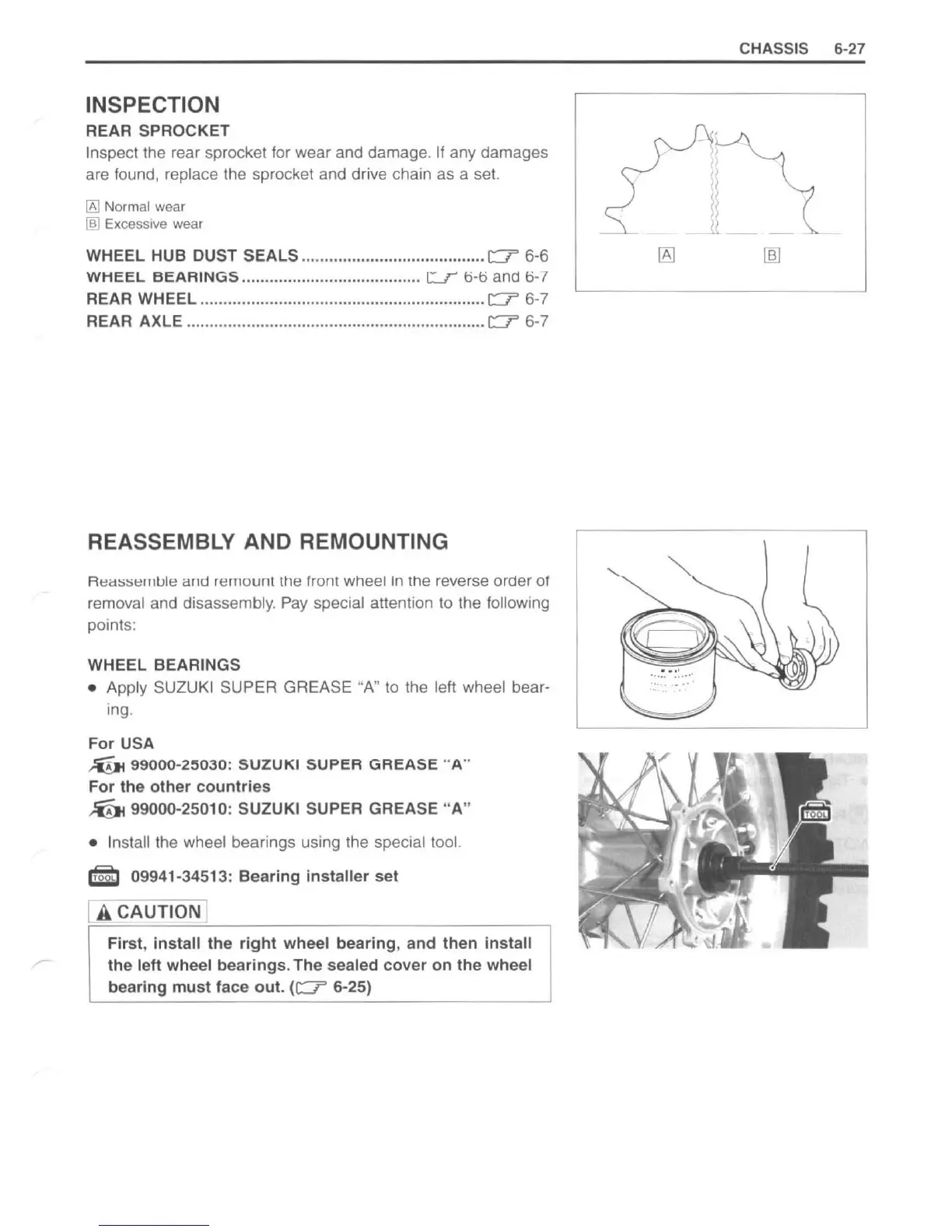

INSPECTION
REAR SPROCKET
Inspect
the rear sprocket for wear and damage.
If
any damages
are found, replace the sprocket and drive chain as a set.
~
Normal wear
lID
Excessive
wear
WHEEL HUB DUST SEALS ........................................ e::? 6-6
WHEEL
BEARINGS
.......................................
~
b·b
and
b-7
REAR WHEEL ..........................
..
.
..
................
..
...
.......... e::? 6-7
REAR AXLE ................................................................. e::? 6-7
REASSEMBLY AND REMOUNTING
R"dSS""lul" dlld r"rII0Unllhe fronl wheel
In
the reverse order of
removal
and
disassembly.
Pay
special attention to the following
points:
WHEEL
BEARINGS
•
Apply SUZUKI SUPER GREASE "A"
to
the left wheel bear-
ing.
For
USA
-0
99000-2:1030:
SUZUKI
SUPER
GREASE
" A "
For
the
other
countries
~
99000-25010: SUZUKI SUPER GREASE " A"
• Instali
the wheel bearings using the special tool.
mil
09941-34513: Bearing
installer
set
LA.
CAUTI
Qf'Jj
First,
install
the
right
wheel bearing,
and
then
install
the
left wheel bearings.
The
sealed
cover
on
the
wheel
bearing
must
face
out.
(e::? 6-25)
CHASSIS 6-27
)
