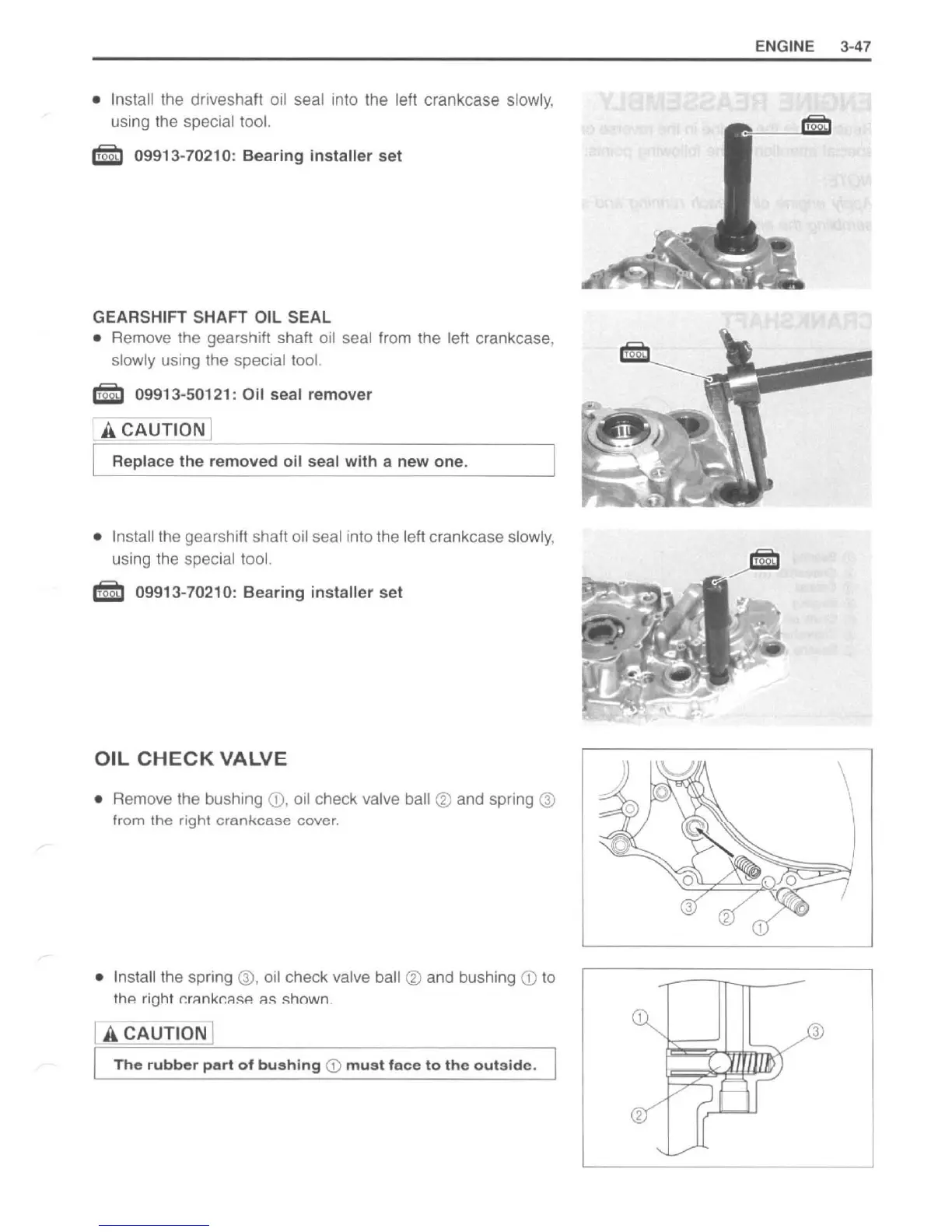

• Install the driveshaft
oil
seal into the left crankcase slowly,
using the special
tool.
S 09913-70210:
Bearing
installer
set
GEARSHIFT SHAFT OIL SEAL
•
Remove the gearshift shaft oil seal from the left crankcase,
slowly using the special
tool.
S 09913-50121: Oil seal remover
A CAUTION ]
Replace
the
removed
oil
seal
with
a new
one
.
• Install the gearshift shaft
oil
seal into the left crankcase slowly,
using the special tool.
S 09913-70210:
Bearing
installer
set
OIL
CHECK
VALVE
• Remove the bushing
<D,
oil check valve ball @ and spring @
from
the
right
cra.nkcase
cover
.
• Install the spring @,
oil
check valve ball
CV
and bushing
<D
to
thp.
riaht
r.r;:tnkr.rI~p.
;t!=;
~h()wn
.
] A CAUTION]
The
rubber
part
of
bushing
<D
must
face
to
the
outside
.
ENGINE
3-47
