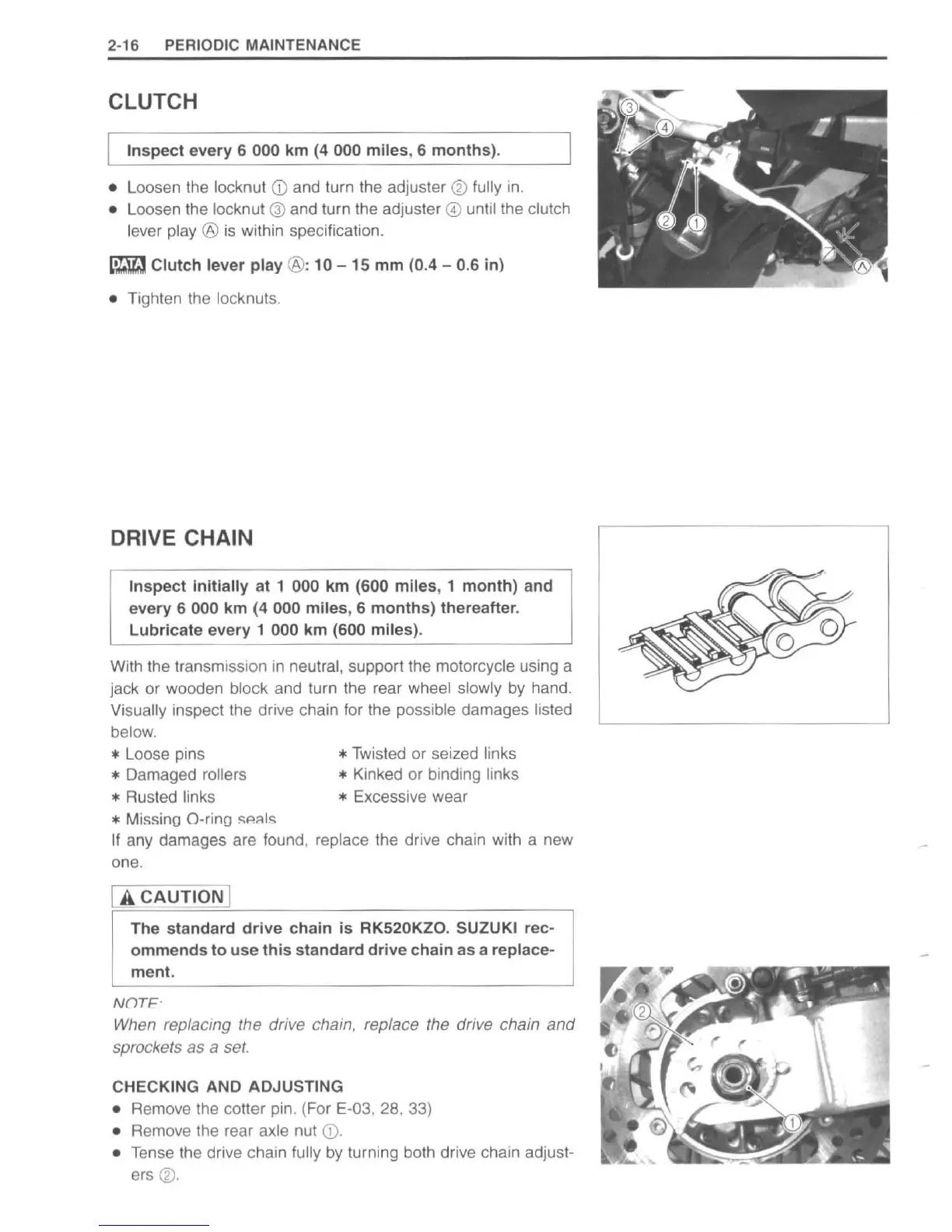

2-16 PERIODIC MAINTENANCE
CLUTCH
Inspect every 6 000 km (4 000 miles , 6 months) .
• Loosen the locknut 0 and turn the adjuster @ fully in.
• Loosen the locknul @ and turn the adjuster @ until the clutch
lever play @ is within specification.
_ Clutch lever play @: 10 -15 mm (0.4 - 0.6 in)
• Tighten the locknuts.
DRIVE CHAIN
Inspect initially at 1 000 km (600 miles , 1 month) and
every 6 000 km (4 000 miles , 6 months) thereafter .
Lubricate every 1 000 km (600 miles) .
With the transmission in neutral, support the motorcycle using a
jack or wooden block and turn the rear wheel slowly by hand.
Visually inspect the drive chain for the possible damages listed
below.
* Loose pins
* Damaged ro llers
* Rusted links
* Missino O-rino ~p'"I~
* Twisted or seized links
* Kinked or binding links
* Excessive wear
If any damages are found, replace the drive chain with a new
one.
U\. CAUTION I
The standard drive chain is RK520KZO. SUZUKI r ec-
ommends to use this standard drive chain as a replace-
ment.
NnTF '
When replacing the drive chain, replace the drive chain and
sprockets
as a set.
CHECKING AND ADJUSTING
• Remove the cotter pin. (For E-03, 28, 33)
• Remove the rear axle nut 0.
• Tense the drive chain fully by turning both drive chain adjust-
ers @.
