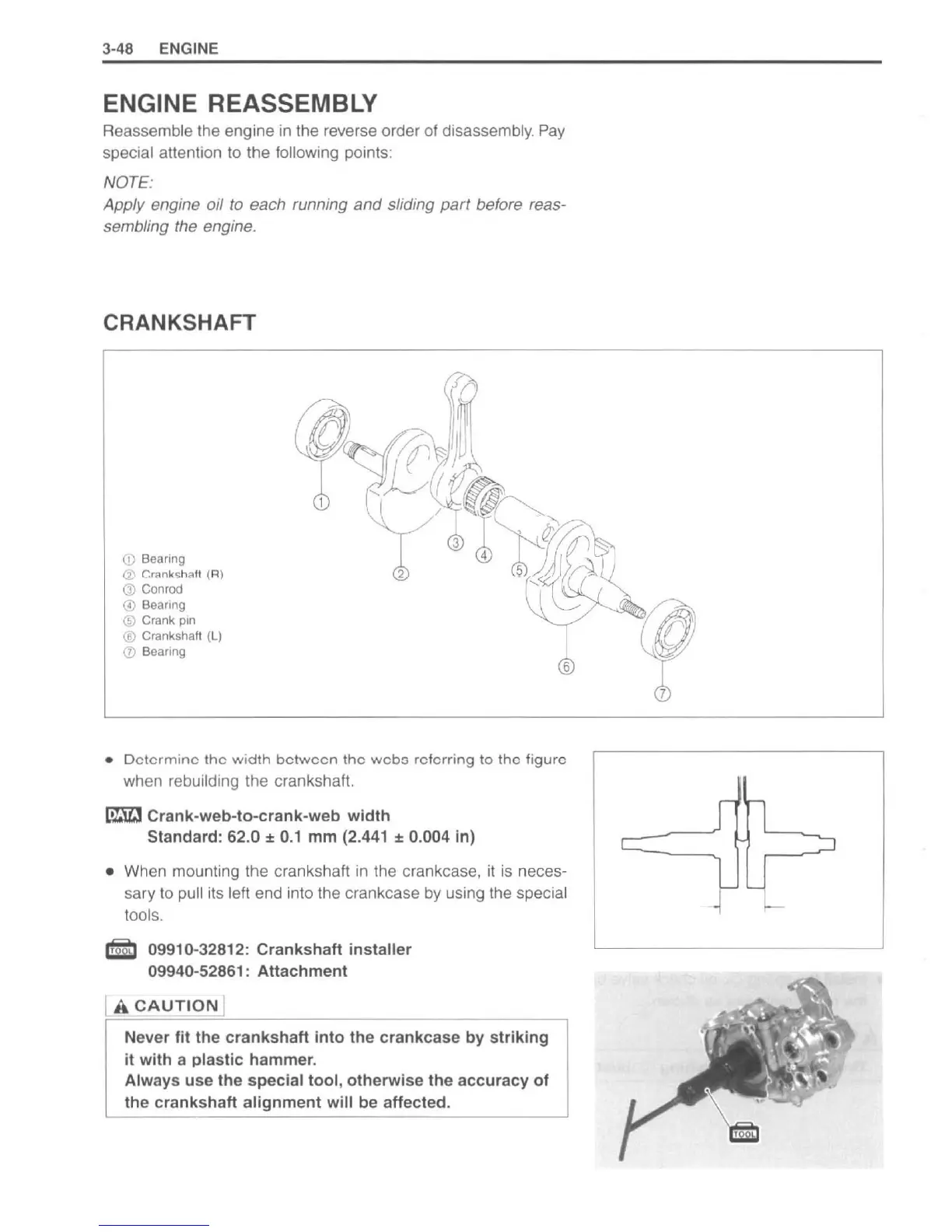

3-48
ENGINE
ENGINE REASSEMBLY
Reassemble the engine
in
the reverse order of disassembly.
Pay
special attention to the following points:
NOTE:
Apply engine oil to each running
and
sliding part before reas-
sembling the engine.
CRANKSHAFT
CD
Bearing
@
r.
r
~nko;;hatt
(R)
(j) Conrad
@ Bearing
® Crank pin
® Crankshaft (L)
(j)
Beanng
•
Det
e
rm
ine
the
width
between
the
wcbo
referring
to
the
figure
when rebuilding the crankshaft.
llL.lrJ
Crank-web-to-crank-web
width
Standard: 62.0 ±
0.1
mm
(2.
441
± 0.004 in)
•
Wh
en
mounting the crankshaft
in
the crankcase,
it
is
neces-
sary to pull its left end into the crankcase
by
using the special
tools.
1mb
09910-32812:
Crankshaft
installer
09940-52861:
Attachment
[A
CAUTION
Never
fit
the
crankshaft
into
the crankcase by
striking
it
with
a
plastic
hammer
.
Always
use
the special
tool
,
otherwise
the
accuracy
of
the
crankshaft
alignment
will
be affected.
[
]
