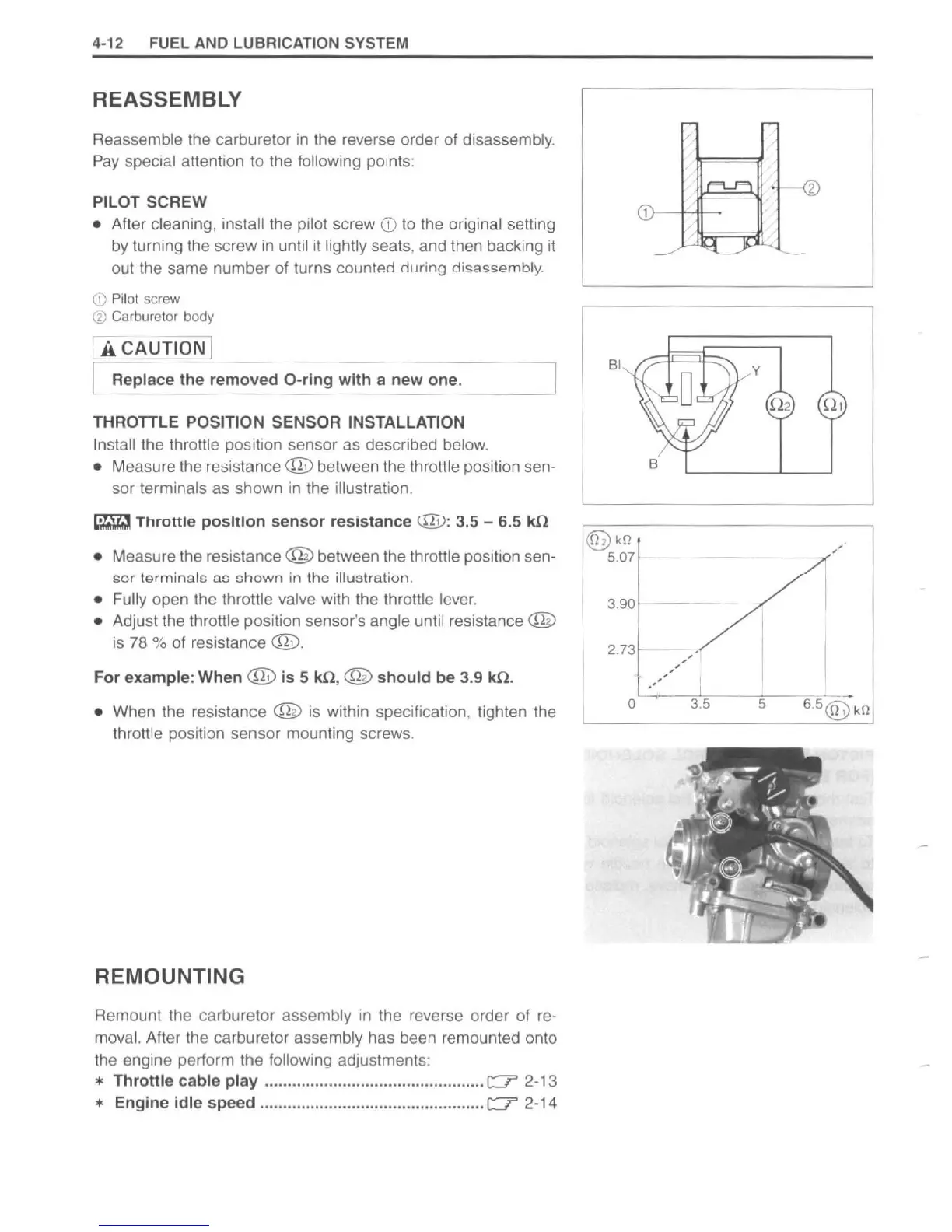

4-12 FUEL AND LUBRICATION SYSTEM
REASSEMBLY
Reassemble the carburetor in the reverse order of disassembly.
Pay special attention to the following pOints:
PILOT SCREW
•
After cleaning, install the pilot screw CD to the original setting
by turning the screw in until it lightly seats, and then backing it
out the same number of turns cOlintArl rlilrino disassembly.
CD Pilot s crew
® Carburetor body
[ ACAUTION j
Replace the removed O-ring with a new one .
THROTTLE
POSITION SENSOR INSTALLATION
In stall the throttle position sensor as described below.
•
Measure the resistance @ between the throttle position sen-
sor terminals as shown
in the illustration.
~ Throttle positiOn sensor resistance @: 3.5 - 6.5 IUl
•
Measure the resistance @ between the throttle position sen-
sor terminals ac chown in the illustration.
• Fully open the throttle valve with the throttle lever.
•
Adjust the throttle position sensor's angle until resistance @
is 78 % of resistance @ .
For example: When @ is 5 1Ul , @ should be 3.9 1Ul .
•
When th e resistance @ is within specification, tighten the
throttle position sensor mounting screws.
REMOUNTING
Remount the carburetor assembly in the reverse order of re-
moval. After the carburetor assembly has been remounted onto
the engine perform the following adjustments:
* Throttle cable play ................................................ c::::r 2-13
* Engine idle speed ................................................. c::::r 2-14
BI
®> kll
5.07
3. 90
2. 73
o
B
y
--
- .,,(
3 .5
5
