1B-6 Emission Control Devices:

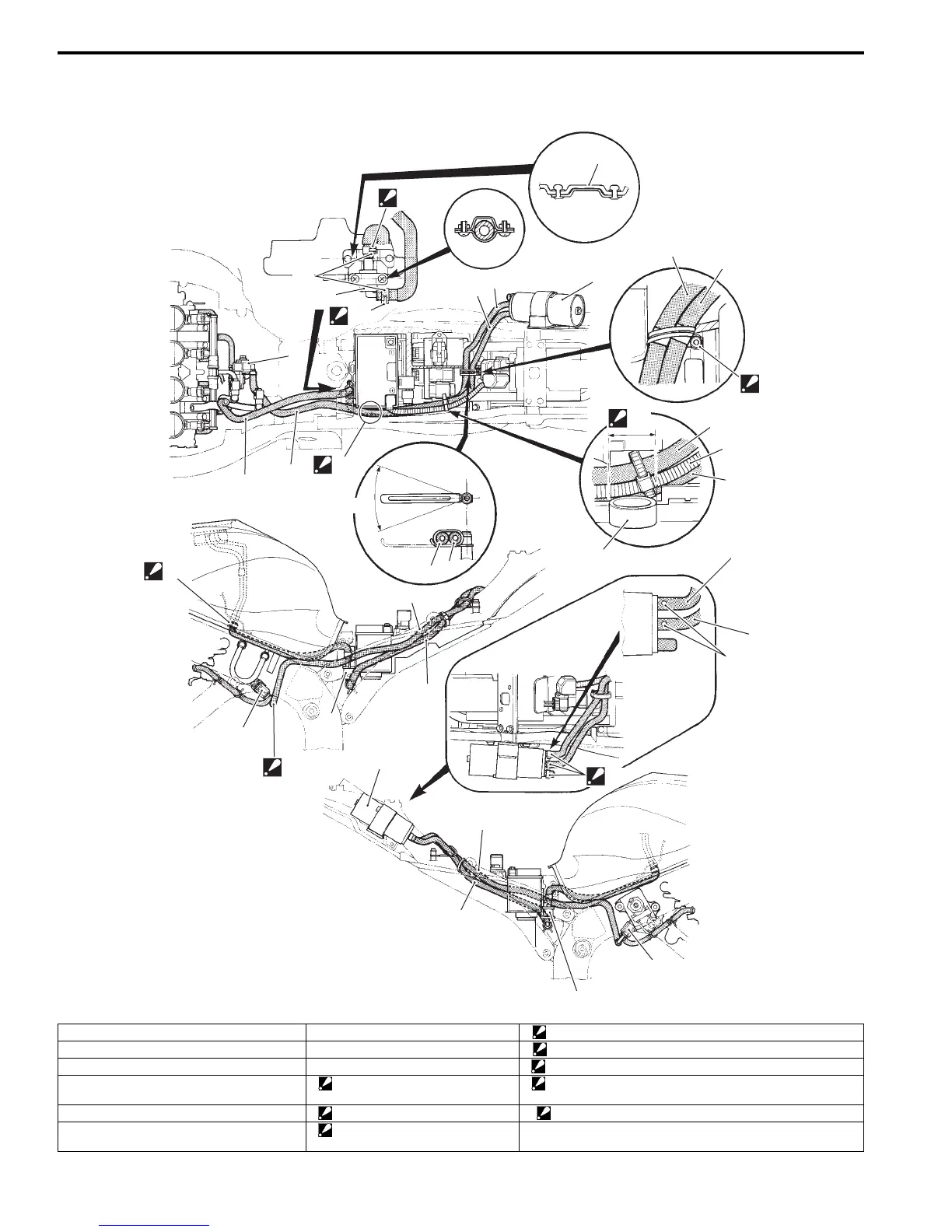

EVAP Canister Hose Routing Diagram (Only for E-33)
B838H21202002
1
1
1
2
2
2
2
2
2
3
3
3
3
2
3
3
3
2
3
5
6
7
8
8
“I”
“C”
“E”
“F”
4
4
4
“H”
“A”
“B”
“a”
“A”
“D”
“G”
I837H1120045-02
1. EVAP system purge control solenoid valve 7. Seat rail “E”: Clamp the hoses and battery (+) lead wire at this part.
2. Surge hose 8. EVAP canister “F”: Clamp the hoses after aligning their markings with the bolt.
3. Purge hose “A”: White marking “G”: Face the clamp end forward.
4. Fuel shut-off valve “B”: Face the clamp end downward. “H”: Insert the purge hose to the lower nipple of the valve and
face the clamp end backward.
5. Rear fender “C”: Face the clamp end left side. “I”: Face the clamp end upward.
6. Battery (+) lead wire “D”: Pass the hoses between the
battery holder and seat rail.
“a”: ±20°

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
