Manual Transmission: 5B-5

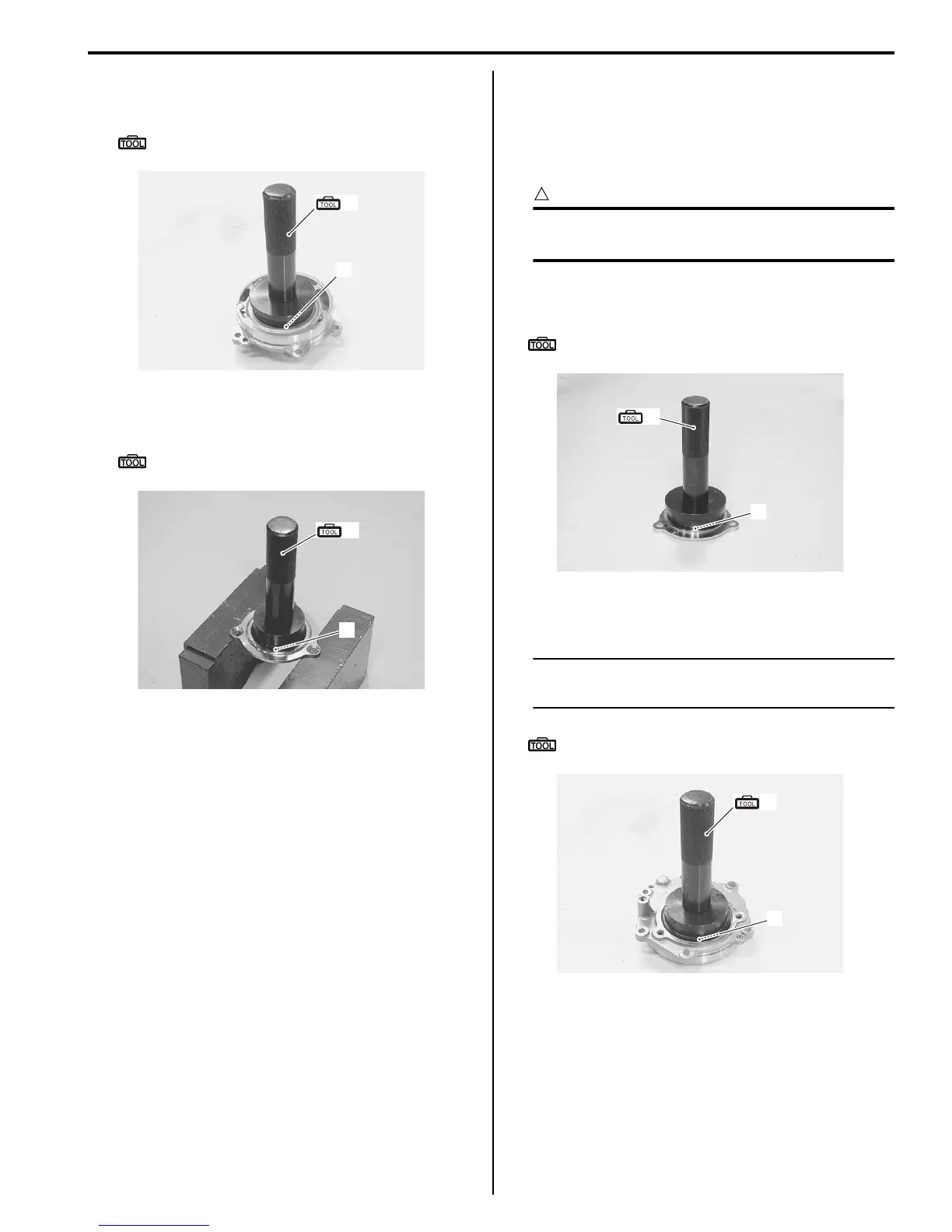

4) Remove the driveshaft left bearing (4) with the
special tool.
Special tool
(D): 09913–70210 (Bearing installer set)
5) Remove the driveshaft left bearing oil seal (5) from
the retainer using the special tool.
Special tool
(D): 09913–70210 (Bearing installer set)
Transmission Installation
B838H25206003
Install the transmission in the reverse order of removal.
Pay attention to the following points:
Bearing and Oil Seal
CAUTION
!
Replace the removed bearings and oil seals
with new ones.
• Install the driveshaft left bearing dust oil seal (1) with
the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the driveshaft left bearing (2) with the special
tool.
NOTE
The stamped mark side of the driveshaft left
bearing faces outside.
Special tool
(A): 09913–70210 (Bearing installer set)
(D)
4
I837H1520012-01
(D)
5
I837H1520013-01
(A)
1
I837H1520014-01
(A)
2
I837H1520015-01

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
