Suzuki GSX-R750 User Manual

4C-1 Rear Brakes:
Brake
Rear Brakes
Repair Instructions

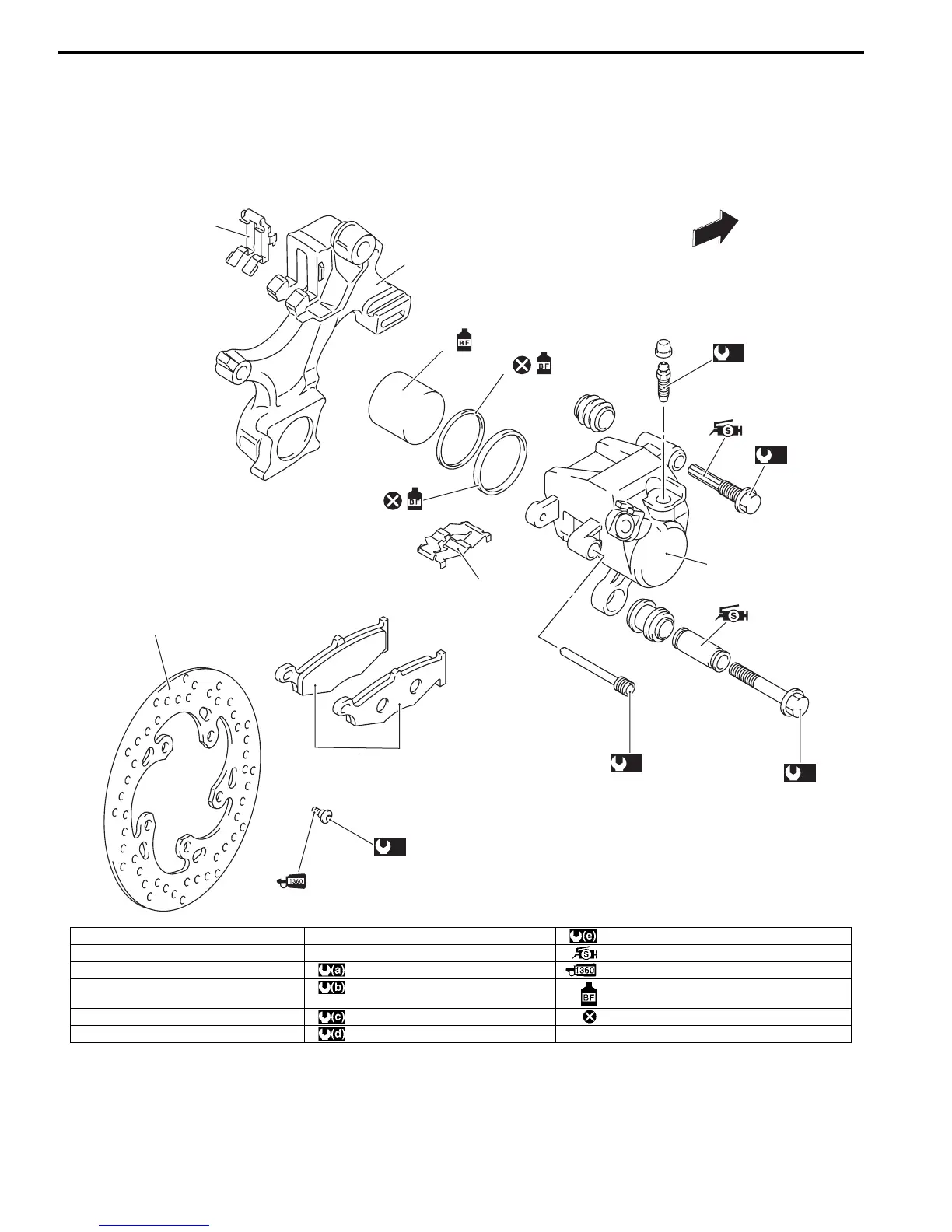

Rear Brake Components
B838H24306001
1
2
3
5
6
7
8
8
4
(e)
(a)
FWD
FWD
(b)
(c)
(d)
I837H1430022-02
1. Rear caliper 7. Rear brake disc : 35 N⋅m (3.5 kgf-m, 2.5 lb-ft)
2. Piston seal 8. Brake pad spring : Apply silicone grease to sliding surface.
3. Dust seal : 7.5 N⋅m (0.75 kgf-m, 5.5 lb-ft) : Apply thread lock to the thread part.
4. Piston : 33 N⋅m (3.3 kgf-m, 24.0 lb-ft) : Apply brake fluid.
5. Rear caliper bracket : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft) : Do not reuse.
6. Rear brake pad set : 16 N⋅m (1.6 kgf-m, 11.5 lb-ft)

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
