Suzuki GSX-R750 User Manual

2B-1 Front Suspension:
Suspension
Front Suspension
Repair Instructions

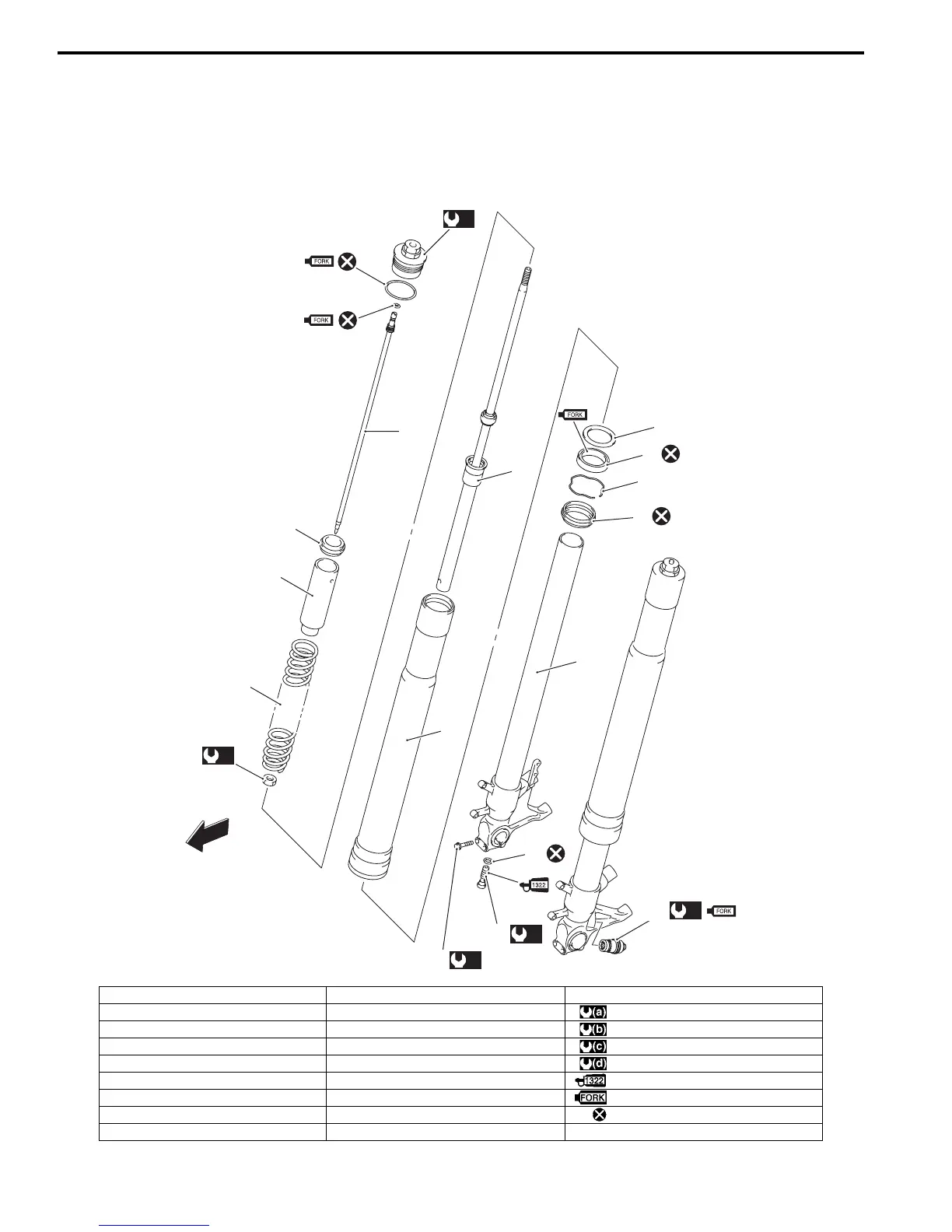

Front Fork Components
B838H22206001
2
3
5
6
7
9
11
10
12
13
14
15
16
4
FWD
FWD
(a)
17
(c)
18
(d)
19
(a)
1
(b)
8
I838H1220001-01
1. Front fork cap bolt 10. Outer tube 19. Compression damping force adjuster
2. O-ring 11. Oil seal retainer : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft)
3. O-ring 12. Oil seal : 20 N⋅m (2.0 kgf-m, 14.5 lb-ft)
4. Adjuster rod 13. Oil seal stopper ring : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
5. Spring retainer 14. Dust seal : 30 N⋅m (3.0 kgf-m, 21.5 lb-ft)
6. Spacer 15. Inner tube : Apply thread lock to the thread part.
7. Spring 16. Gasket : Apply fork oil.
8. Lock-nut 17. Damper rod bolt : Do not reuse.
9. Inner rod/Damper rod (cartridge) 18. Front axle pinch bolt

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
