Suzuki GSX-R750 User Manual

Drive Chain / Drive Train / Drive Shaft: 3A-1
Driveline / Axle
Drive Chain / Drive Train / Drive Shaft
Diagnostic Information and Procedures
Drive Chain and Sprocket Symptom Diagnosis
B838H23104001
Repair Instructions

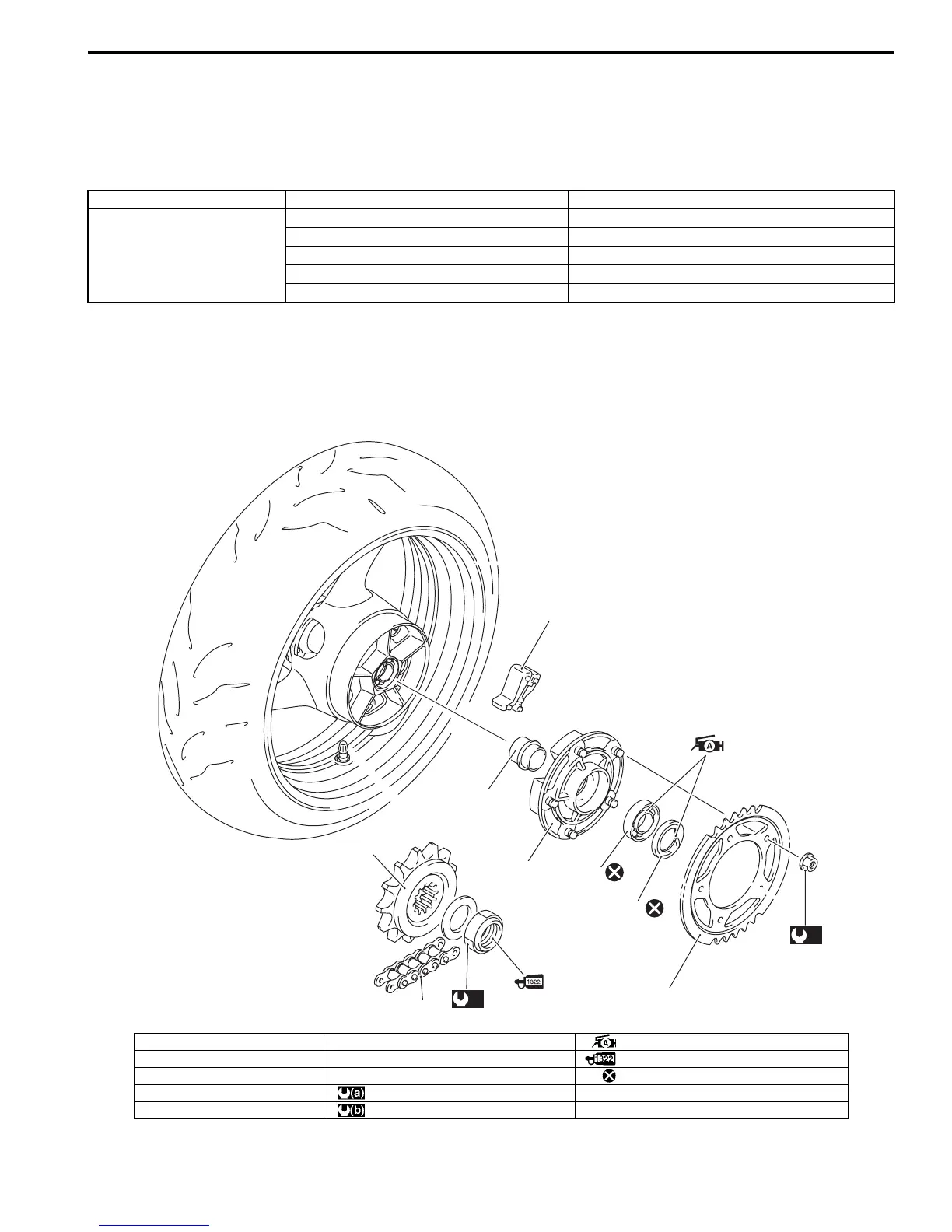

Drive Chain Related Components
B838H23106001
Condition Possible cause Correction / Reference Item
Noisy Drive Chain Worn sprocket. Replace.
Worn drive chain. Replace.
Stretched drive chain. Replace.
Too large drive chain slack. Adjust.
Drive chain out of adjustment. Adjust.
8
7
6
5
4
3
(b)
2
1
(a)
I837H1310031-03
1. Drive chain 6. Sprocket mounting drum : Apply grease.
2. Engine sprocket 7. Retainer : Apply thread lock to thread part.
3. Rear sprocket 8. Wheel damper : Do not reuse.
4. Dust seal : 115 N⋅m (11.5 kgf-m, 83.0 lb-ft)
5. Bearing : 60 N⋅m (6.0 kgf-m, 43.0 lb-ft)

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
