Suzuki GSX-R750 User Manual

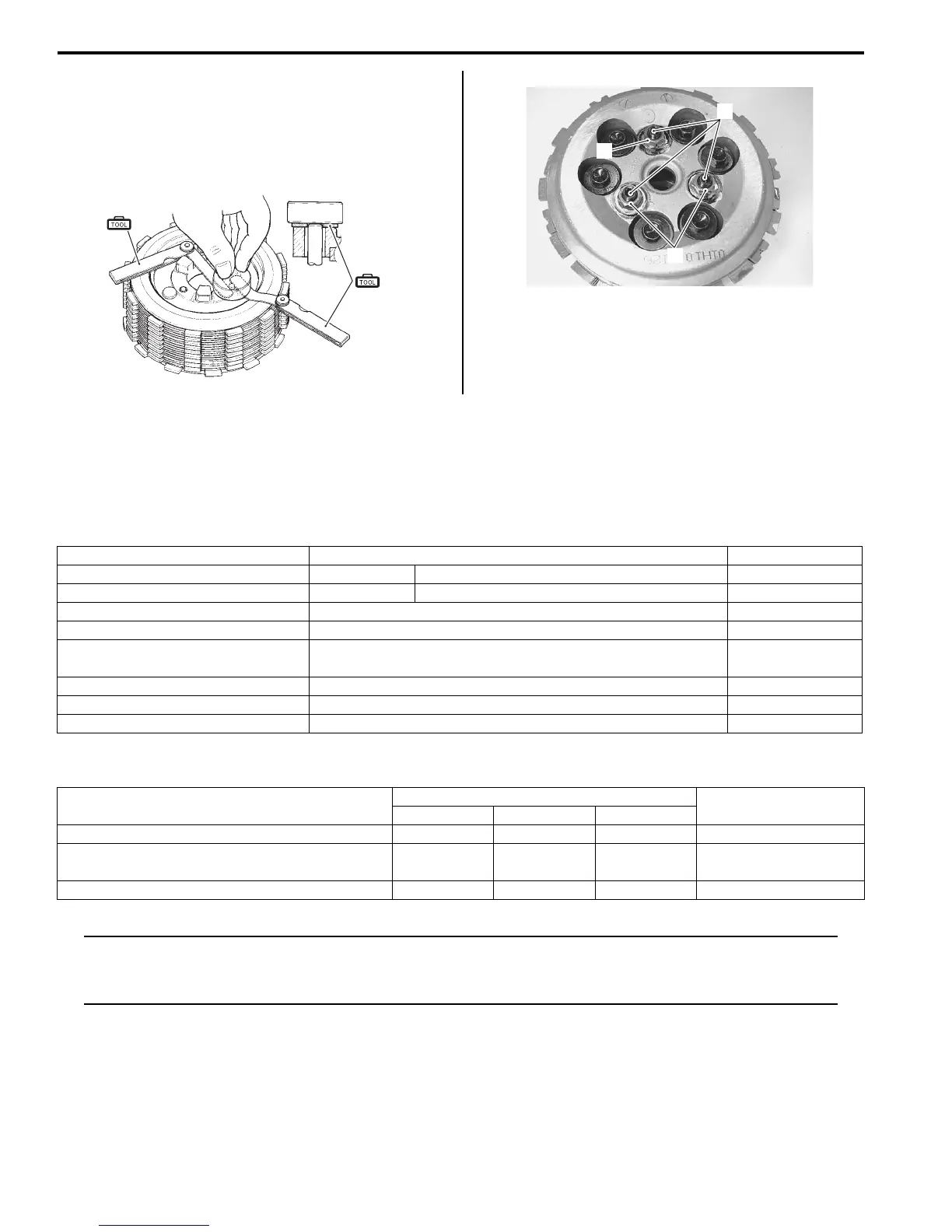

5C-14 Clutch:
7) Slowly turn in the adjusting pin screw (1) until
resistance is felt. Tighten the lock-nut (2).
Tightening torque
Clutch lifter lock-nut: 23 N·m (2.3 kgf-m, 16.5 lb-
ft)
Specifications
Service Data
B838H25307001
Clutch
Unit: mm (in)
Tightening Torque Specifications
B838H25307002
NOTE
The specified tightening torque is also described in the following.
“Clutch Control System Components (Page 5C-3)”
“Clutch Components (Page 5C-4)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-9)”.
(A)
(A)
I837H1530046-02
1
2
2
I837H1530042-01
Item Standard Limit
Clutch drive plate thickness No. 1, 2 & 3 2.72 – 2.88 (0.107 – 0.113) 2.42 (0.095)
Clutch drive plate claw width No. 1, 2 & 3 13.85 – 13.96 (0.5453 – 0.5496) 13.05 (0.5138)
Clutch driven plate distortion — 0.10 (0.004)
Clutch spring free length 56.0 (2.205) 53.2 (2.09)
Clutch lifter adjusting pin screw
height
0.2 – 0.4 (0.008 – 0.016) —
Wave spring washer height — 4.30 (0.169)
Clutch lever play 10 – 15 (0.4 – 0.6) —
Clutch release screw 1/2 turn back —
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Clutch sleeve hub nut 95 9.5 68.7 )(Page 5C-8)
Clutch spring set bolt
10 1.0 7.0
)(Page 5C-10) /
)(Page 5C-13)
Clutch lifter lock-nut 23 2.3 16.5 )(Page 5C-14)

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
