Engine Mechanical: 1D-15

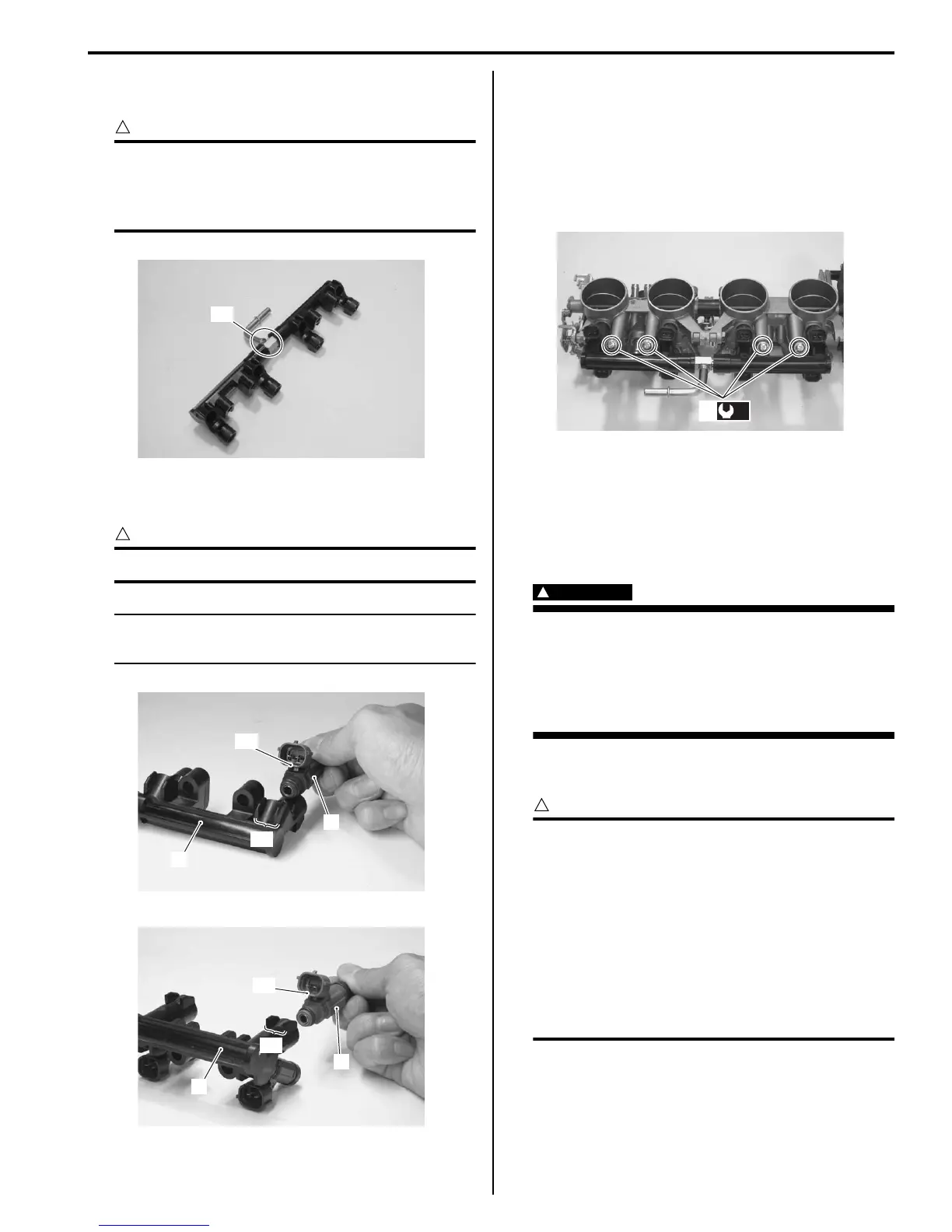

• Assemble the fuel delivery pipes as shown in the
figure.
CAUTION
!
Be careful not to twist the fuel delivery pipe
T-joint when installing the fuel delivery pipes,
or joint part “E” of the fuel delivery pipe may
get damage.
• Install the fuel injector (5) by pushing it straight to the
delivery pipe (6).
CAUTION
!
Never turn the injector while pushing it.
NOTE
Align the coupler “F” of injector with boss
“G” of the delivery pipe.
• Install the fuel delivery pipe assembly to the throttle
body.
• Tighten the fuel delivery pipe mounting screws (7) to
the specified torque.
Tightening torque
Fuel delivery pipe mounting screw (b): 3.5 N·m (
0.35 kgf-m, 2.5 lb-ft)
Throttle Body Inspection and Cleaning
B838H21406012
Refer to “Throttle Body Disassembly and Assembly
(Page 1D-11)”.
Cleaning
WARNING
!
Some carburetor cleaning chemicals,
especially dip-type soaking solutions, are
very corrosive and must be handled carefully.
Always follow the chemical manufacturer’s
instructions on proper use, handling and
storage.
• Clean passageways with a spray-type carburetor
cleaner and blow dry with compressed air.
CAUTION
!
Never clean the throttle body main bore. Do
not use wire to clean passageways. Wire can
damage passageways. If the components
cannot be cleaned with a spray cleaner it may
be necessary to use a dip-type cleaning
solution and allow them to soak. Always
follow the chemical manufacturer’s
instructions for proper use and cleaning of
the throttle body components. Do not apply
carburetor cleaning chemicals to the rubber
and plastic materials.
“E”
I837H1140034-01
“F”
“G”
5
6
I837H1140035-02
“F”
“G”
5
6
I837H1140036-02
(b)
7
I837H1140037-02

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
