Charging System: 1J-11

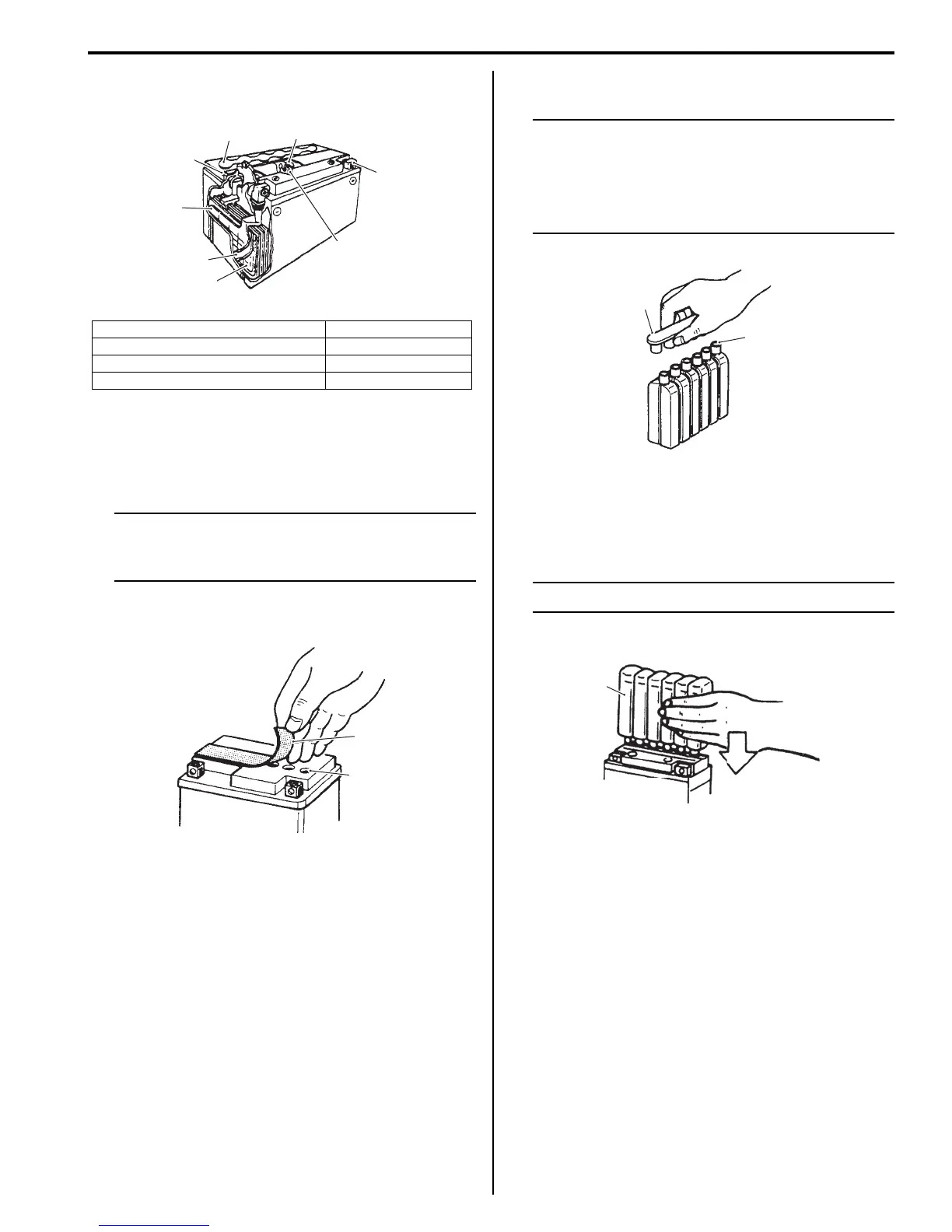

Battery Components
B838H21A06008
Battery Charging
B838H21A06009
Initial Charging
Filling electrolyte
NOTE
When filling electrolyte, the battery must be
removed from the vehicle and must be put on
the level ground.
1) Remove the aluminum tape (1) which seals the
battery filler holes “A”.
2) Remove the caps (2) from the electrolyte container.
NOTE
• Do not remove or pierce the sealed areas
“B” of the electrolyte container.
• After filling the electrolyte completely, use
the removed cap (2) as sealing caps of
battery-filler holes.
3) Insert the nozzles of the electrolyte container (3) into
the electrolyte filler holes of the battery.
4) Hold the electrolyte container firmly so that it does
not fall.
NOTE
Do not allow any of the electrolyte to spill.
1. Anode plates 5. Stopper
2. Separator (Fiberglass plate) 6. Filter
3. Cathode plates 7. Terminal
4. Upper cover breather 8. Safety valve
1
3
2
4
5
6
7
8
I649G11A0046-03
1
“A”
I649G11A0039-03
2
“B”
I649G11A0040-03
3
I649G11A0041-03
