Suzuki GSX-R750 User Manual

Manual Transmission: 5B-3

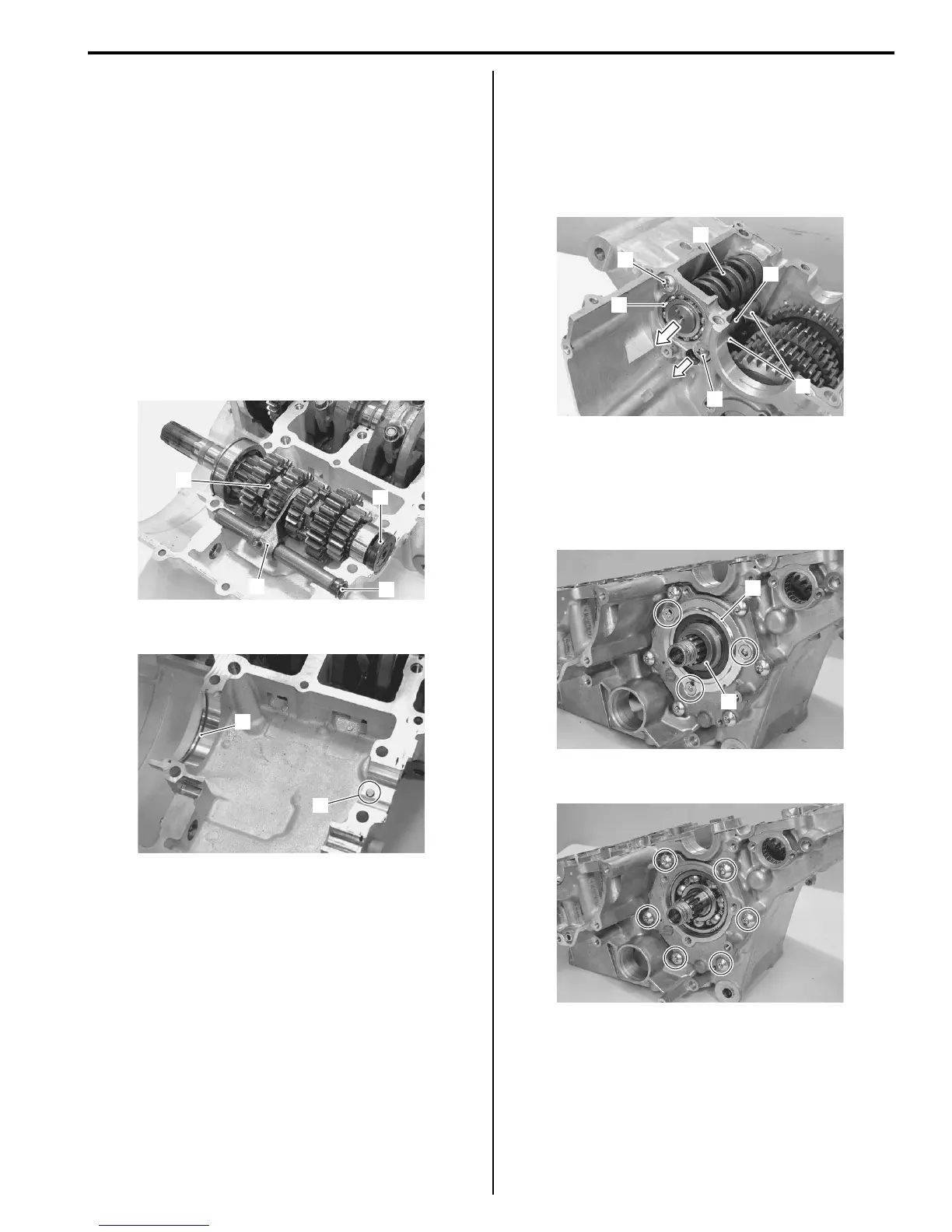

Transmission Removal
B838H25206002
1) Remove the engine assembly from the frame. Refer
to “Engine Assembly Removal in Section 1D
(Page 1D-19)”.
2) Remove the engine top side. Refer to “Engine Top
Side Disassembly in Section 1D (Page 1D-25)”.
3) Separate the upper and lower crankcases. Refer to
“Engine Bottom Side Disassembly in Section 1D
(Page 1D-47)”.
Countershaft Assembly
1) Remove the gearshift shaft plug (1) and gearshift
fork/gearshift shaft (2).
2) Remove the clutch push rod oil seal (3) and
countershaft assembly (4).
3) Remove the bearing pin (5) and C-ring (6).
Gearshift Fork and Gearshift Cam
1) Remove the screws (1).
2) Remove the gearshift fork shaft (2).
3) Remove the gearshift cam (3) along with its bearing
(4).
4) Remove the gearshift fork (5).
Driveshaft Assembly
1) Remove the spacer (1).
2) Remove the oil seal retainer (2) by removing the dust
seal retainer bolts.
3) Remove the driveshaft left bearing case bolts.
4) By using suitable size bolts (3), remove the
driveshaft left bearing case (4).
1
3
4
2
I837H1520001-01
6
5
I838H1520001-01
1
1
3
5
4
2
I837H1520003-01
1
2
I837H1520004-01
I837H1520005-01

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
