Exterior Parts: 9D-15

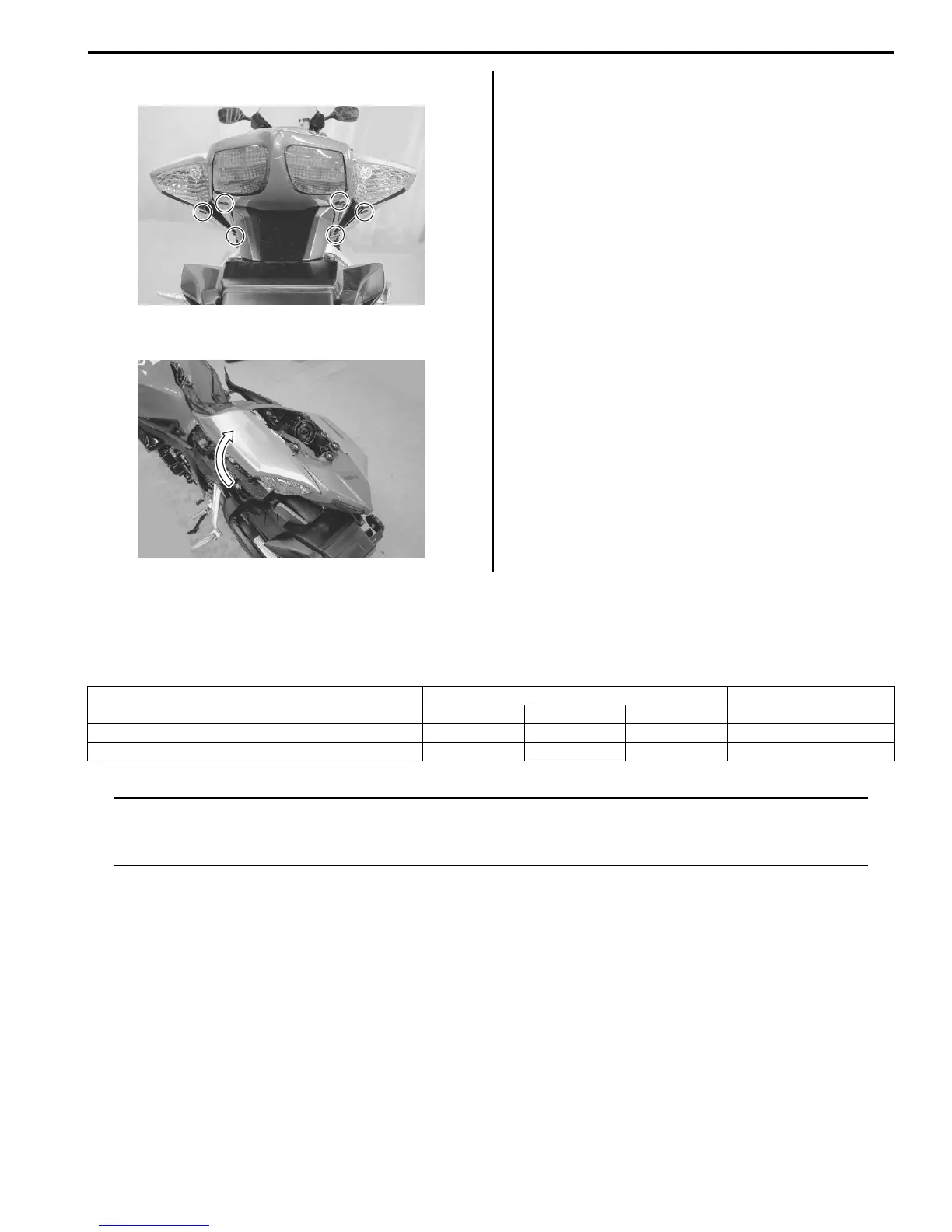

4) Remove the following fasteners.
5) Remove the frame cover assembly from the frame.
Installation
Install the frame cover assembly in the reverse order of
removal.
Front Fender
Removal
Refer to “Front Fork Removal and Installation in Section
2B (Page 2B-2)”.
Installation
Refer to “Front Fork Removal and Installation in Section
2B (Page 2B-2)”.
Rear Fender
Removal
Refer to “Rear Fender Construction (Page 9D-4)”.
Installation
Refer to “Rear Fender Construction (Page 9D-4)”.
Specifications
Tightening Torque Specifications
B838H29407001
NOTE
The specified tightening torque is also described in the following.
“Exterior Parts Construction (Page 9D-1)”
“Rear View Mirror Construction (Page 9D-8)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List in Section 0C
(Page 0C-9)”.
I837H1940023-04
I838H1940004-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Rear view mirror mounting nut 10 1.0 7.0 )(Page 9D-14)
Cowling brace mounting bolt 23 2.3 16.5 )(Page 9D-14)

Suzuki GSX-R750 Specifications

General

Engine Type	4-stroke, 4-cylinder, liquid-cooled, DOHC
Displacement	750cc
Compression Ratio	12.5:1
Fuel System	Fuel injection
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Overall Width	710 mm (28.0 in)
Ground Clearance	130 mm (5.1 in)
Seat Height	810 mm (31.9 in)
Curb Weight	190 kg (419 lbs)
Ignition	Electronic ignition (transistorized)
Starter	Electric
Final Drive	Chain
Bore x Stroke	70.0 mm x 48.7 mm
Transmission	6-speed, constant mesh
Rear Brakes	Disc
Front Tires	120/70ZR17M/C (58W)
Rear Tires	180/55ZR17M/C (73W)
Fuel Tank Capacity	17.0 L (4.5 US gallons)
Overall Length	2, 030 mm (79.9 in)
Wheelbase	1390 mm (54.7 in)
Front Brakes	Dual hydraulic disc
