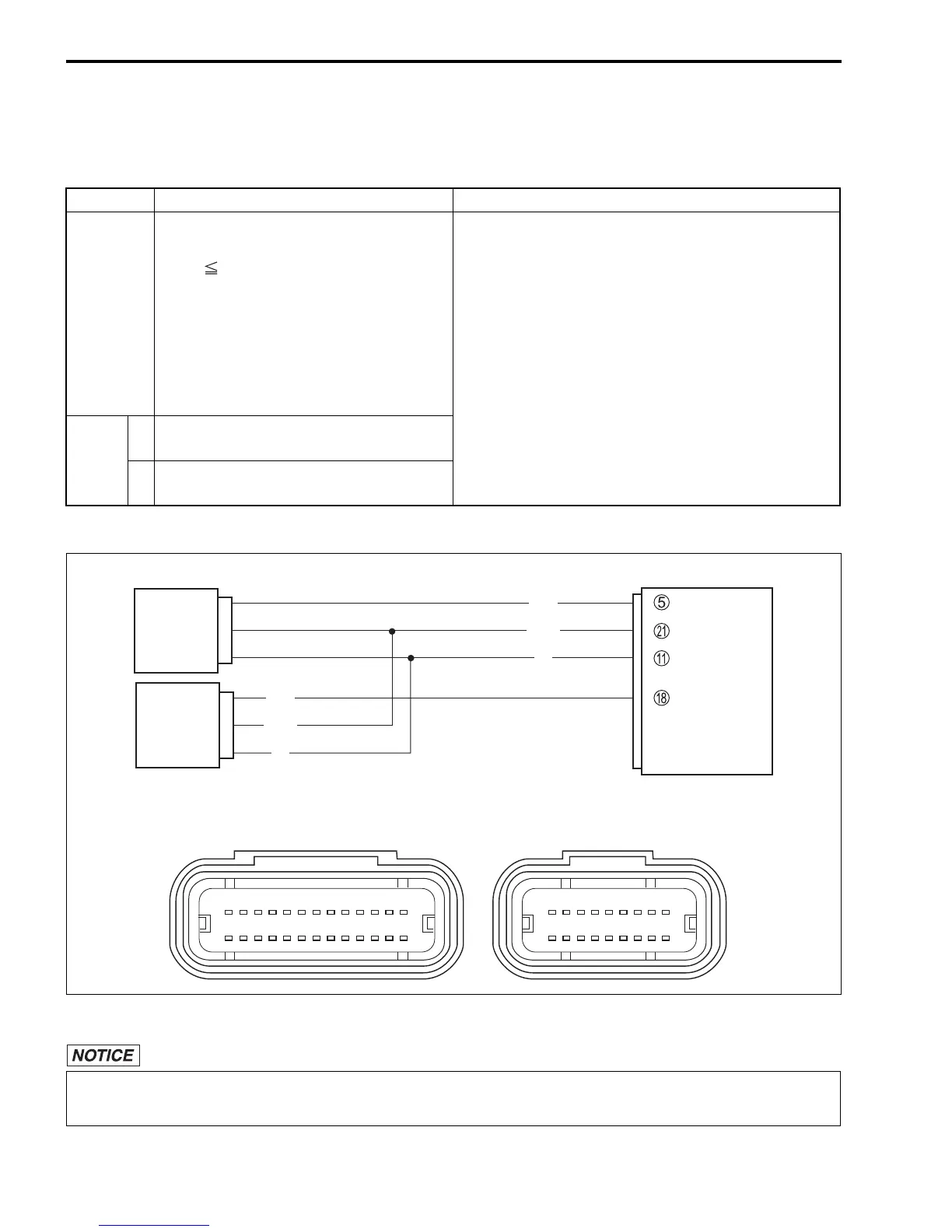

4-34 FI SYSTEM DIAGNOSIS
DTC “C13” (P1750-H/L) or “C17” (P0105-H/L): IAP SENSOR CIRCUIT
MALFUNCTION
DETECTED CONDITION AND POSSIBLE CAUSE
WIRING DIAGRAM
TROUBLESHOOTING
NOTE:
After repairing the trouble, clear the DTC using SDS tool. (4-25)
DETECTED CONDITION POSSIBLE CAUSE
C13/C17 IAP sensor voltage is not within the fol-
lowing range.
0.5 V Sensor voltage < 4.85 V
NOTE:
Note that atmospheric pressure varies
depending on weather conditions as
well as altitude.
Take that into consideration when
inspecting voltage.
• Clogged vacuum passage between throttle body
and IAP sensor.
• Air being drawn from vacuum passage between
throttle body and IAP sensor.
• IAP sensor circuit open or shorted to ground.
• IAP sensor malfunction.
• ECM malfunction.
P1750/
P0105
H
Sensor voltage is higher than specified
value.
• IAP sensor signal circuit is open or shorted to
VCC or ground circuit open.
• IAP sensor signal circuit is shorted to ground or
VCC circuit open.
L
Sensor voltage is lower than specified
value.
When using the multi circuit tester, do not strongly touch the terminal of the ECM coupler with
a needle-point tester probe to prevent terminal damage.
ECM
R
IAP. .
#1
E2
IAP sensor (#1)
IAP sensor (#2)
R
W/R
B/Br
IAP.. #2
Bl/W
B/Br
VCC
15 16 17 18 19 22 2320 21 24 25 26
23456 9107 8 11 12 13
27
28
29 30 31 32 33 34 35
36 37 38 39 40 41 42 43 44
1
14
ECM coupler (Harness side)

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
