8-34 CHASSIS
• Remove the rear sprocket mounting drum retainer B.
INSPECTION AND DISASSEMBLY
TIRE........................................................... (2-23, 8-73)
WHEEL...................................................... (8-9 and 8-73)
AXLE SHAFT ............................................ (8-9)
BRAKE DISC............................................. (8-58)
(Use the front wheel specifications and procedure.)

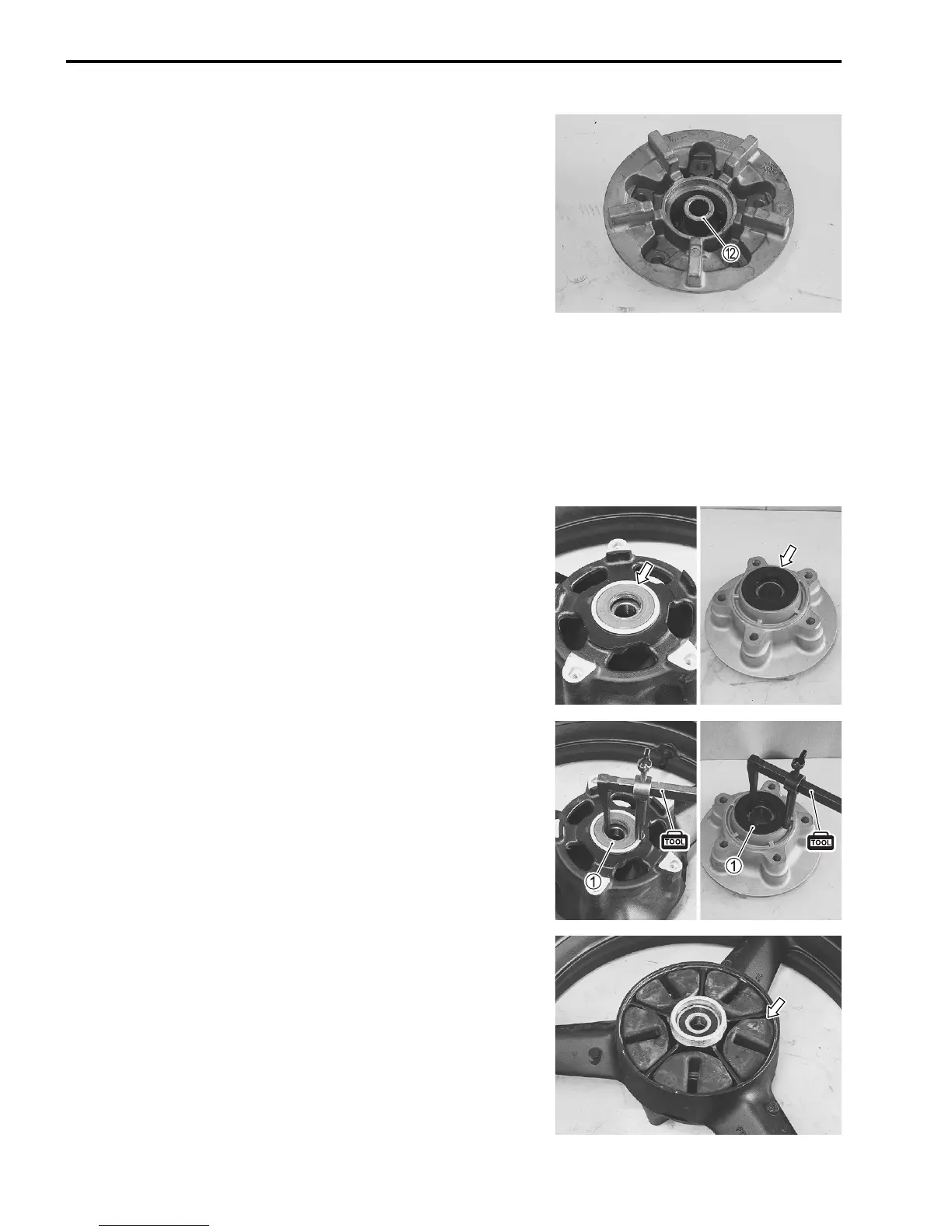

DUST SEAL
Inspect the wheel and sprocket mounting drum dust seal for
wear or damage. If any damage is found, replace the dust seal
with a new one.
• Remove each dust seal 1 using the special tool.
09913-50121: Oil seal remover
WHEEL DAMPER
Inspect the dampers for wear and damage.
Replace the damper if there is anything unusual.
