SERVICING INFORMATION 10-39

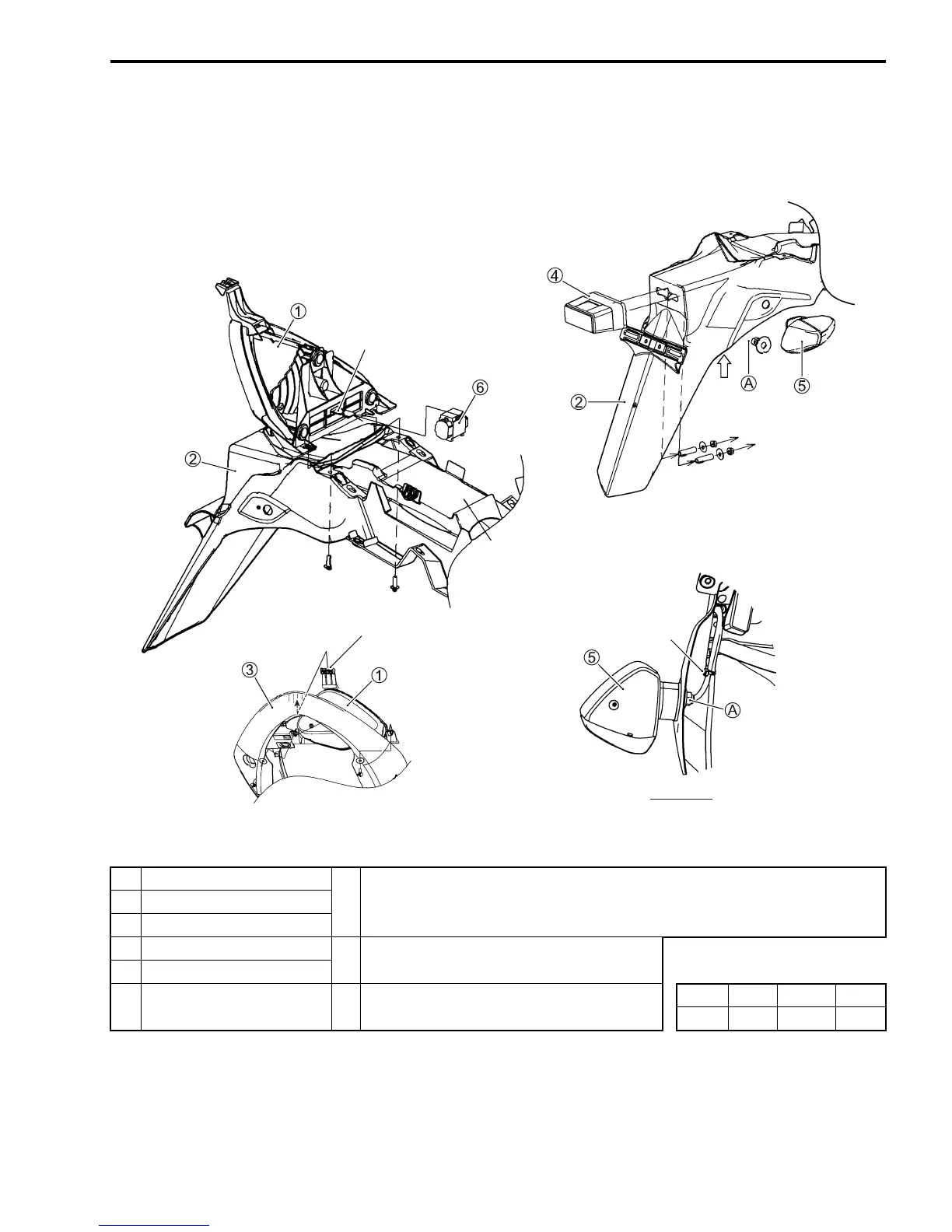

REAR COMBINATION LIGHT INSTALLATION
1 Brake/Tail light
*1
Cut the tip of clamp after clamping the lead wires.
After clamping the rear turn signal light lead wire and license plate light lead
wire, pass the lead wires inside the hole of the rear fender. Do not slacken.
2 Rear fender
3 Rear frame center cover
4 License plate light
*2
When installing the TO sensor, do not
damage the brake/tail light bracket.
5 Rear turn signal light
6 TO sensor *3
Set the cushion of brake/tail light to the
rib of the rear frame center cover.
ITEM N·m kgf-m lbf-ft
A 70.75.0
To Next Page
