5-14 FUEL SYSTEM AND THROTTLE BODY

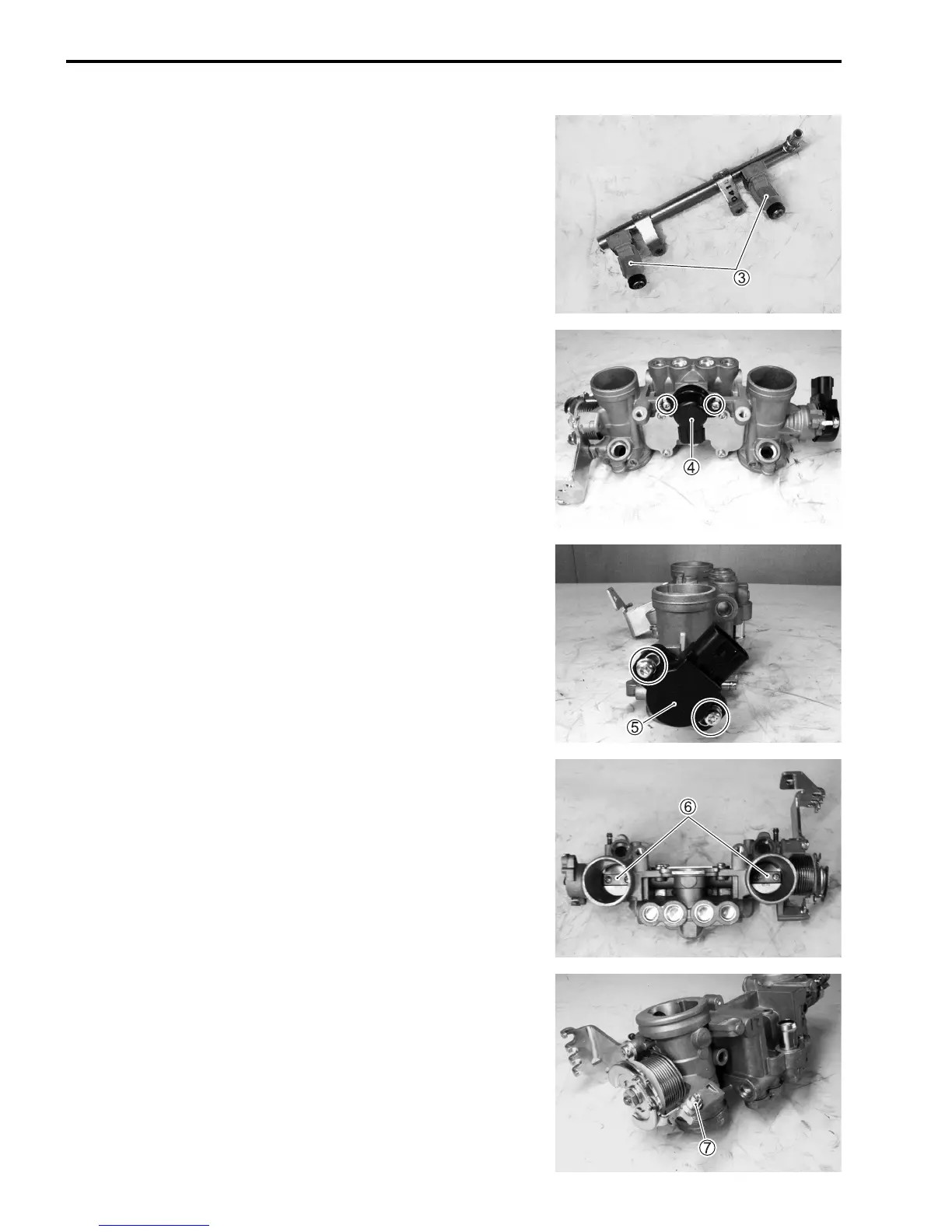

• Remove the fuel injectors 3 from the fuel delivery pipe.
• Remove the ISC valve 4.
• Remove the TP sensor 5 with the special tool.
 09930-11950: Torx
R
wrench (T25H)
NOTE:
Prior to disassembly, mark the TP sensor original position with a
paint or scribe for accurate reinstallation.
NOTE:
Never remove the throttle valves 6.
NOTE:
• The adjusting screw 7 are factory-adjusted at the time of
delivery and do not turn or remove it.
• Don’t push the throttle lever to TP sensor side. (Throttle valve
operating angle: fully opened - fully closed)

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
