8-72 CHASSIS

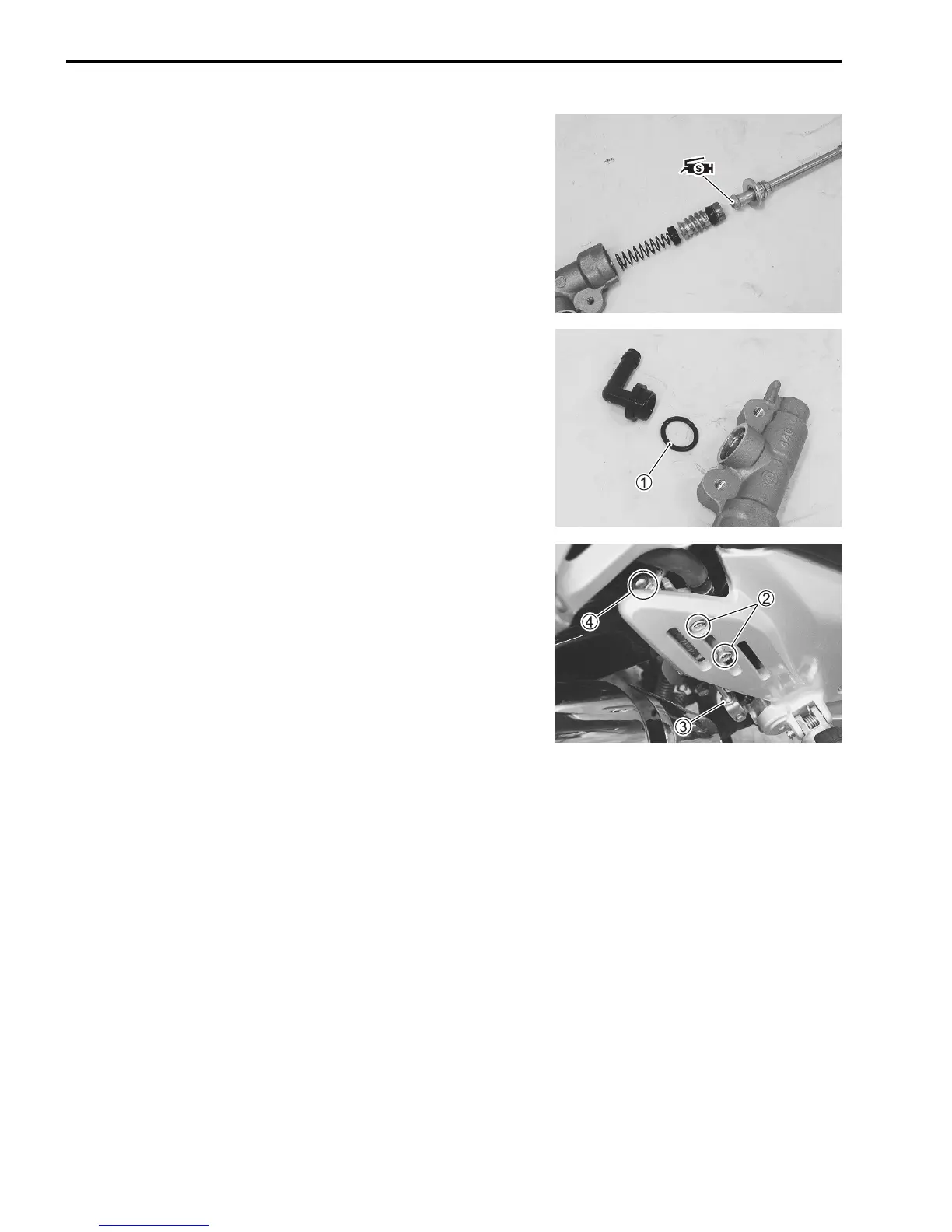

• Apply grease to the push rod end.
 99000-25100: SUZUKI SILICONE GREASE or equivalent
• Install a new O-ring 1.
• Tighten the master cylinder mounting bolts 2 and lock-nut 3
to the specified torque.
 Rear brake master cylinder mounting bolt:
10 N·m (1.0 kgf-m, 7.0 lbf-ft)
Rear brake master cylinder rod lock-nut:
18 N·m (1.8 kgf-m, 13.0 lbf-ft)
• Install the brake hose with union bolt and new seal washers.
• After setting the brake hose union to the stopper, tighten the
union bolt 4 to the specified torque.
 Brake hose union bolt: 23 N·m (2.3 kgf-m, 16.5 lbf-ft)
• Bleed air from the brake system after installing the master cyl-
inder. (2-21 to -22)
• Route the rear brake hose properly. (10-24)
• Adjust the brake pedal height. (2-21)

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
