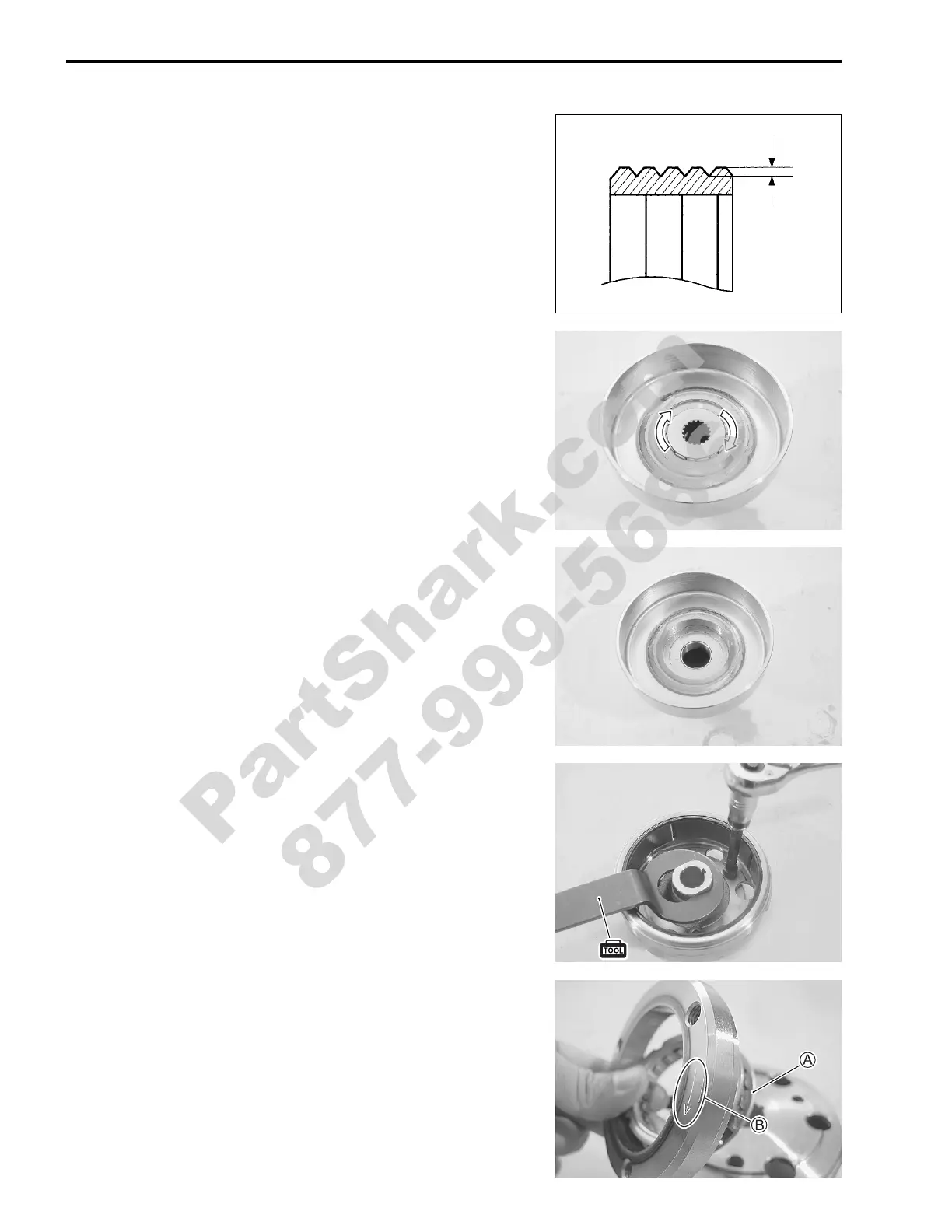

3-40 ENGINE
CLUTCH SHOES
Inspect the clutch shoes for chips, cracks, uneven wear, and
heat discoloration. Also, check the depth of the grooves on the
clutch shoes. If there is no groove at any part of the shoes,
replace the shoes as a set.
NOTE:
The clutch shoes must always be changed as a set.
ONE-WAY CLUTCH
Rotate the inner race by hand to inspect that the inner race turns
in one direction only and never turns in the opposite direction. If
the inner race turns in both directions or is locked, replace the
one-way clutch with a new one.
CLUTCH WHEEL
Remove the inner race and one-way clutch.
Inspect the condition of the clutch wheel inner surface for scuffs,
scratches, cracks or uneven wear. If any damages are found,
replace the clutch wheel with a new one.
STARTER CLUTCH
 Remove the starter clutch securing bolts by holding the rotor
with the special tool.
& 09930-44520: Rotor holder
 Install the starter clutch in the proper direction.
NOTE:
* When installing the starter clutch onto the rotor, make sure that
the flange side
A of the one way clutch faces to the rotor.
* The arrow mark
B must face to the engine side.
 Apply engine oil to the starter clutch.
