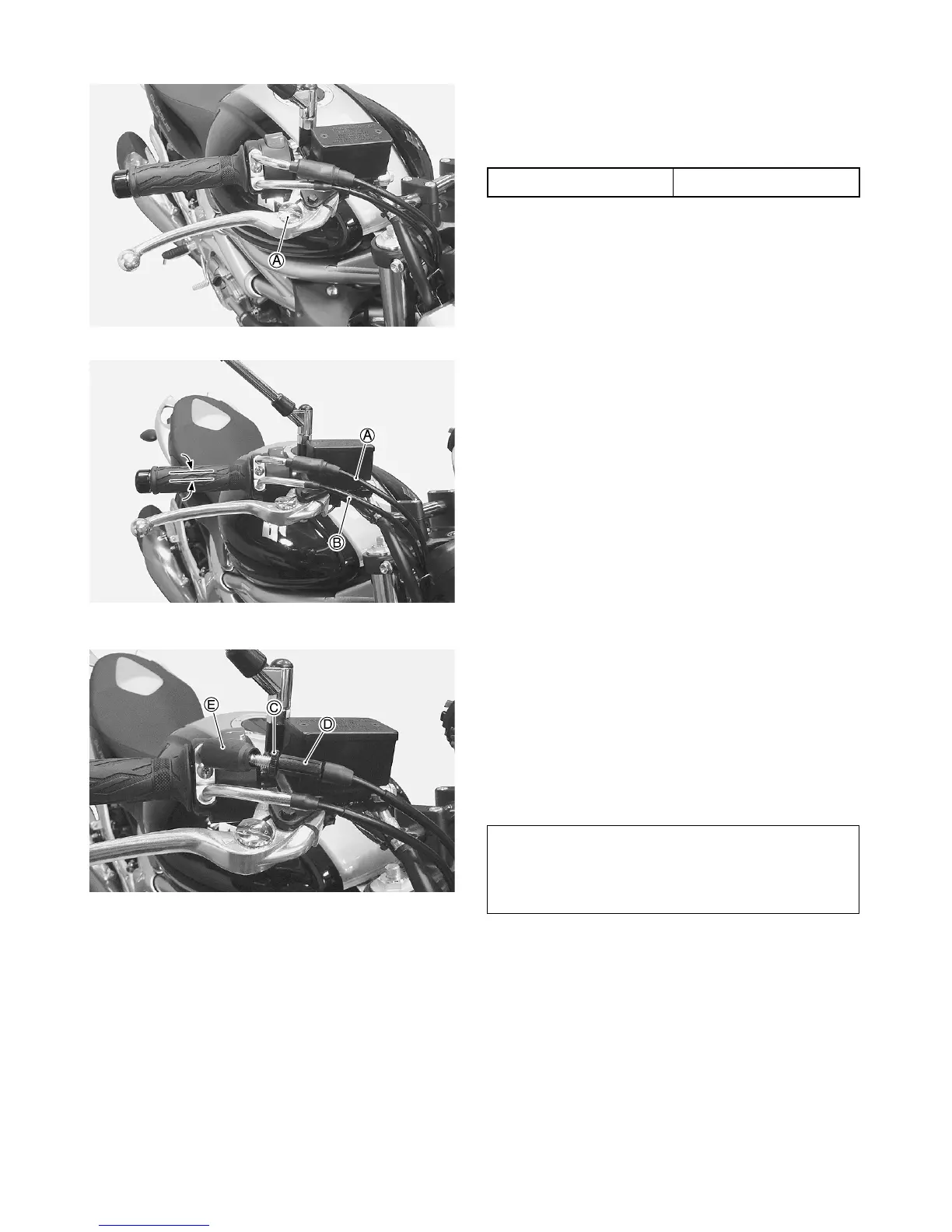

FRONT BRAKE LEVER
Make sure the front brake lever position is correct.
The standard setting for this motorcycle is as indicated
in the table below.
A: Adjuster
THROTTLE CABLE
This motorcycle has a twin throttle cable system.
Cable A is for pulling cable and cable B is for return-
ing.
Check the throttle cable play at the throttle grip.
Throttle cable play: 2.0ā4.0 mm
If adjustment is necessary, carry out the following pro-
cedure.
1. Shift the rubber boot E.
2. Loosen the throttle cable adjuster lock nut C.
3. Turn the adjuster D to obtain the correct play.
4. Tighten the lock nut C while holding the adjuster D.
5. Place the rubber boot E.
ļ
Standard setting Position 3
After the adjustment is completed, check that
handlebar movement does not raise the engine
idle speed and that the throttle grip returns
smoothly and automatically.
