CABLE ROUTING

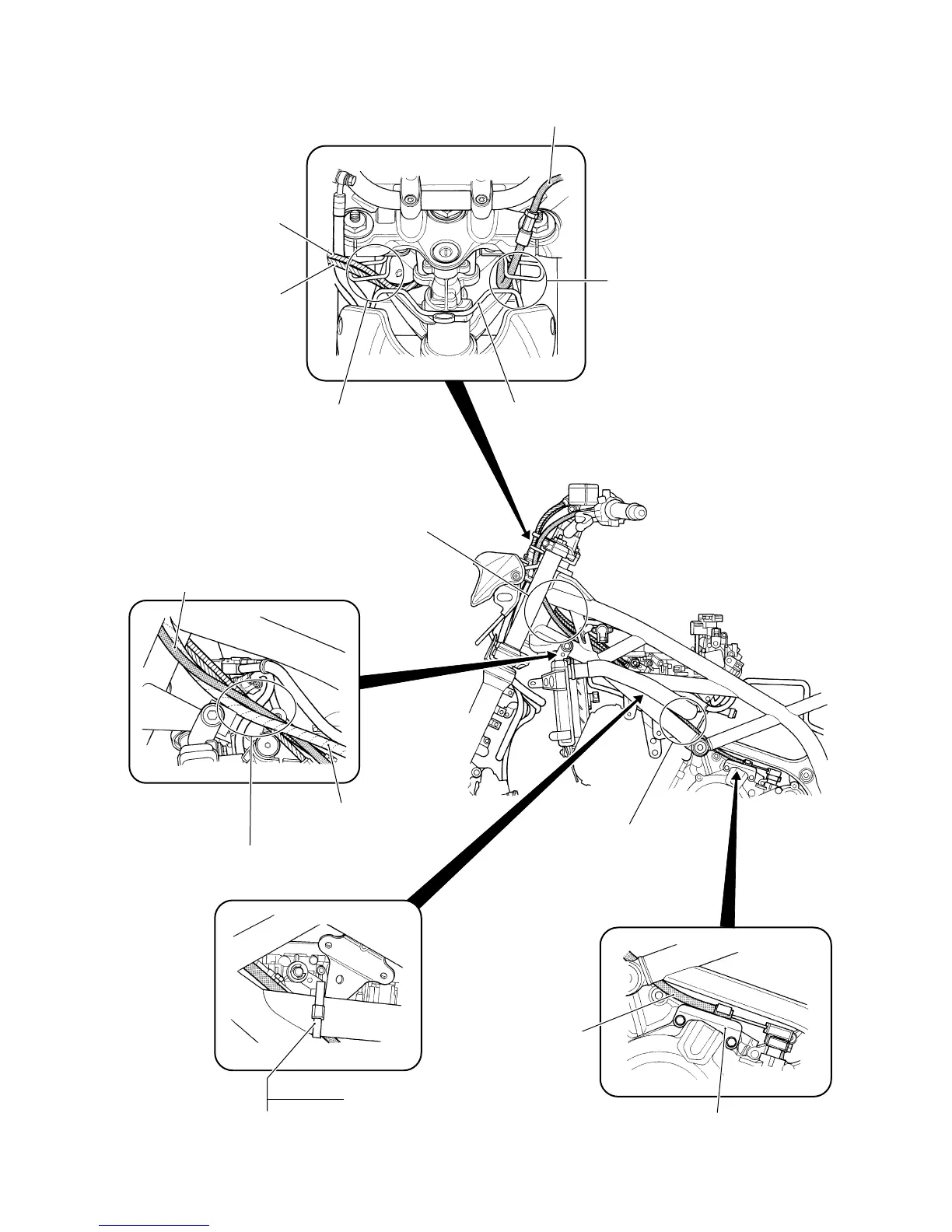

Throttle cable (Pulling)
Throttle cable (Returning)
Pass the throttle cables inside of the throttle cable guide
and behind the headlight housing brace.
Clutch cable
Pass the clutch cable left side of the frame head pipe.
Pass the throttle cables right side of the frame head pipe.
Pass the clutch cable over the wiring harness.
Pass the clutch cable under the
radiator inlet hose.
Pass the clutch cable inside of the
clutch cable guide and behind the
headlight housing brace.
Wiring harness
Clutch cable
Clamp
Clutch cable
Clutch cable
Clutch cable stopper
Headlight housing brace
