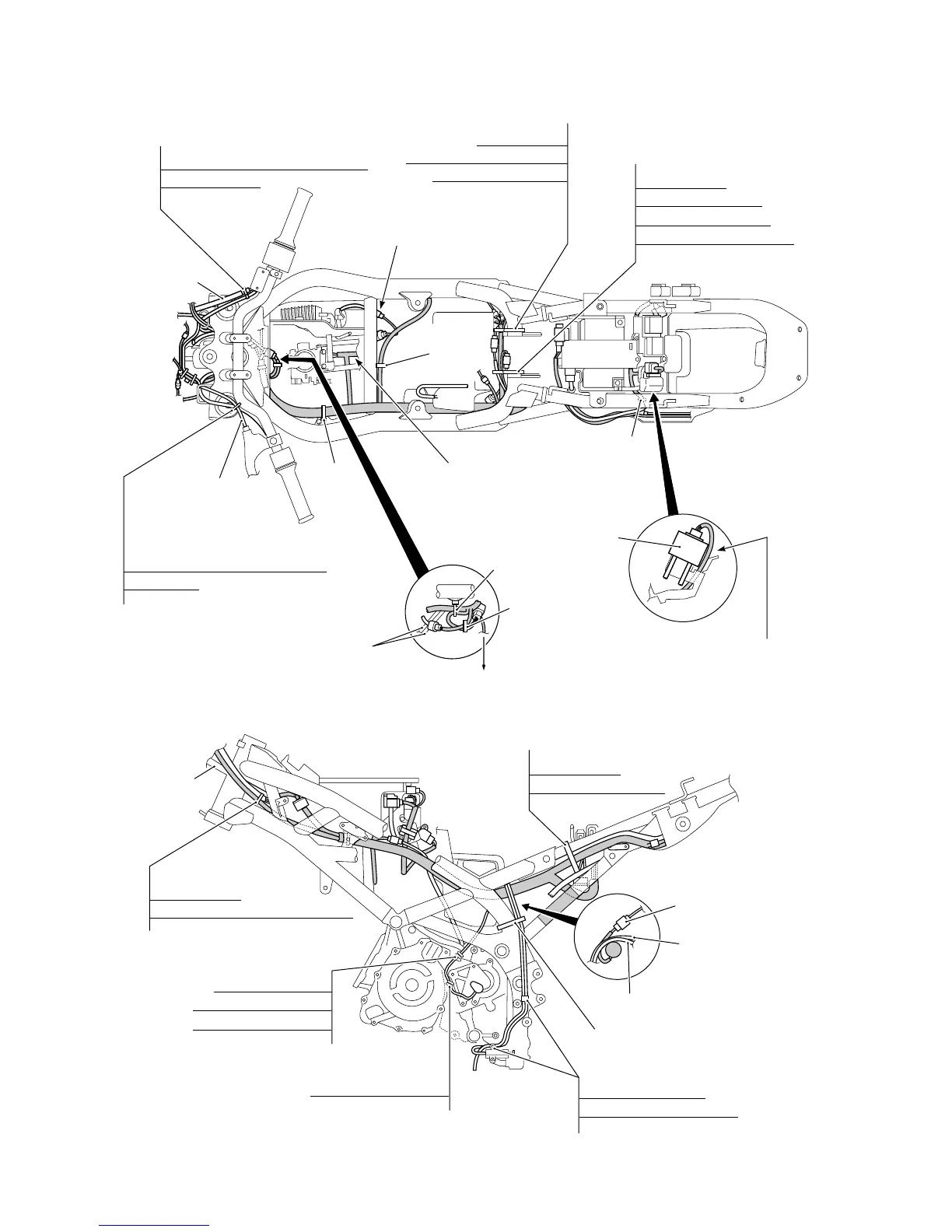

HARNESS ROUTING

Clamp

Pass the ignition coil lead wire

over the regulator/rectifier.

Front brake hose

Clutch cable

Clamp

Throttle cable

To the horn and cooling fan.

Pass the wiring harness under the starter relay.

Wiring harness

Rear brake switch lead wire

Starter motor lead wire

HO2 sensor lead wire

Side stand switch lead wire

HO2 sensor lead wire

2 sensor lead wire

Side stand switch lead wire

Fuel pump lead wire coupler

Generator lead wire

Neutral switch lead wire

Speed sensor lead wire

Handlebar switch wiring harness (L)

Handlebar switch wiring harness (R)

Front brake hose

Starter relay

Pass the fuel injector lead wire between

the intake air pressure sensor vacuum hose

and purge hose.
