28

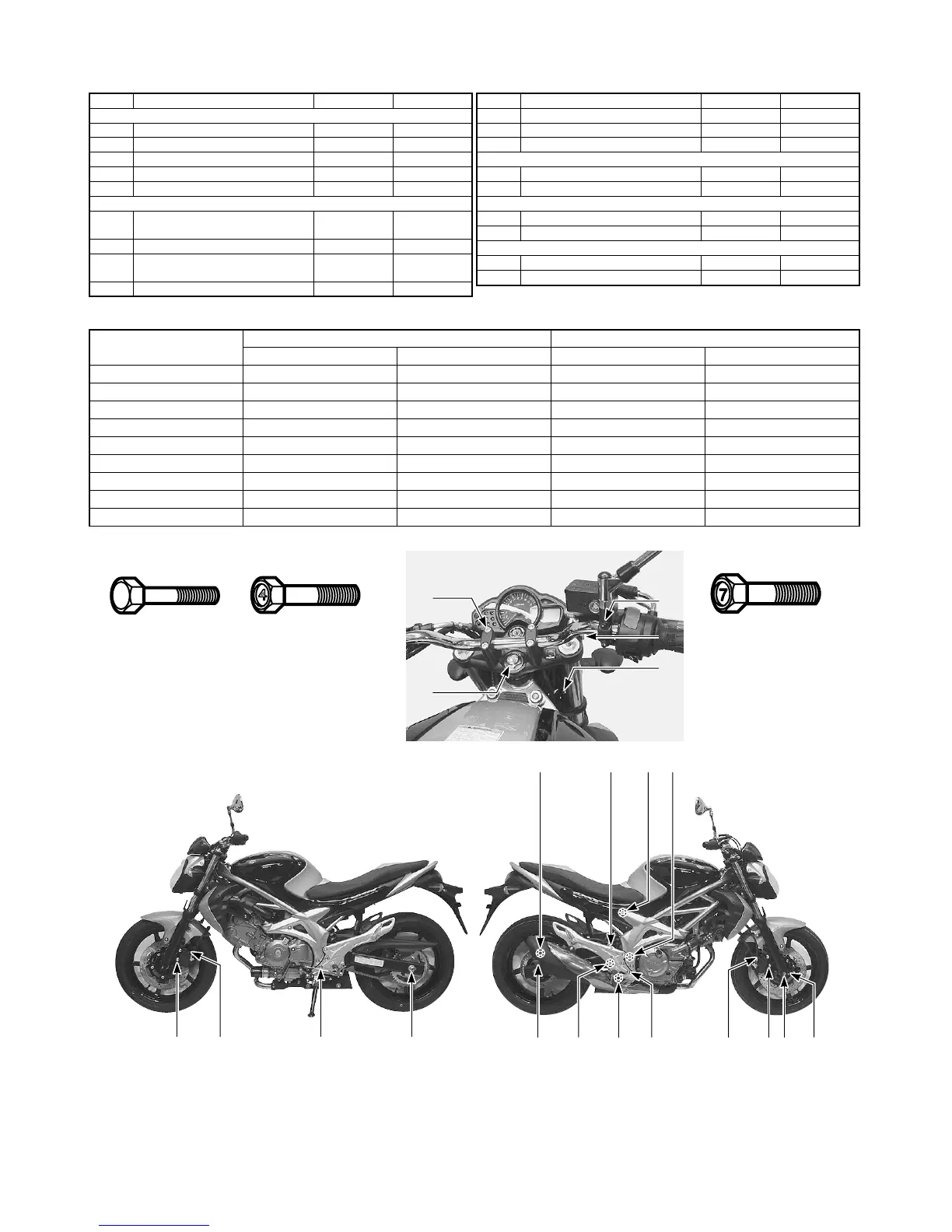

TIGHTENING TORQUE
For other bolts and nuts not listed, refer to this chart.
Item Part Name N·m kgf-m
FRONT FORK
A Handlebar clamp bolt 23 2.3
B Steering stem head nut 90 9.0
C Front fork upper bracket bolt 23 2.3
D Front fork lower bracket bolt 23 2.3
E Front axle clamp bolt 23 2.3
BRAKE
F
Front brake master cylinder mounting
bolt
10 1.0
G Front brake caliper mounting bolt 39 3.9
H
Rear brake master cylinder mounting
bolt
10 1.0
I Rear brake caliper mounting bolt 23 2.3
Item Part Name N·m kgf-m
J Rear brake push rod lock nut 18 1.8
K Brake caliper air bleeder valve (Front) 7.5 0.75
L Brake caliper air bleeder valve (Rear) 6.0 0.60
AXLE
M Front axle 65 6.5
N Rear axle nut 100 10.0
ABSORBER
O Rear shock absorber nut (Upper) 50 5.0
P Rear shock absorber bolt (Lower) 50 5.0
OTHERS
Q Rear swingarm pivot nut 100 10.0
R Front footrest bolt 23 2.3
Bolt Diameter (mm)
Conventional or “4” marked bolt “7” marked bolt
N·mkgf-mN·mkgf-m
4 1.5 0.15 2.3 0.23
5 3 0.3 4.5 0.45
6 5.5 0.55 10 1.0
8 13 1.3 23 2.3
10 29 2.9 50 5.0
12 45 4.5 85 8.5
14 65 6.5 135 13.5
16 105 10.5 210 21.0
18 160 16.0 240 24.0
Conventional bolt
“4” marked bolt
“7” marked bolt
CC
F
F
D
D
AA
B
B
G
K
N
R
ERKGMJ
LHOQ
I P
