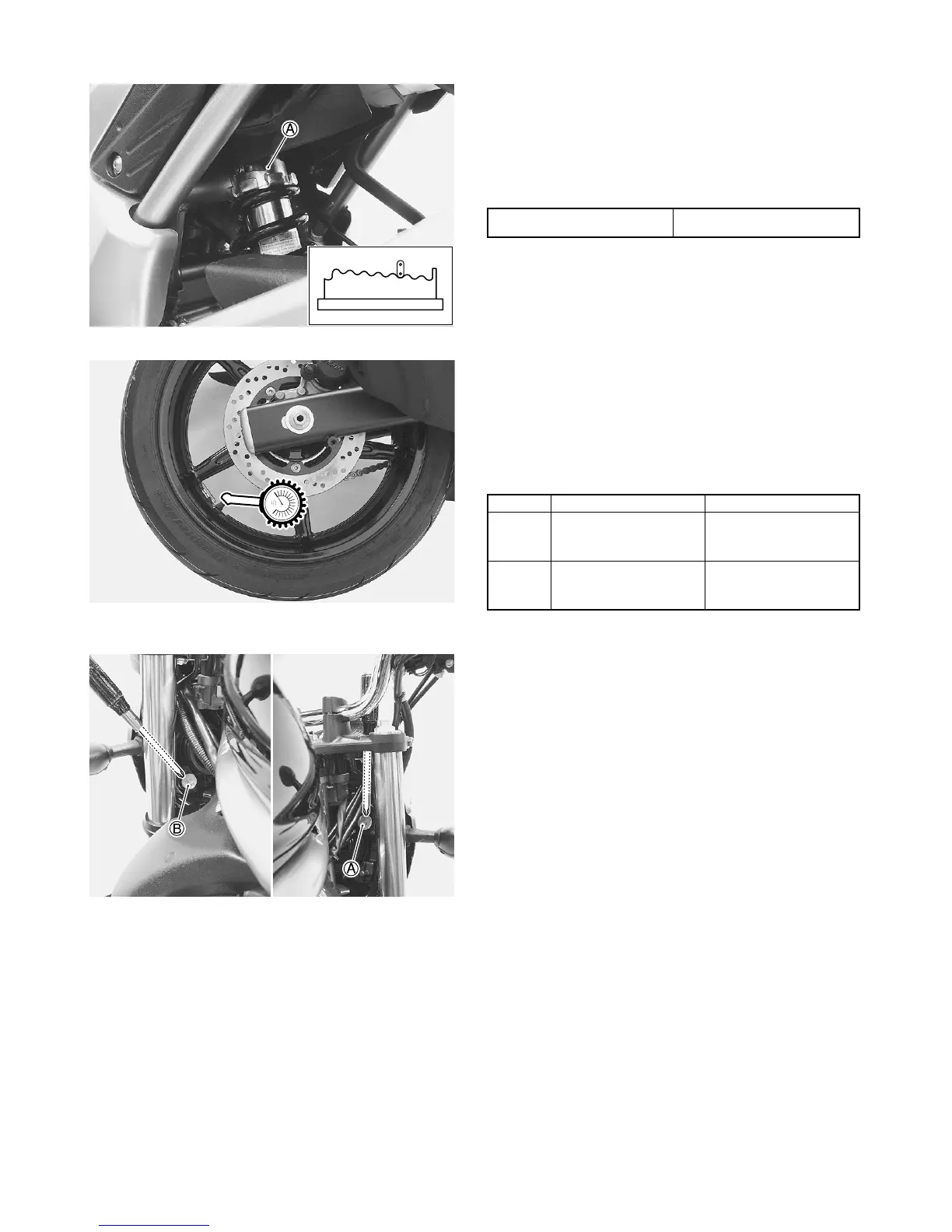

REAR SUSPENSION
Checking spring setting
Make sure the spring setting of the rear suspension is
correct.
The standard setting of this motorcycle is as indicated
in the table below.
A: Adjuster
TIRE PRESSURE
Using an accurate air gauge, check the air pressure of
the front and rear tires.
The pressure should be as indicated in the table
below.
COLD INFLATION TIRE PRESSURE
LEFT RIGHT
HEADLIGHT BEAM ADJUSTMENT
The headlight beam can be adjusted both horizontally
and vertically if necessary.
To adjust the beam vertically:
Turn the adjuster A clockwise or counterclockwise.
To adjust the beam horizontally:
Turn the adjuster B clockwise or counterclockwise.
A: Adjuster (Vertically)
B: Adjuster (Horizontally)
Standard setting Position 3
11
2
3
4
5
6
7
SOLO RIDING DUAL RIDING
FRONT
225 kPa
2.25 kgf/cm
2
33 psi
225 kPa
2.25 kgf/cm
2
33 psi
REAR
250 kPa
2.50 kgf/cm
2
36 psi
250 kPa
2.50 kgf/cm
2
36 psi
