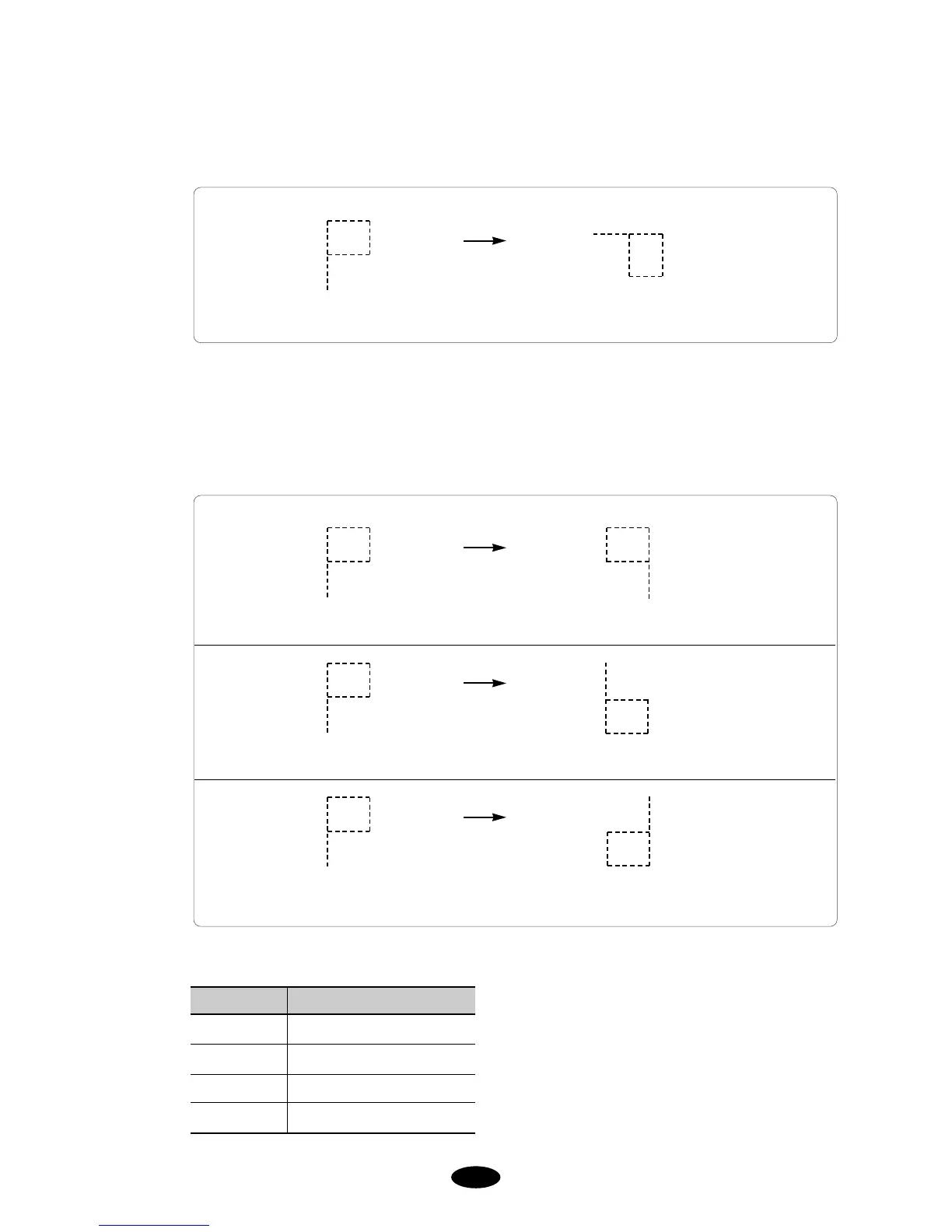

③
Angle
T
urns around the embroidery design according to the rotation angle value set.
The default is 0
°
, and the value can be adjusted from 0
°
to 359
°
by the unit of 1
°
.
④
Mirror
Reverses a design based on X, Y
, or X,Y axes.
The default is
“
0
”
or
“
normal work
”
.
< 0
°
>
< 90
°
>
< No >
< X-axis >
< No >
< Y-axis >
< No >
< X_Y-axis >
V
alue
Description
0
Basic Setting
1
X-axis reverse
2
Y
-axis reverse
3
X, Y
-axis reverse
55
57
Table of Contents
Default Chapter
4
Table of Contents
4
1 Operation Box
6
Part Name and Function
6
2 Basic Steps before Starting Embroidery
8
Embroidery Machine Power-On
8
Basic Steps
11
3 Operating Program Install
12
SWF Install Program
13
Install
13
Backup
15
Memory
16
System
18
Machine Setting Change
20
Embroidery Machine Specifications Setting
21
Machine and Signal Setting
24
4 Operating Program Screen Layout
25
Embroidery Screen
25
Work Information Screen
26
Function Menu Button Screen
27
Work Progress Message and Clock
28
Work Progress Messages
28
Date and Time Change
29
5 Function Menu before Embroidery Begins
30
Structure of the Menu before Embroidery Begins
31
Design Call
32
Input/Output
40
FDD Input
41
USB Input
46
CF Card Input
48
Serial Input
50
Setting
52
Basic Setting
54
EMB Parameter Setting
60
M/C Parameter Setting
64
Needle Setting (Color)
68
Frame Offset Setting
79
Options Setting
81
The Other Settings
89
Ready
96
Position
97
Gauge
98
Exclude
99
Fastview
100
Trace
103
Repeat
104
General Repeat
105
Special Repeat
118
Repeat Load
125
Edit
126
Stitch Edit
127
Design Divide
132
Design Filtering
137
Design Zoom in
138
Machine
140
Machine Service
141
Machine Information
142
Machine Test
142
Frame Origin
144
Error Information
145
Thread Break Information
145
Memory Initial
145
Tools
146
Origin
147
Holding
147
Needle DN/UP
147
Language
147
Sequin Lift / Sequin Feed
147
Trim
147
Pf Up/Down
147
6 Function Menu During Embroidery Pause
148
Structure of Function Menus
150
Design Call
151
Setting
152
Float
153
Frame
154
Speed Code
155
7 Troubleshooting
156
Error Messages and Handling
156
Main Shaft Motor and Others
156
X, y Motor-Related Errors
156
Color Change
157
Encoder
157
Repeat Work
157
Floppy Diskette and Communications
158
Memory
159
USB Memory
160
Fuse Install and Replace
161
Block Diagram
163
