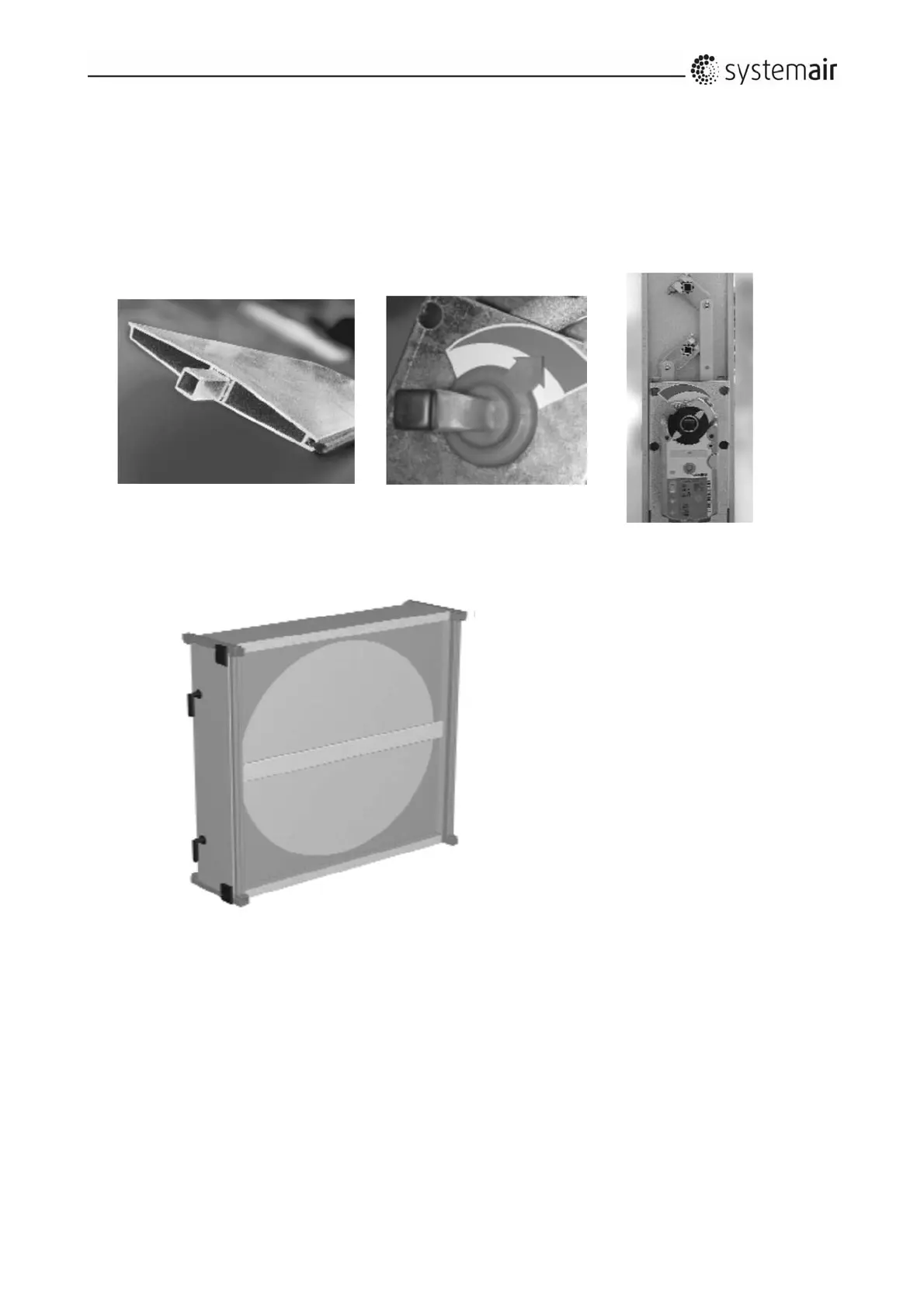

r.4.2Dampers
Rubbersealsbetweenthedamper
bla desthemselves  andbetweenthe dam perbladesandtheframeare
tobecheckedonceayear.Thesesealsarenot to belubricatedortreatedinanyotherway.
Eachdamperbladeisconnected byapivotingsystem.Thesteelrodsandbrassbushesdo not require
lubrication
. 
Thedamperbladesarefittedwithsyntheticbearingsrequiringnolubrication.Air‐tightnessofthedamper,
whenthedampermotor isintheclosedposition,mustbevisuallychecked onceayear.Thedampermotor
istobeadjustedifthedamperdoesnotclosetightly.







r.4.3
RotaryheatexchangerDVC














r.4.3.1Rotor
Therotoristobecheckedatleastonceayeartoensurethatitcanturnfreelyandeasily.Thiscanbedone
byremovingthebeltdriveatthemotorandthenturningtherotormanuallywitha
handontheperipheral
rotorcasing.Atthesametimethebrushsealsaretobecheckedfordamage.Thebearingsarefactory
lubricatedanddonotrequireanyservicelubrication.Duringoperationtherotorcanbecomedirty.The
rotorcanbecleanedbyblowingthroughwithcompressedair.
To 
easeinspectionandservicethe r otor canbepulledoutofthesizes10,15,20,25og30.


