7—2



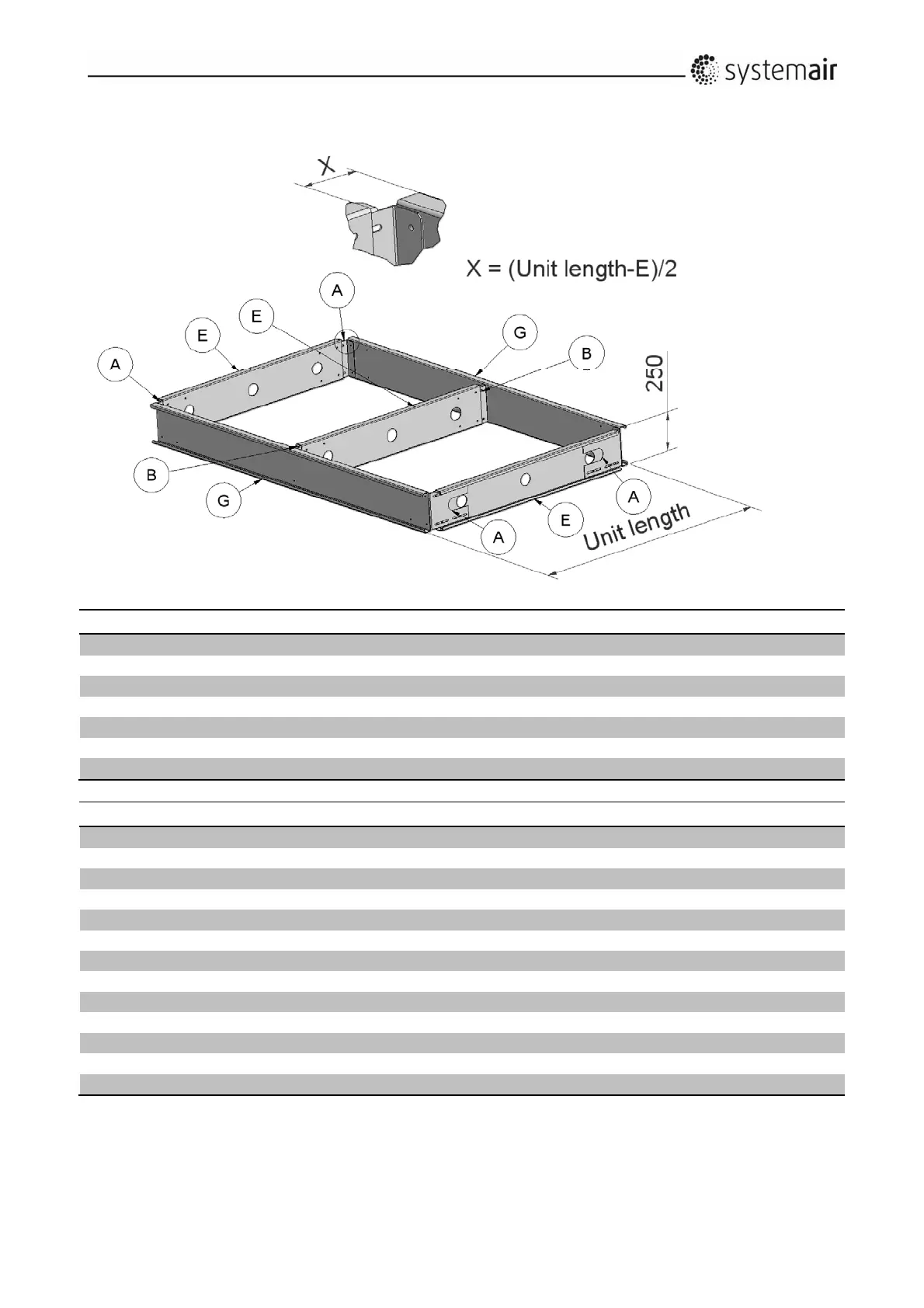

7.1Baseframelength720–2420[mm]Unitsize50‐150



WidthprofiletypeG

Unitsize Quantity Length[mm]

DV-50 2 1920

DV-60 2 2070

DV-80 2 2070

DV-100 2 2270

DV-120 2 2490

DV-150 2 2790



E A B

Framelength[mm] Quantity Length[mm] Quantity Quantity

700-770 3 520 4 2

770-920 3 670 4 2

920-1070 3 820 4 2

1070-1220 3 970 4 2

1220-1370 3 1120 4 2

1370-1520 3 1270 4 2

1520-1670 3 1420 4 2

1670-1820 3 1570 4 2

1820-1970 3 1720 4 2

1970-2120 3 1870 4 2

2120-2270 3 2020 4 2

2270-2420 3 2170 4 2




