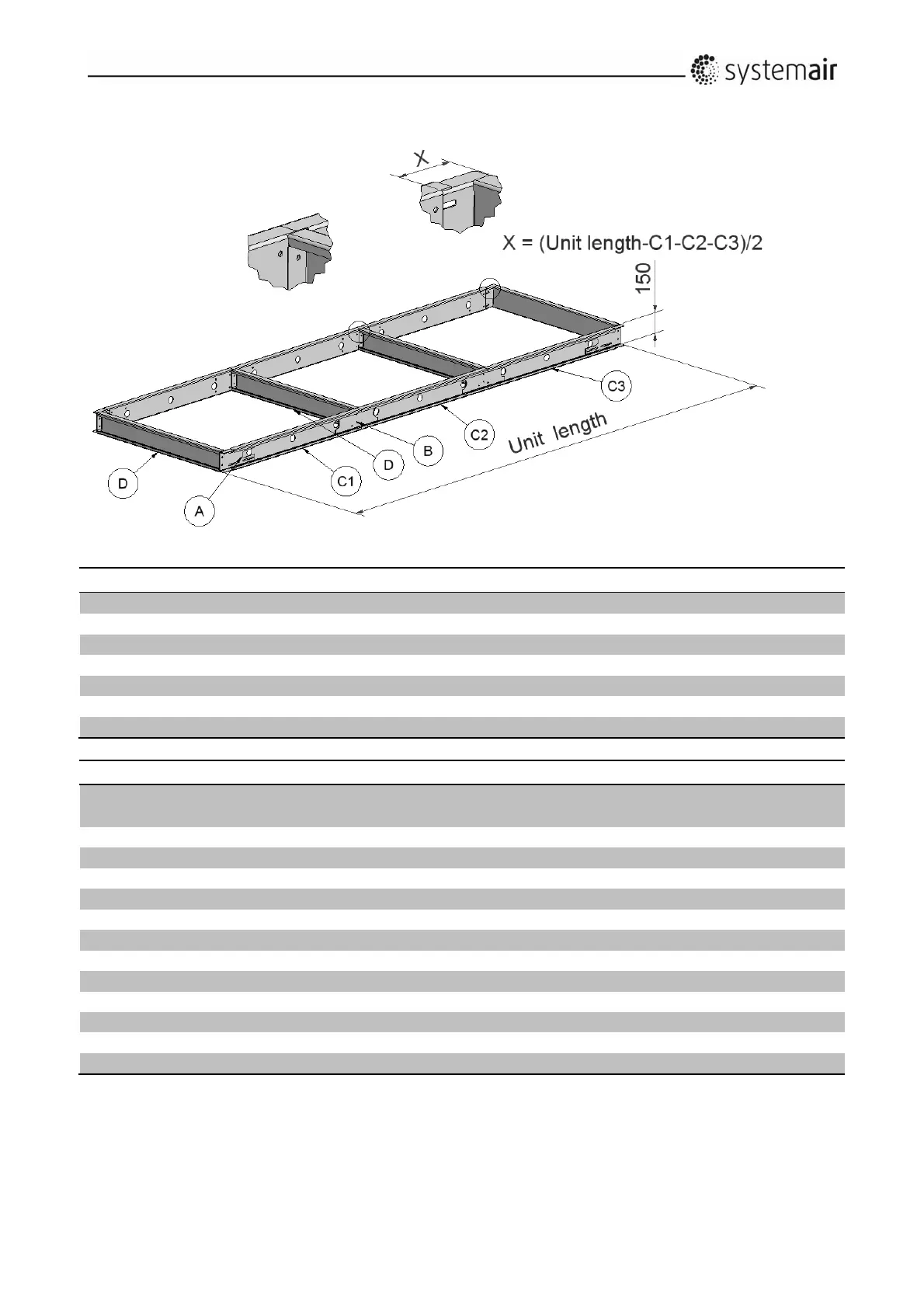

4.3Baseframelength4590–6200[mm]Unitsize10‐40
WidthprofiletypeD
Unitsize Quantity Length[mm]
DV-10 4 876
DV-15 4 1026
DV-20 4 1176
DV-25 4 1326
DV-30 4 1476
DV-40 4 1626
C1 C2 C3 A B
Framelength
[mm]
Quantity Length
[mm]
Quantity Length
[mm]
Numbe
Length
[mm]
Qty Qty
4590-4740 2 1420 2 1500 2 1570 4 4
4740-4890 2 1570 2 1570 2 1500 4 4
4890-5040 2 1720 2 1500 2 1570 4 4
5040-5110 2 1720 2 1720 2 1500 4 4
5110-5260 2 1720 2 1720 2 1570 4 4
5260-5410 2 1720 2 1720 2 1720 4 4
5410-5560 2 1870 2 1720 2 1720 4 4
5560-5710 2 1870 2 1870 2 1720 4 4
5710-5860 2 1870 2 1870 2 1870 4 4
5860-6010 2 2020 2 1870 2 1870 4 4
6010-6160 2 2020 2 2020 2 1870 4 4
6160-6200 2 2020 2 2020 2 2020 4 4
