5—3

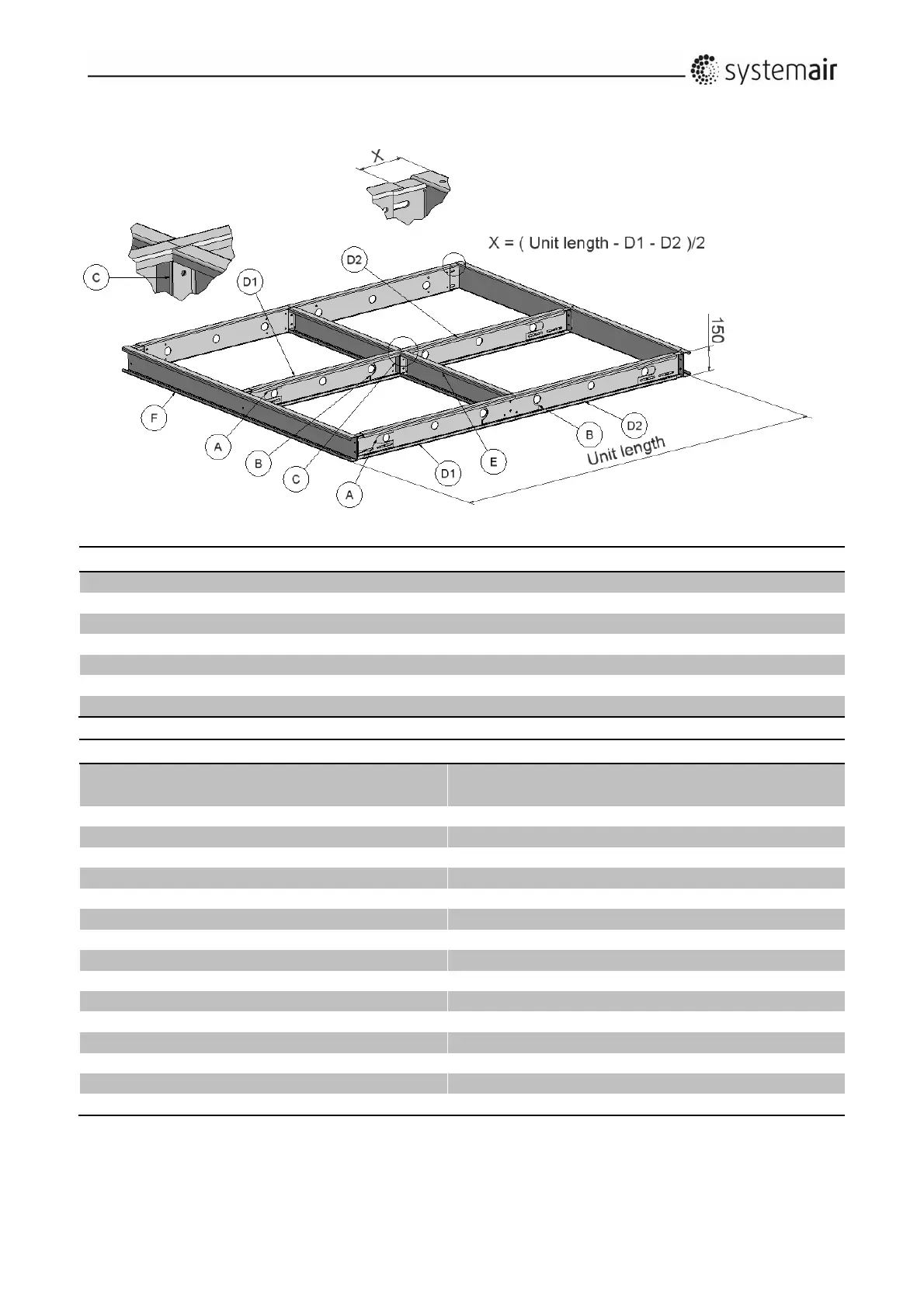

5.2Baseframelength2420–4590[mm]Unitsize50‐150
WidthprofiletypeF WidthprofiletypeE
Unitsize Quantity Length[mm] Length[mm]
DV-50 2 2020 940
DV-60 2 2170 1015
DV-80 2 2170 1015
DV-100 2 2370 1115
DV-120 2 2590 1225
DV-150 2 2890 1375
D1 D2 A B C E
Framelength
[mm]
Quantity Length
[mm]
Quantity Length
[mm]
Quantity Quantity Quantity Quantity
2420-2570 3 1120 3 1200 6 3 1 2
2570-2640 3 1270 3 1200 6 3 1 2
2640-2790 3 1270 3 1270 6 3 1 2
2790-2940 3 1270 3 1420 6 3 1 2
2940-3090 3 1420 3 1420 6 3 1 2
3090-3240 3 1420 3 1570 6 3 1 2
3240-3390 3 1570 3 1570 6 3 1 2
3390-3540 3 1570 3 1720 6 3 1 2
3540-3690 3 1720 3 1720 6 3 1 2
3690-3840 3 1720 3 1870 6 3 1 2
3840-3990 3 1870 3 1870 6 3 1 2
3990-4140 3 1870 3 2020 6 3 1 2
4140-4290 3 2020 3 2020 6 3 1 2
4290-4440 3 2020 3 2170 6 3 1 2
4440-4590 3 2170 3 2170 6 3 1 2
