8—4



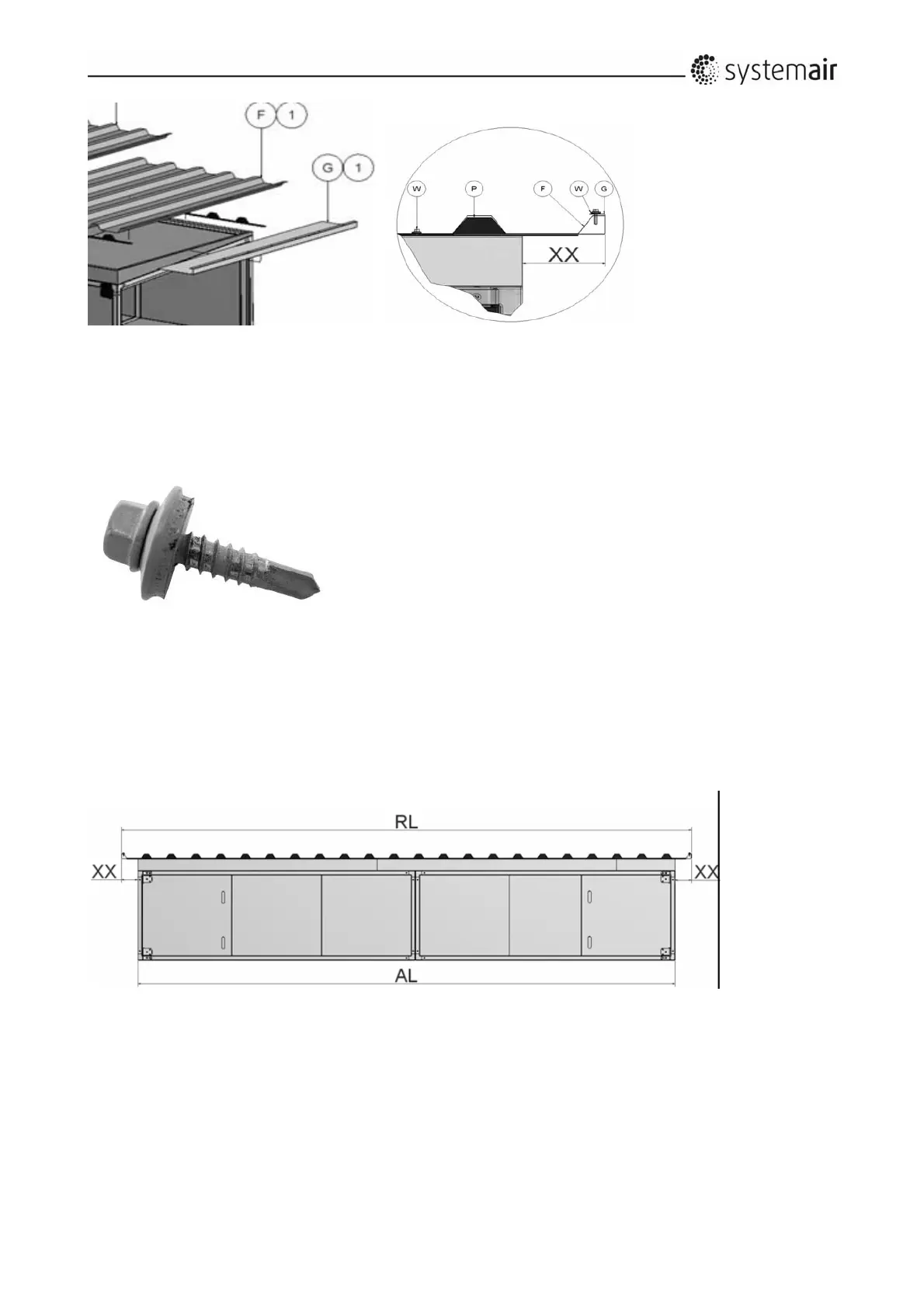

Theunitisdeliveredwith2similaroverhangprofiles‐G1andG5‐oneforeachendoftheroof.Mountone
ofthe2roofoverhangprofiles–Gonatrapezoidalroofplate.Usetheselfdrilling,paintedscrewswith
sealingwashers‐W‐seetheillustration.
Note:Foambands‐
P–arenecessarybetweentheoverhangprofileG1andtheroofplateF1.Seethe
illustration.

Self‐drilling,paintedscrewssuppliedwithsealingwasherforthemountingofthetrapezoidalplatetothe
roofoverhangprofile.
Thetotalcoverwidthofthetrapezoidalroofplatesalwayschangeswiththe
pitchof205mmbetweenthe
trapezoidalribs,makingupatotallengthofthecompleteroofof‐forexample2100mm,2305mm,2510
mmandsoon.WecallthislengthofthetotalroofforRLandwecallthetotallengthofthecompleteunit
forAL.
Thetrapezoidalroofmustalwaysbelongerthantheunit,toobtainareasonableoverhangcalled–
XX‐oftheroofatbothends.

Inthetablebelowyouwillfind40differentlengthsofroofs(alwayschangingwiththe205mm)andthe
lengthsofunitsthatareideal
foreachofthe40alternativerooflengths.

Measurethetotallength–ALoftheunit–forexample5000mmbetweenthe4982and5182mm
mentionedinthetablebelow.


