4 SysAqua
SysAqua units are tted with an electronic control system. It provides the command, control and alarm
functions.

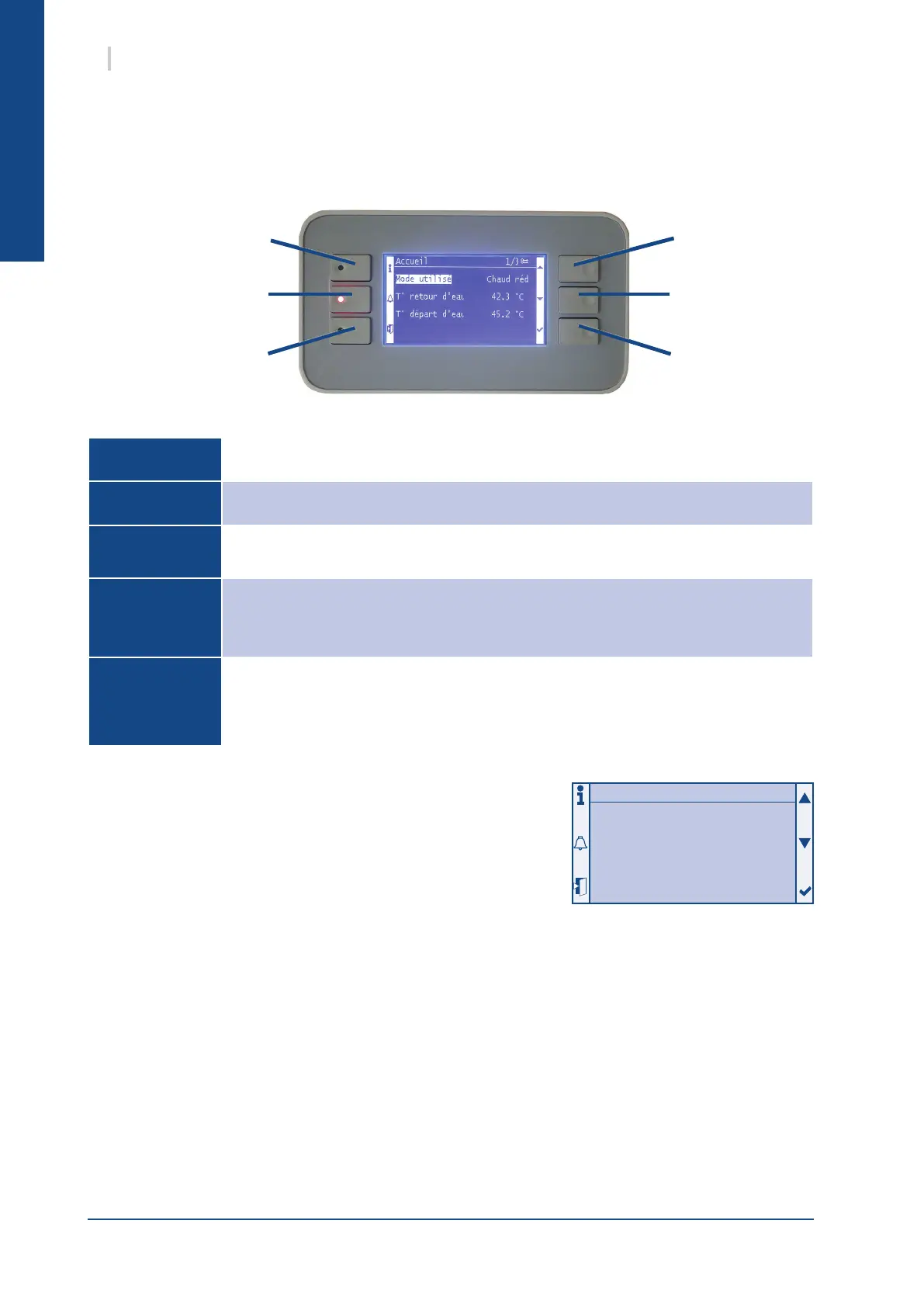

This terminal has a liquid crystal display and has 6 buttons.
Alarm
Info
Escape
Up
Down
Enter
INFO
From any screen, this button returns the user to the main menu or home screen and, like the ESCAPE button,
invalidates a current modification.
ALARM
When pressing the alarm button (the red LED flashes if an alarm is active), the alarm management menu is
displayed. (see § alarms)
ESCAPE
Returns to the previous level in the menu tree. Pressing this button during modification invalidates the
change being made and returns the user to the previous menu. This function is very important if a setting is
inadvertently modified.
UP/DOWN
These buttons have two functions.
1. In a menu, they are used to move up and down the list of possible options.
2. They can change the value of a setting when it has been selected.
ENTER
This button has three functions
1. It is used to access a submenu
2. Activate the modi cation of a setting
3. Validate the modi cation of a setting
The home page is used to quickly display the state of the machine by
displaying the following Information:
² Operating mode
² Water return temperature
² Water ow temperature
2.1. USER INTERFACE
2.1.1. KEYPAD
2.1.2. HOME PAGE
2. SPEED CONTROLLER
