Takeuchi TB290 User Manual

6-6
TROUBLESHOOTING
IF A FUSE BLOWS
If a light does not come on or the electrical
system does not work, a fuse may be blown.
Inspect the fuses.

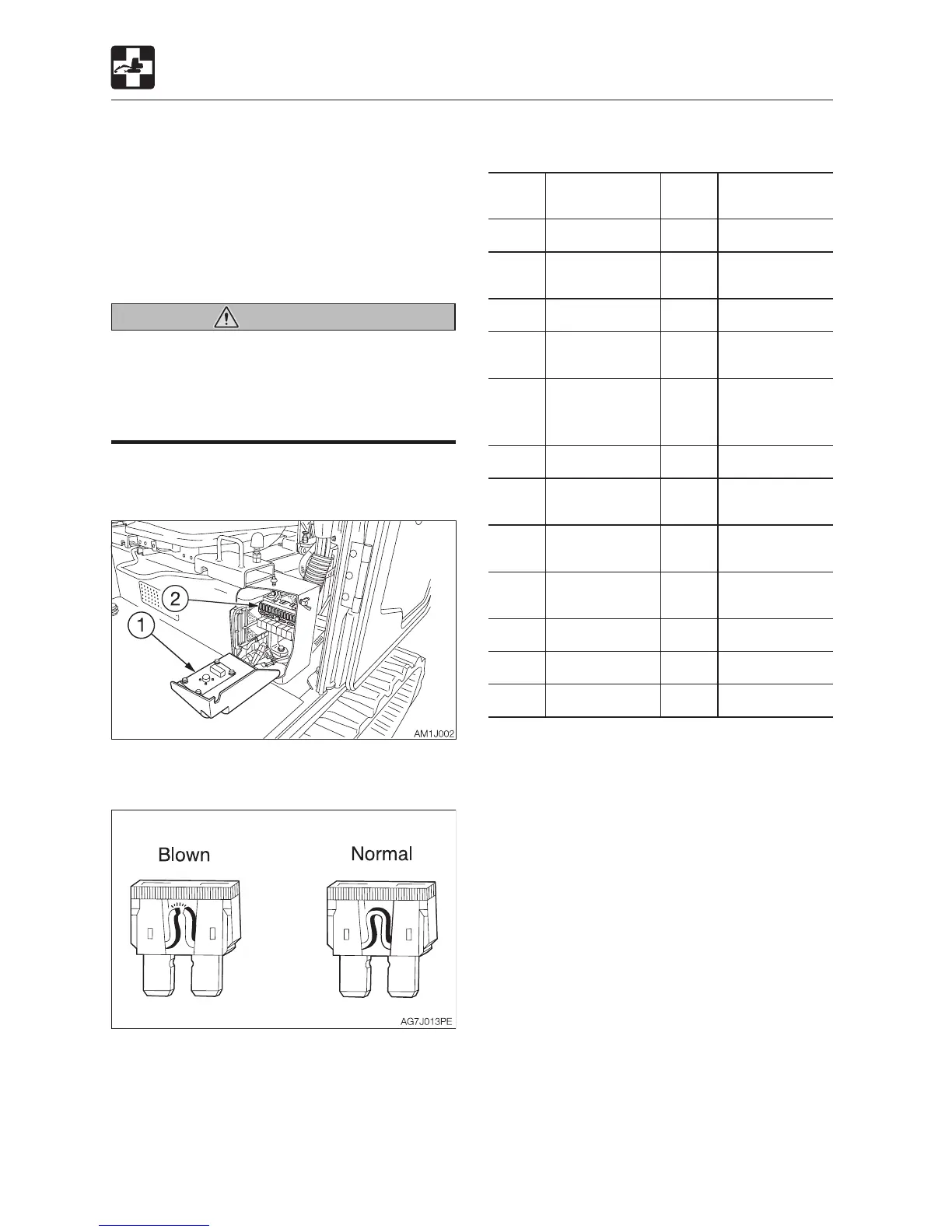

INSPECTING AND REPLACING THE FUSE
Warning
If the fuse blows again soon after
replacement, then the electric system is
likely faulty. It may pose a fire hazard if
not properly repaired. Contact your sales
or service dealer for advice.
1. Turn the starter key to the OFF position to
stop the engine.
IF A FUSE BLOWS
2. Open the fuse box cover (1).
3. Check for any blown fuses (2).
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse layout and circuits protected
Capacity
Protected
circuit
Capacity
Protected
circuit
15A ECM (ACC) 25A Light
10A
Starter switch
(C)
10A Wiper
5A Controller (B) 20A Solenoid
10A
Horn,
interior
light
10A
Controller
(ACC)
20A
Cigarette
lighter, radio,
beacon lamp
10A Alarm
25A
Air conditioner
blower
10A
Air conditioner
compressor
5A
Air conditioner
controller
25A Option (1)
15A Option (2)
25A Option (3)
