CONTROLS
AUXILIARY HYDRAULIC LINES
ACCESSORIES
Warning
Oil may spurt out if pipes disconnected
before releasing the pressure in the
hydraulic system.
•Immediatelyaftertheengineisstopped
and while the safety lock lever is still in
the unlock position, turn the starter
switch to ON and press each auxiliary
hydraulic switch several times to
release the pressure from the auxiliary
hydraulic circuit.
•Presstheairbreatherbuttontorelieve
the tank pressure.
•Whendisconnectinghoses,standtothe
side and loosen them slowly to
gradually release the internal pressure
before removing.
These lines deliver the hydraulic oil necessary
for operating a hydraulic breaker, crusher or
other attachments.

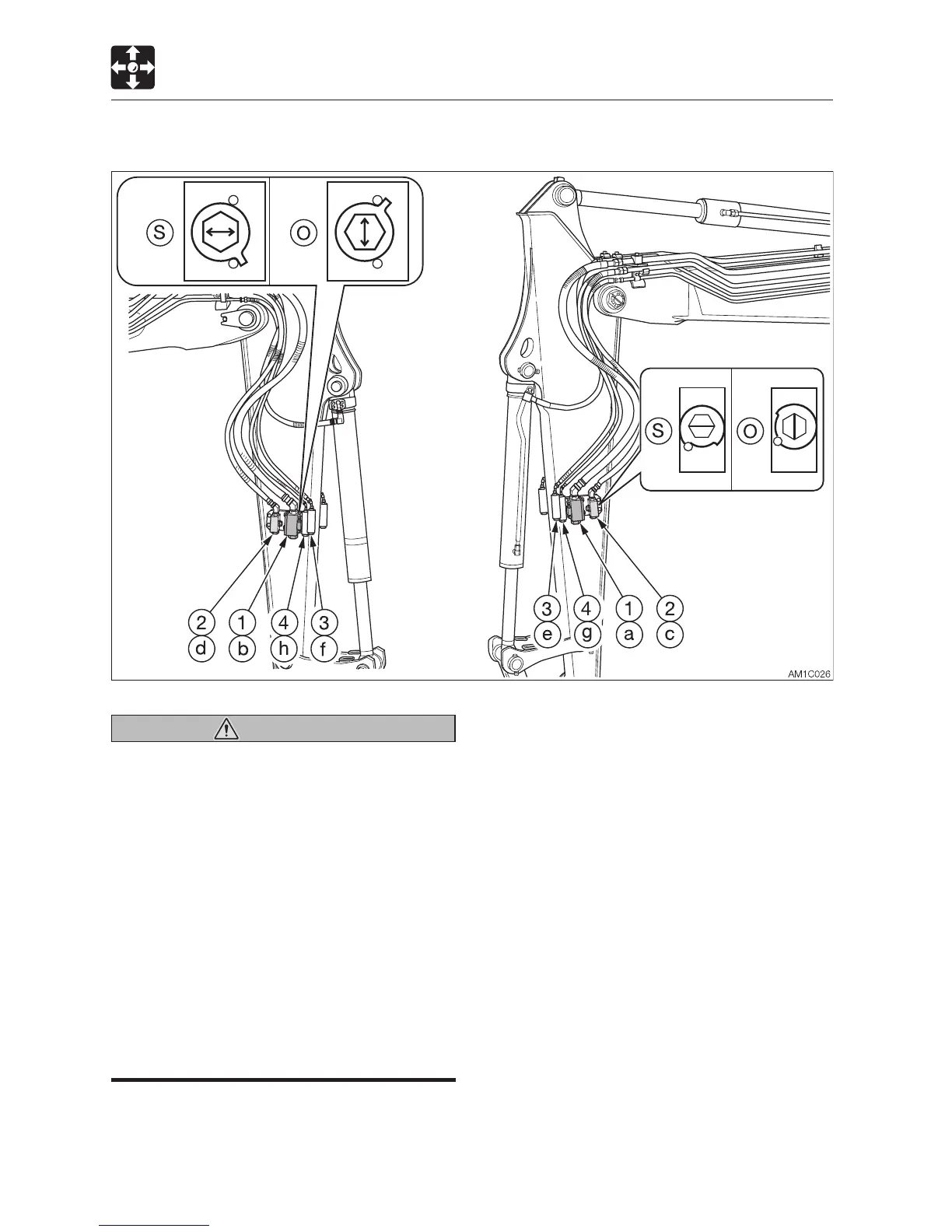

(1)
.......First auxiliary hydraulic lines
(2) .......Second auxiliary hydraulic lines
(3) .......Third auxiliary hydraulic lines
(4) .......Fourth auxiliary hydraulic lines
Stop valve
(S) : Closed
(O) : Open
