Transmitting Waveforms
«•-
Digitized waveforms may be transmitted to an external device for printing,
plotting, storage, or waveform analysis. Every instrument is equipped with
an auxiliary connection for an analog X-Y plotter. Most applications, however,
require either a GPIB (Option 10) or RS-232-C (Option 12) interface.
Communicating via
interface Options
The RS-232-C or GPIB interface is usually ordered as factory installed;
however, you can order either interface separately for installation on existing
instruments. (Only one interface can be installed in the instrument at a time.)
The two interface options are depicted in Figure 3-42 and Figure 3-43.
The 2221A, 2224, & 2232 Optional GPIB & RS-232-C Interfaces User Manual
(070-8159-01) provides you with information about connecting the GPIB and
RS-232-C communication options to external printers, plotters, or computer
ports.
I AUXILIARY CONNECTOR 1
RELAY N ,0 ------ 1 r — RELAY COMM
+A.2VDC —| | [ pSIGGND
t --- u... . ....... - .... — - ...... . ............ . ....
extclk— J i * Y
RELAY N.C.— ' X * * - SHIELD GND
in... . iminim mi .. . . .............. ■ ......
PARAMETERS
r 5
' t r 6
' K8
RS-232-C PORT
oooooooooooo
RS232
DTE
CAUTION
< 2 5 V p k AN D < 100m A ABS, MAX
APPLIED TO ANY CONNECTOR
( ( o ) I r ........... .. ............ A (5
RS232
DCE

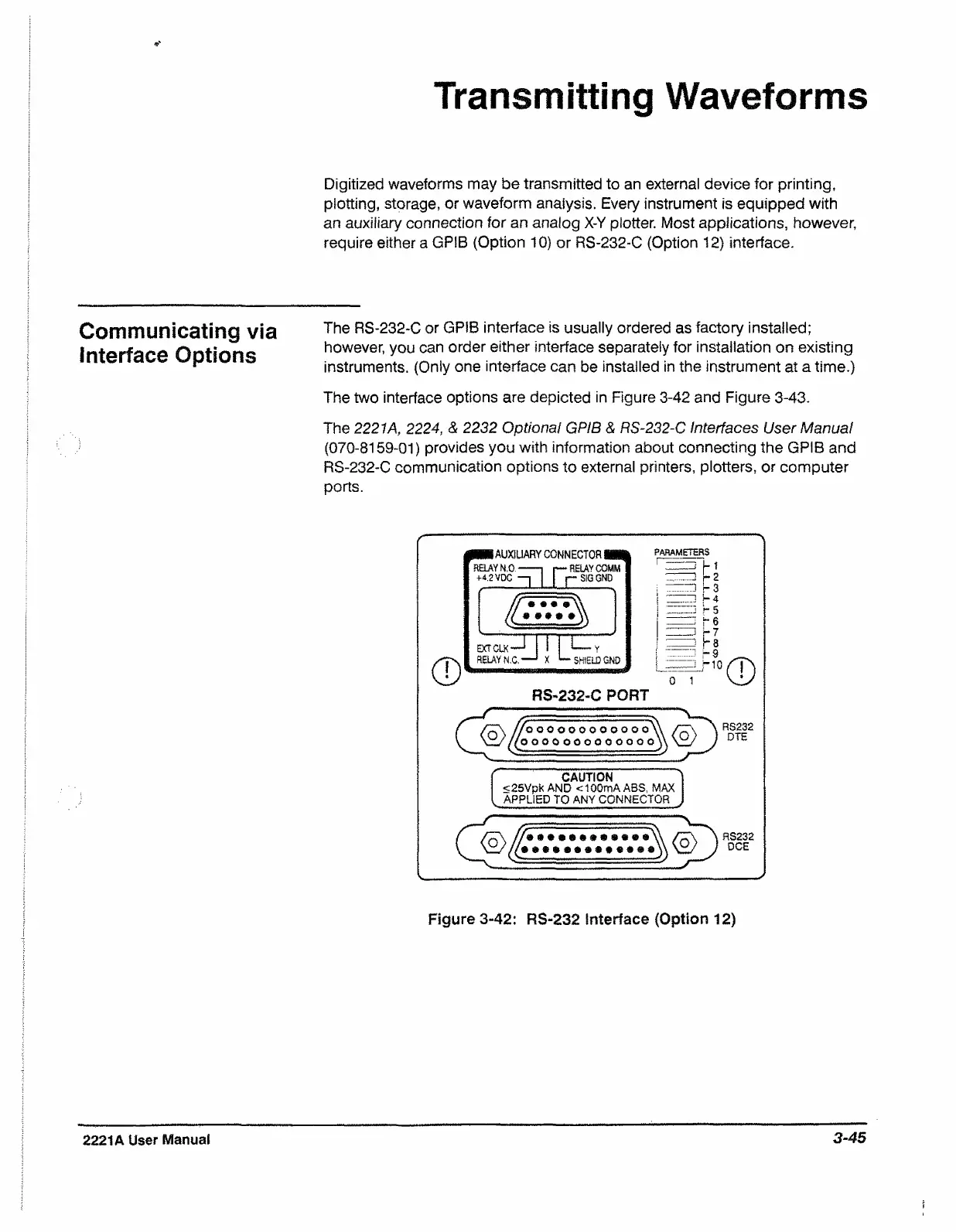

Figure 3-42: RS-232 interface (Option 12)
2221A User Manual
3-45

Tektronix 2221A Specifications

General

Type	Oscilloscope
Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Trigger Modes	Auto, Normal, Single
Display	CRT
Input Impedance	1 MΩ
Maximum Input Voltage	400 V (DC + peak AC)
Weight	7.7 kg
