Tektronix 2221A User Manual

Setup Menus
Plot Menu

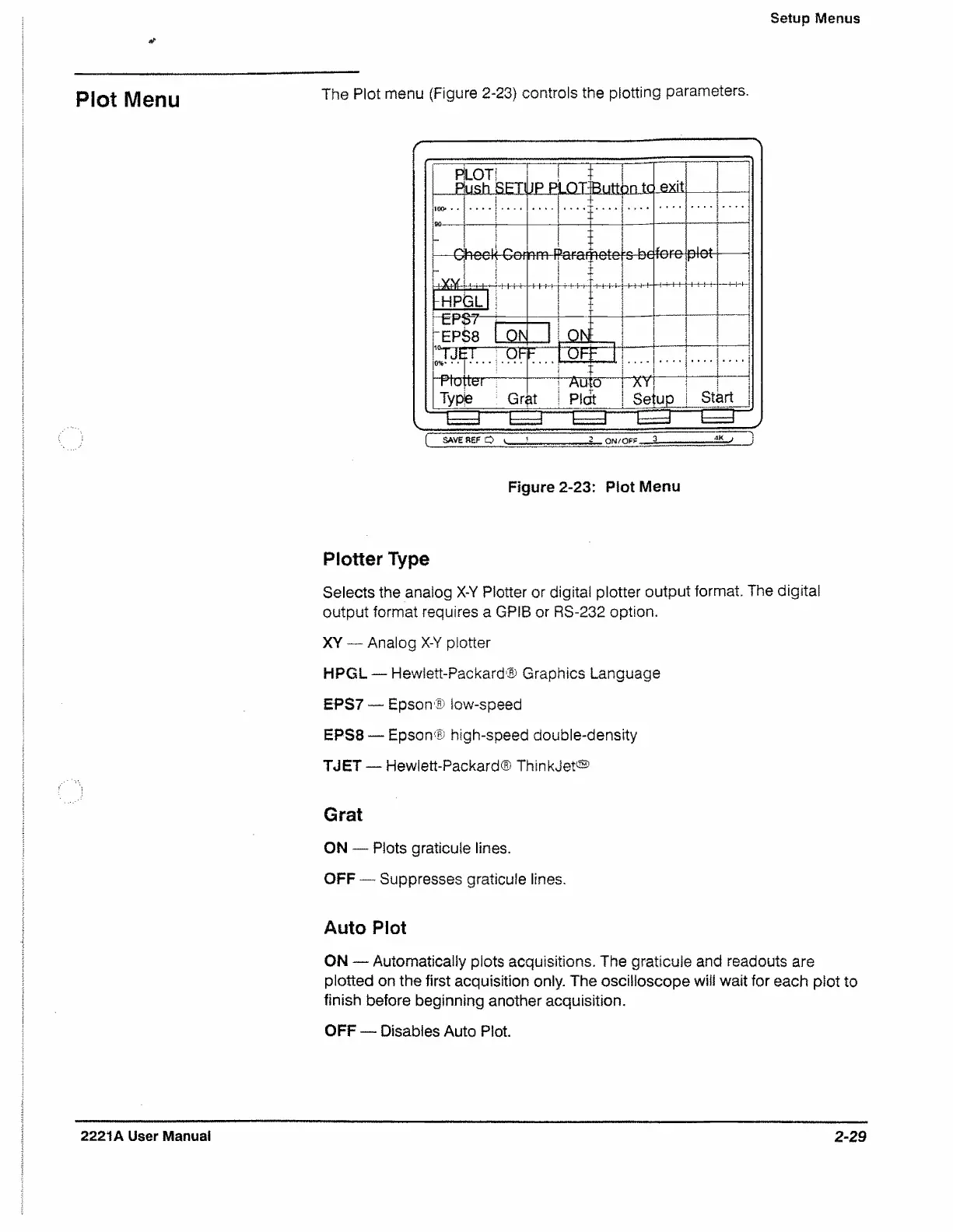

The Plot menu (Figure 2-23} controls the plotting parameters.
r ---------------------- >1
p
P
LOTI
ufih SET!
i :
JP PLOT
Butt
nn tc
exit
I
1
r^QL
-HP
heelfGof
| ;
(wn-faraf
:s-tee
fere
3L
i
j :
hr©/
""EPfeS
op
od
10TJET
! OP
F“ OFf
1 . 1
-rrotter :
Typ^ : Gr
i Au£0
it Plat
’~XT
Se
up
St art
1 | ----- 1 ------ ;—: i ~ | fllzz] ' I I 4
( " SAVE B E f Q I 1 2 _ QN/OFP ~ 7 ~ ............ ......... i i l - > j
Figure 2-23: Plot Menu
Plotter Type
Selects the analog X-Y Plotter or digital plotter output format. The digital
output format requires a GPIB or RS-232 option.
XY — Analog X-Y plotter
HPGL — Hewlett-Packard® Graphics Language
EPS7 — Epson® low-speed
EPS8 — Epson® high-speed double-density
TJET — Hewlett-Packard® ThinkJet®
Grat
ON — Plots graticule lines.
OFF — Suppresses graticule lines.
Auto Plot
ON — Automatically plots acquisitions. The graticule and readouts are
plotted on the first acquisition only. The oscilloscope will wait for each plot to
finish before beginning another acquisition.
OFF — Disables Auto Plot.
2221A User Manual
2-29

Tektronix 2221A Specifications

General

Type	Oscilloscope
Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Trigger Modes	Auto, Normal, Single
Display	CRT
Input Impedance	1 MΩ
Maximum Input Voltage	400 V (DC + peak AC)
Weight	7.7 kg
