Tektronix 465M User Manual

AIR
FORCE
T033A1-13-496-1
NAVELEX
0969-
LP-
170-00
10
Operation
Instructions
(2)
B Delayed
Differential
Time
Measurement
(Figure
4-28).
Use the following
procedure
to make dif-
ferential
time measurements
using the
B
DLY'D
mode;
(a)
Set A TIME/DIV
and horizontal
POSITION
control to locate both time
measurement
points within
graticule area (see Figure
4-28A).
(b)
Set HORIZ DISPLAY
to A
INTEN
and
B
SOURCE
to STARTS AFTER
DELAY.
(c)
Pull
out and set B TIME/DIV
for the
shortest
usable intensified
display zone.
(d) Turn DELAY TIME
POS
so
that
first time
measurement point
(point A)
is
in
center
of intensified
zone.
(e) Set HORIZ DISPLAY
to B
DLY'D.
(f) Slightly reset DELAY TIME POS
to move
first
time measurement point
to
the closest
vertical
graticule
line
(see
Figure
4-28B). Note DELAY TIME POS
(1st
DTP
setting) setting.
(g)
Set HORIZ
DISPLAY
to
A
INTEN.
(h)
Repeat step
(d) for
the
second time
measure-
ment
point
(Point
B).
(i) Set HORIZ DISPLAY
to B
DLY'D.
(j)
Slightly reset DELAY TIME
POS
to
move
second
time
measurement point
to the
same
vertical grati-
cule
line used in
step
(f).
Note DELAY TIME
POS (2nd
DTP
setting)
setting.
A.
A INTENSIFIED
DISPLAY
_
VERTICAL
1 REFERENCE
LINE
B.
B DELAYED
DISPLAY
example:
2ND DTP
_
1ST DTP „
A TIME/DIV
TIME
SETTING
SETTING
SETTING
“
DIFFERENCE
.2
0.938
5.57
-
0.88 X
MICROSECONDS
MILLISECONDS

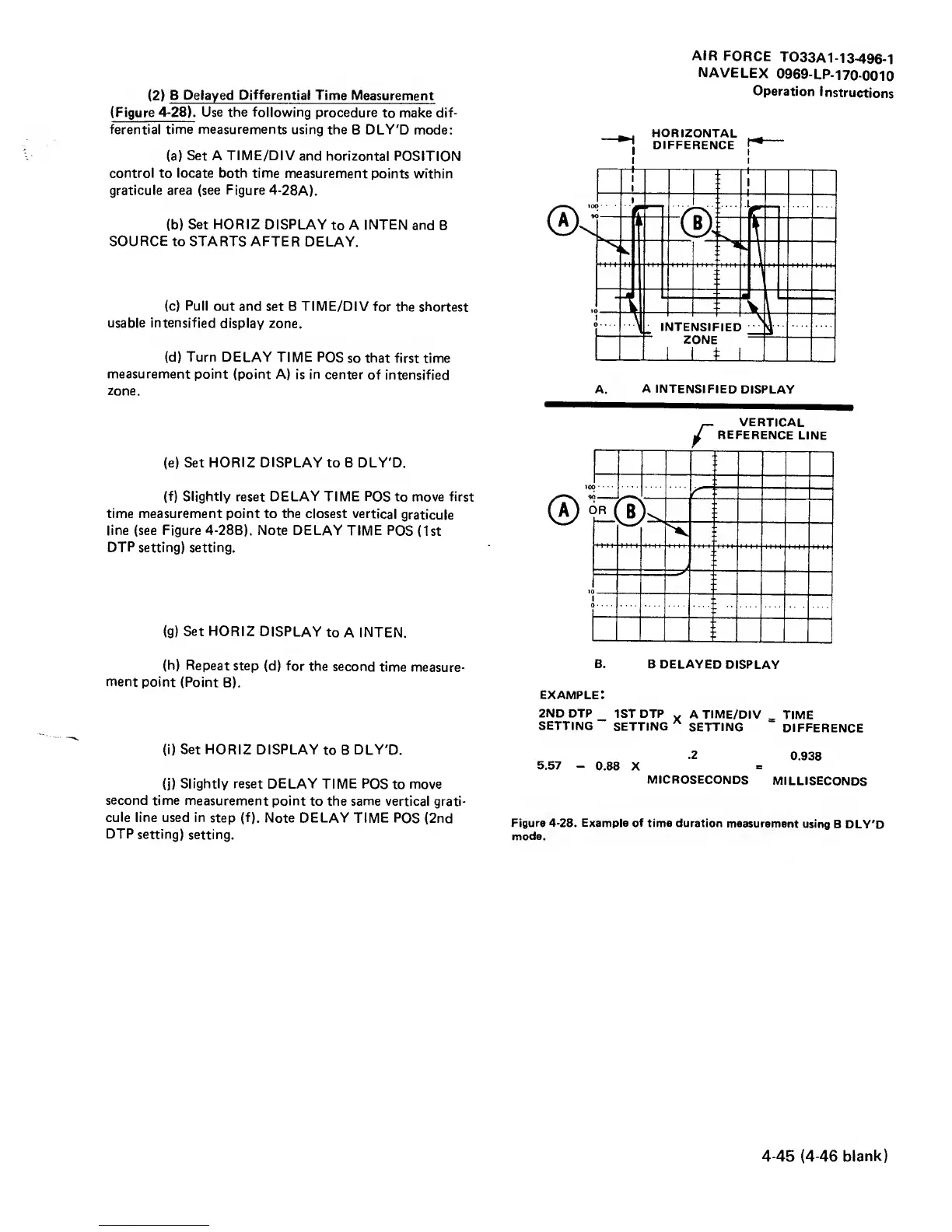

Figure
4-28.
Example of time
duration
measurement
using
B
DLY'D
mode.
4-45 (4-46 blank)
