Waveform Displa
y and Edit

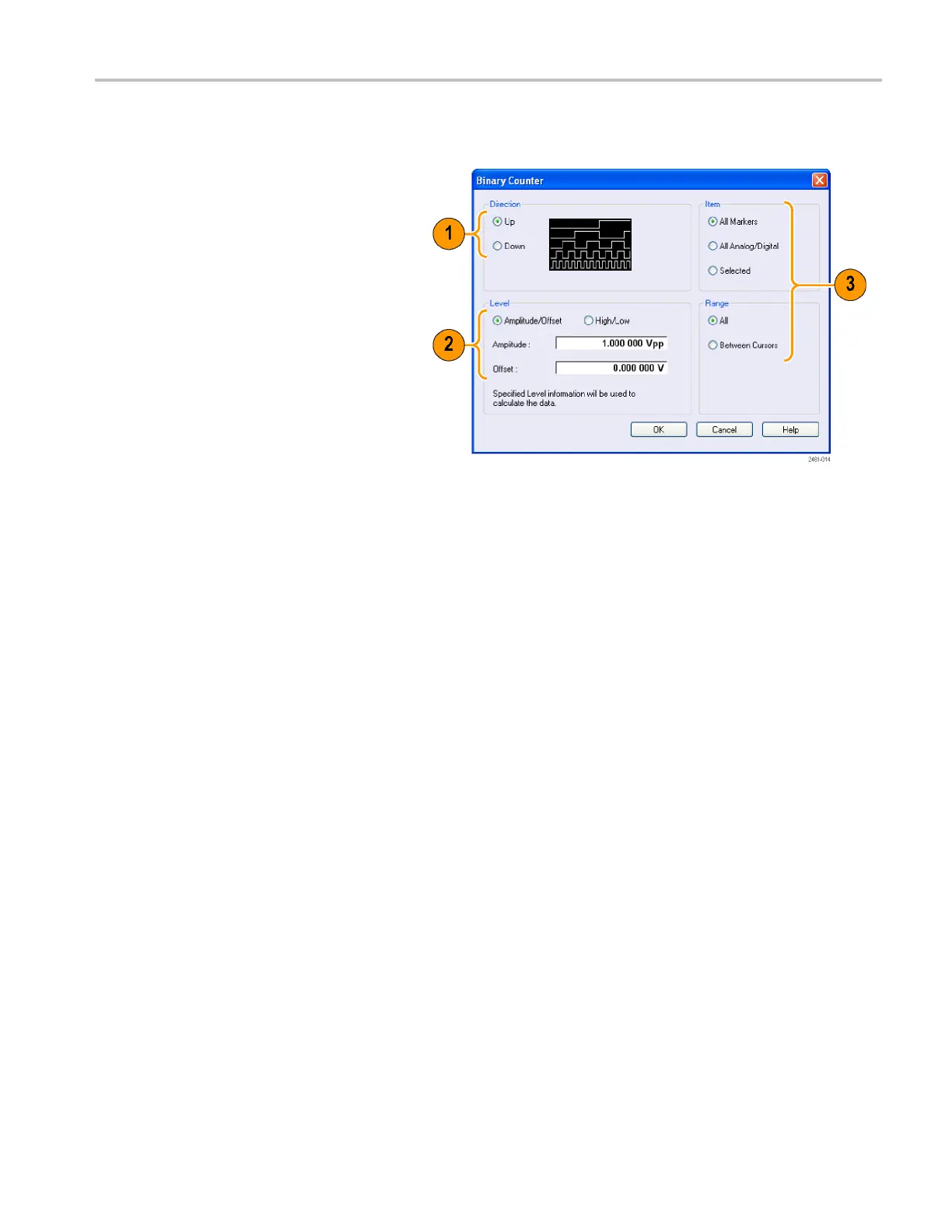

Binary Counter. You can fill the specified range of data with a binary c ounter pattern using Binary Counter from the Edit >
Modify Pattern
menu.
1. You can select the direction (Up counter
or Down counte
r).
The up counter begins from all 0, and the
down counter begins from all 1.
2. Change the Level parameters, if needed.
3. Select the Item and Range.
AWG5000 and AWG7000 Series Quick Start User Manual 67
