Tektronix DPO3000 Series User Manual

Analyze Waveform Data
Zooming a Waveform

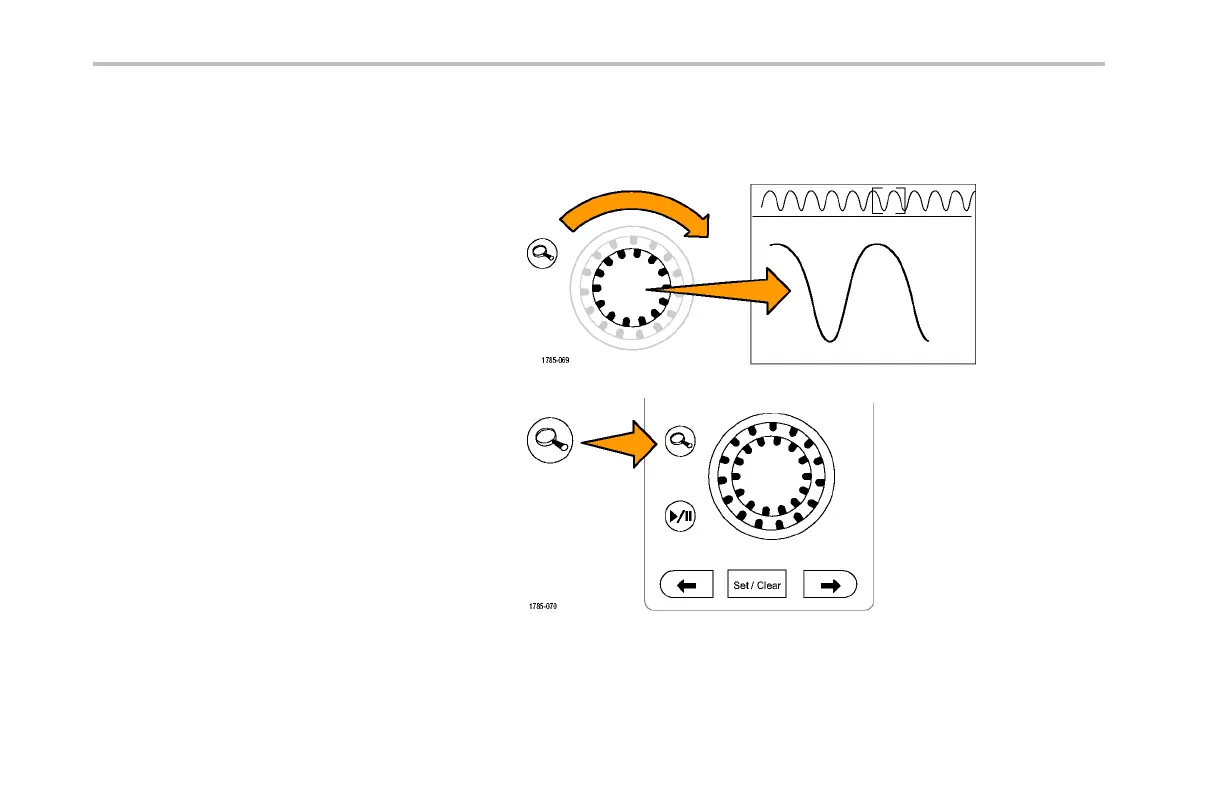

To use zoom:
1. Rotate the inner knob on the Pan-Zoom
control clockwise to zoom in on a selected
portion of the waveform. Rotate the knob
counterclockwise to zoom back out.
2. Alternatively, ena ble or disable the zoom
mode by pushing the zoom bu tton.
190 DPO3000 Series Oscilloscopes User Ma nual
