Application
E
xamp
les

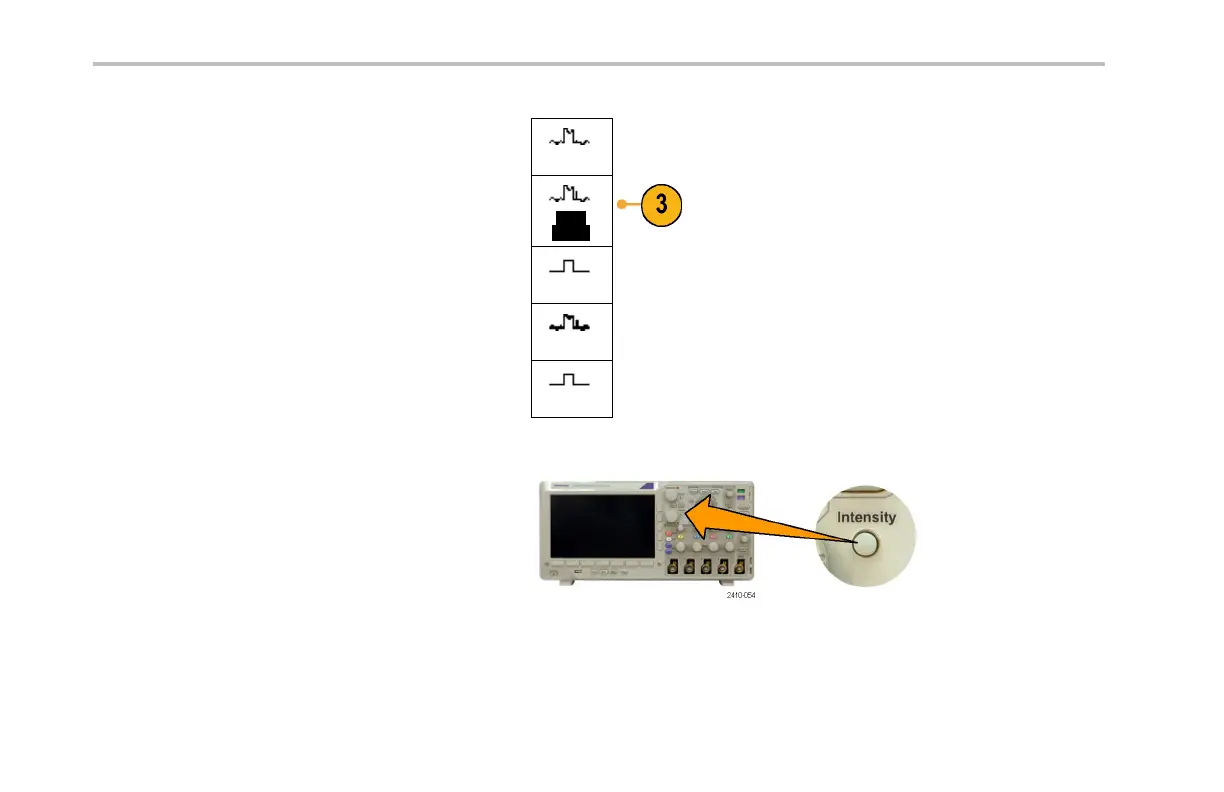

3.
Push
Peak
Detect
on
the
side
-bezel
menu.
Sample
Peak
Detect
Hi
Res
Envelope
Average
4.
Push
Inten
sity
and
turn
multipurpose
knob
a
to
see
the
noise
more
easily
.
242
DPO3000
Series
Oscilloscopes
User
Ma
nual
257
259
Table of Contents
Table of Contents
5
General Safety Summary
9
Environmental Considerations
12
Preface
14
Key Features
14
Conventions Used in this Manual
15
Before Installation
17
Operating Considerations
24
Connecting Probes
29
Securing the Oscilloscope
31
Powering on the Oscilloscope
32
Powering off the Oscilloscope
34
Functional Check
35
Compensating a Passive Voltage Probe
38
Application Module Free Trial
40
Installing an Application Module
41
Changing the User Interface Language
42
Changing the Date and Time
44
Signal Path Compensation
46
Upgrading Firmware
49
Connecting Your Oscilloscope to a Computer
56
Connecting a USB Keyboard to Your Oscilloscope
64
Get Acquainted with the Instrument
65
Front-Panel Menus and Controls
65
Front-Panel Connectors
88
Side-Panel Connector
89
Rear-Panel Connectors
90
Acquire the Signal
92
Setting up Analog Channels
92
Using the Default Setup
99
Using Autoset
100
Acquisition Concepts
101
How the Analog Acquisition Modes Work
104
Changing the Acquisition Mode, Record Length, and Delay Time
106
Using Roll Mode
109
Setting up a Serial Bus
111
Trigger Setup
123
Triggering Concepts
123
Choosing a Trigger Type
130
Selecting Triggers
132
Triggering on Buses
137
Checking Trigger Settings
146
Using Sequence Trigger, a (Main) and B (Delayed)
147
Starting and Stopping an Acquisition
151
Display Waveform Data
152
Adding and Removing a Waveform
152
Setting the Display Style and Persistence
152
Setting Waveform Intensity
159
Scaling and Positioning a Waveform
160
Setting Input Parameters
162
Positioning and Labeling Bus Signals
167
Annotating the Screen
169
Analyze Waveform Data
171
Taking Automatic Measurements
171
Selecting Automatic Measurements
173
Customizing an Automatic Measurement
179
Taking Manual Measurements with Cursors
187
Using Math Waveforms
193
Using FFT
196
Using Advanced Math
200
Using Reference Waveforms
203
Using Wave Inspector to Manage Long Record Length Waveforms
205
Save and Recall Information
215
Saving a Screen Image
219
Saving and Recalling Waveform Data
220
Saving and Recalling Setups
225
Saving with One Button Push
228
Printing a Hard Copy
230
Erasing Oscilloscope Memory
239
Using Application Modules
242
Application Examples
243
Taking Simple Measurements
243
Analyzing Signal Detail
256
Triggering on a Video Signal
265
Capturing a Single-Shot Signal
271
Correlating Data with a TLA5000 Logic Analyzer
277
Tracking down Bus Anomalies
279
Troubleshooting an RS-232 Bus
284
Appendix: Warranted Specifications, Safety Certifications, and Electromagnetic Compatibility
289
