Performance Tests
Performance Verification
4Ć74

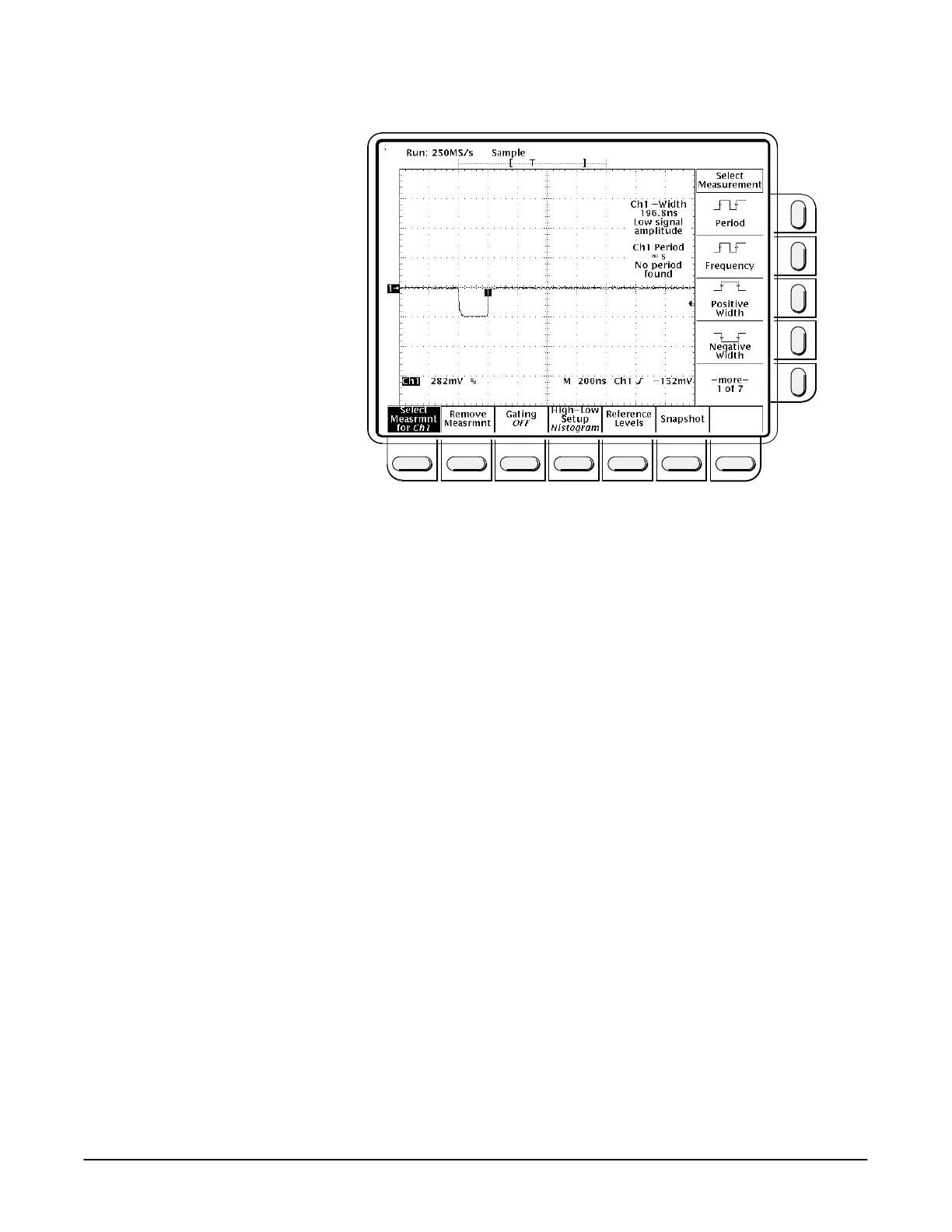

Figure 4Ć40:ăSync Duty Cycle Test: OneĆDiv Neg Pulse Waveform
H " ! " ! PULSE DURATION # ! !
" ! ! !# " ! CH1 - Width
"! % 400ns +/-10 ns
H " ! HORIZONTAL SCALE ! ! ! !
! 5 ms/div
H " ! " ! # ! ! " ! !
"! ! CH1 Period "!
21.000ms -25/+50 ns " & ! $
$
NOTE
The pulse duration and period adjustments are critical in making this
measurement. If the pulse duration and/or the duty cycle are not
stable, the FLEXFMT function may not function. You must take care
when making these adjustments.
