Removal and Installation Procedures
TDS 520A, 524A, 540A, & 544A Service Manual
6Ć13
Analog and Digital
Power Cables
A14 D1 Bus
Rear Chassis
Fan
A10
Acquisition
Board
A15
Attenuator
Assembly
Top Cover
Board Bracket
A23 SerPar Board
A11 DRAM
Processor/Display
Board

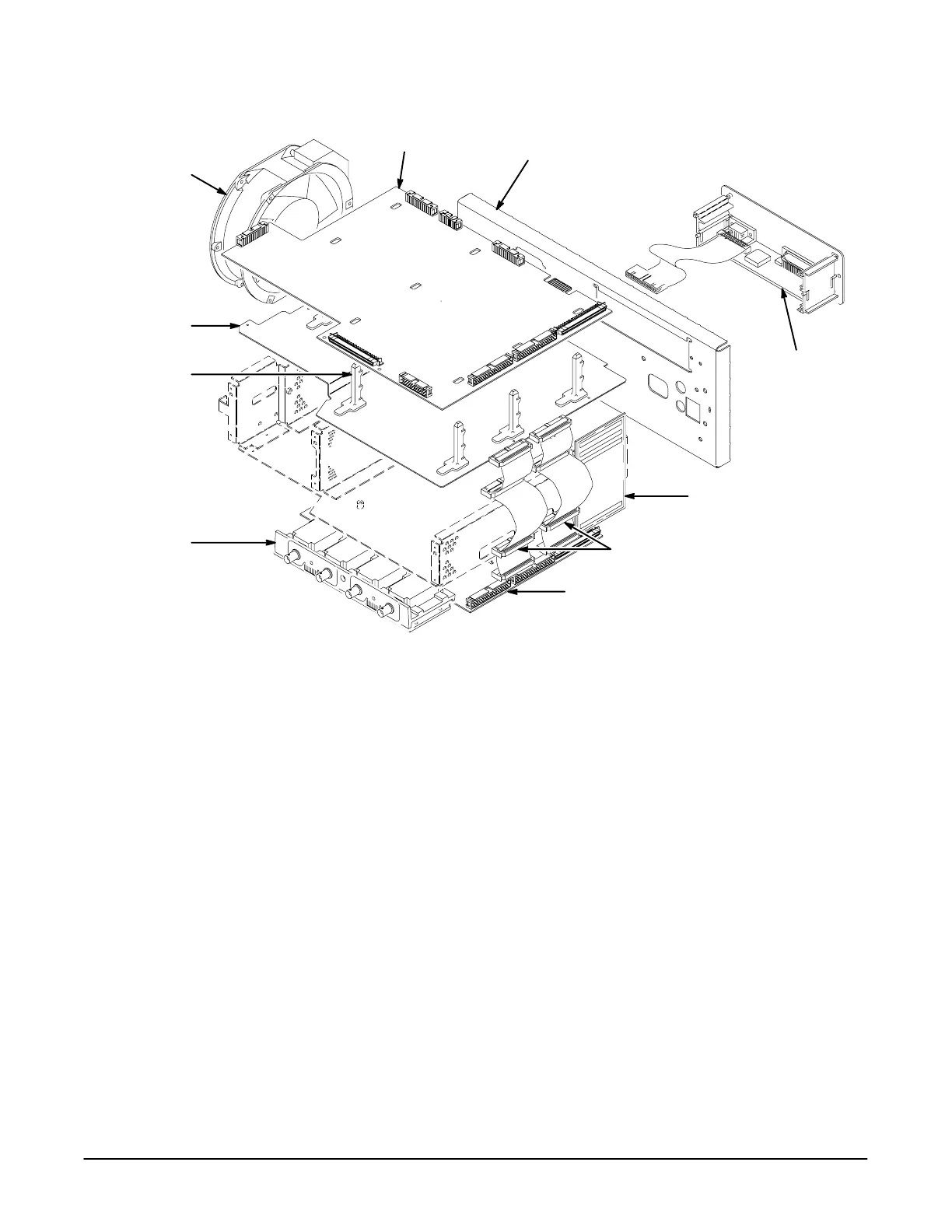

Figure 6Ć2:ăOuterĆChassis Modules
