Acquiring and Displaying Waveforms
3–52
TDS 500D, TDS 600B, & TDS 700D User Manual

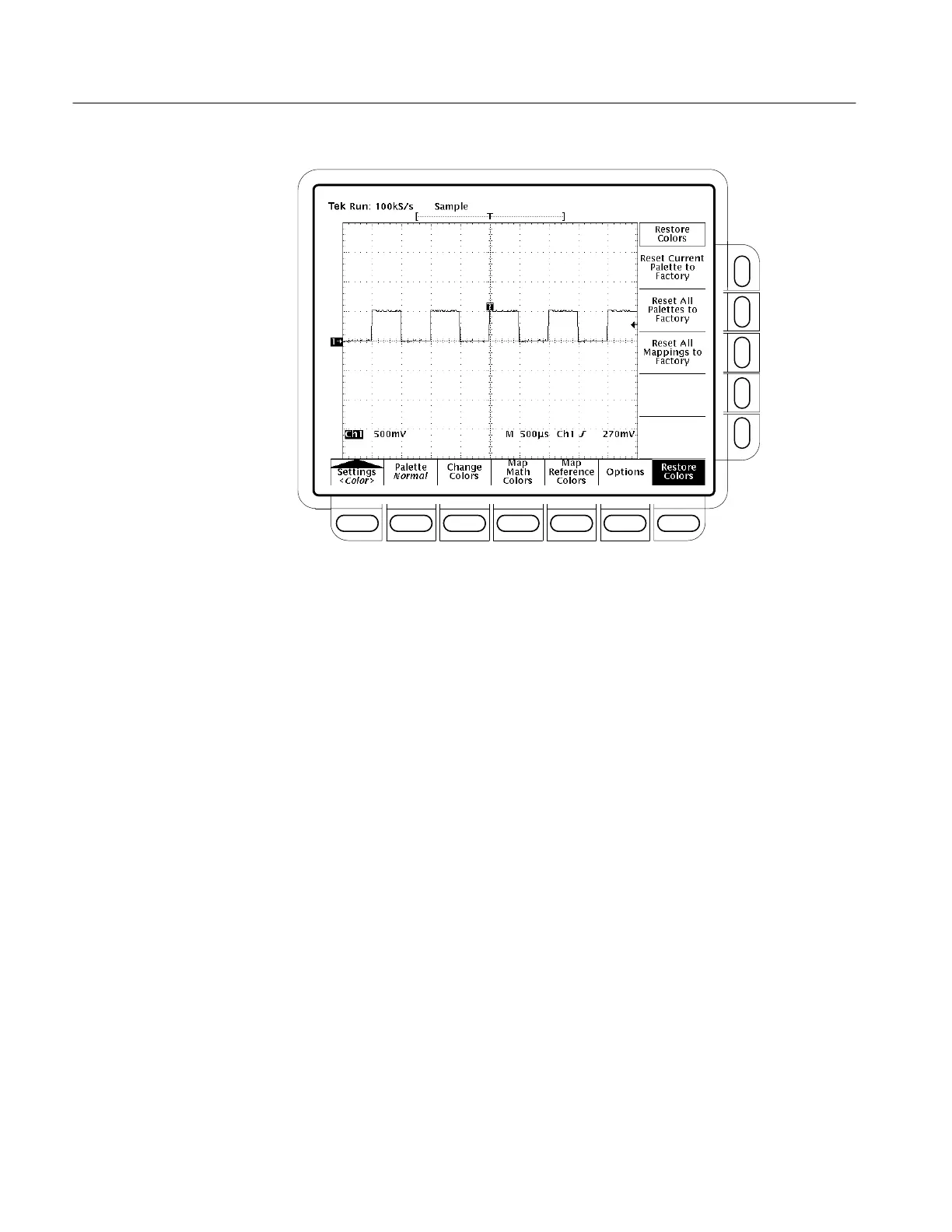

Figure 3–24: Display Menu — Restore Colors
To define the method to map acquisition-database values to display indices
(TDS 500D and 700D models only) do the following steps:
1. Press the Options Restore main menu item.
2. Toggle Color Mapping to Intensity or Percentages in the side menu to
map values in intensity or percentage values.
Intensity allows you to control the intensity using the DPO Brightness and
Contrast menu items (see page 3–63). Percentages allows you to set the
Color Mapping percentages in the Map Colors menu.
To set the percentages that map the acquisition-database values to display indices
(TDS 500D and 700D models only), do the following steps:
1. Press the Percentage Color Mapping main menu item.
2. Toggle Color Index (side) to the color index range to be adjusted.
3. Press Min Percentage (side). Then use the general purpose knob or keypad
to set the lower limit percentage of the selected color index.
To return to the factory defaults, select Reset to Factory.
Select Color Mapping
Percentage Color Mapping
