Acquiring and Displaying Waveforms
3–26
TDS 500D, TDS 600B, & TDS 700D User Manual
Percentage of
acquisition data before
start of the waveform
record
End of waveform record
Trigger point
Start of waveform record

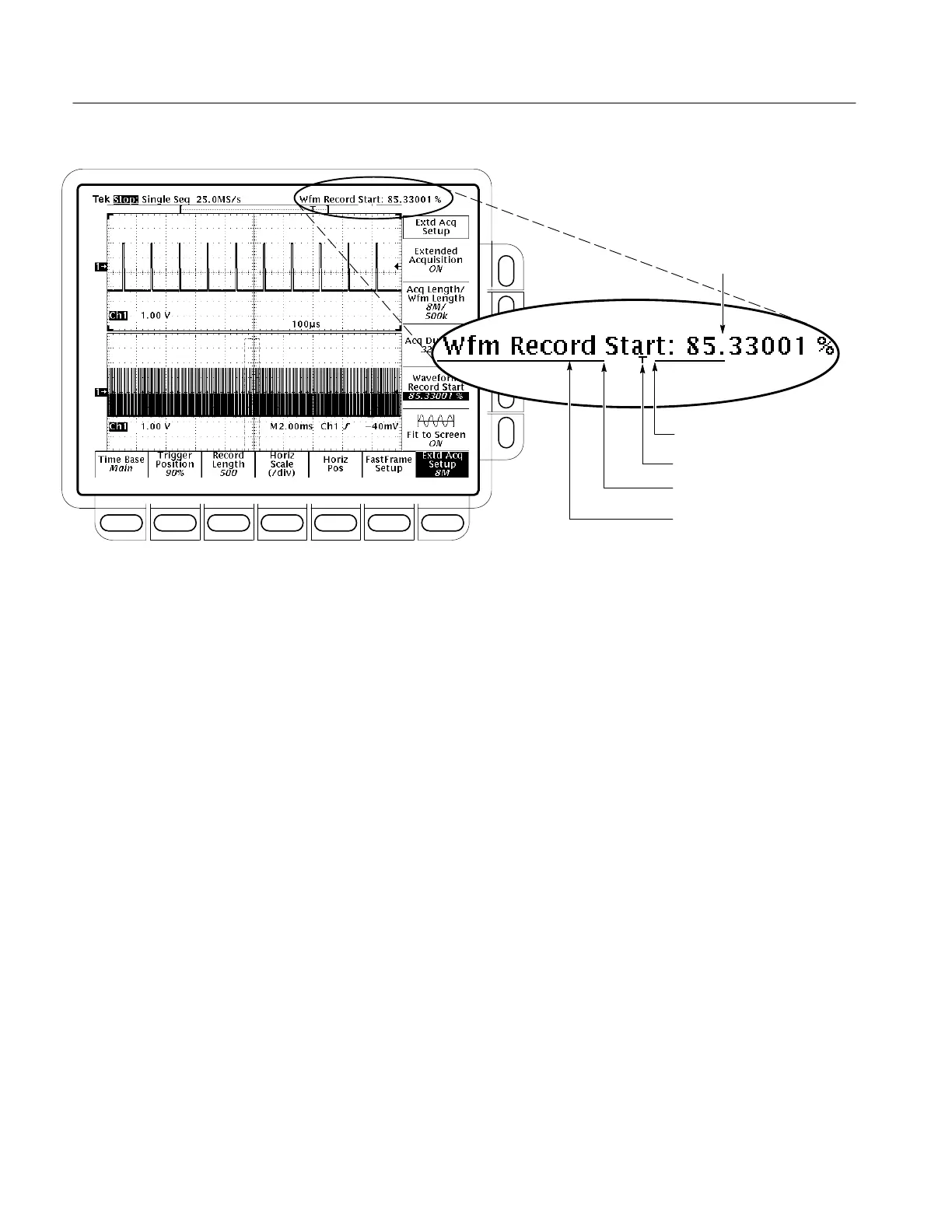

Acquisition record waveform
Figure 3–10: Extended Acquisition Length and Zoom
To perform tutorials that teach selecting, scaling, and positioning of waveforms,
see Example 1: Displaying a Waveform on page 2–13 and Example 2: Displaying
Multiple Waveforms on page 2–17.
To learn how to use delay with waveforms, see Delayed Triggering on
page 3–117. To learn how to magnify waveforms, see Zooming on Waveforms,
on page 3–53.
To Find More Information
